Rocket 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

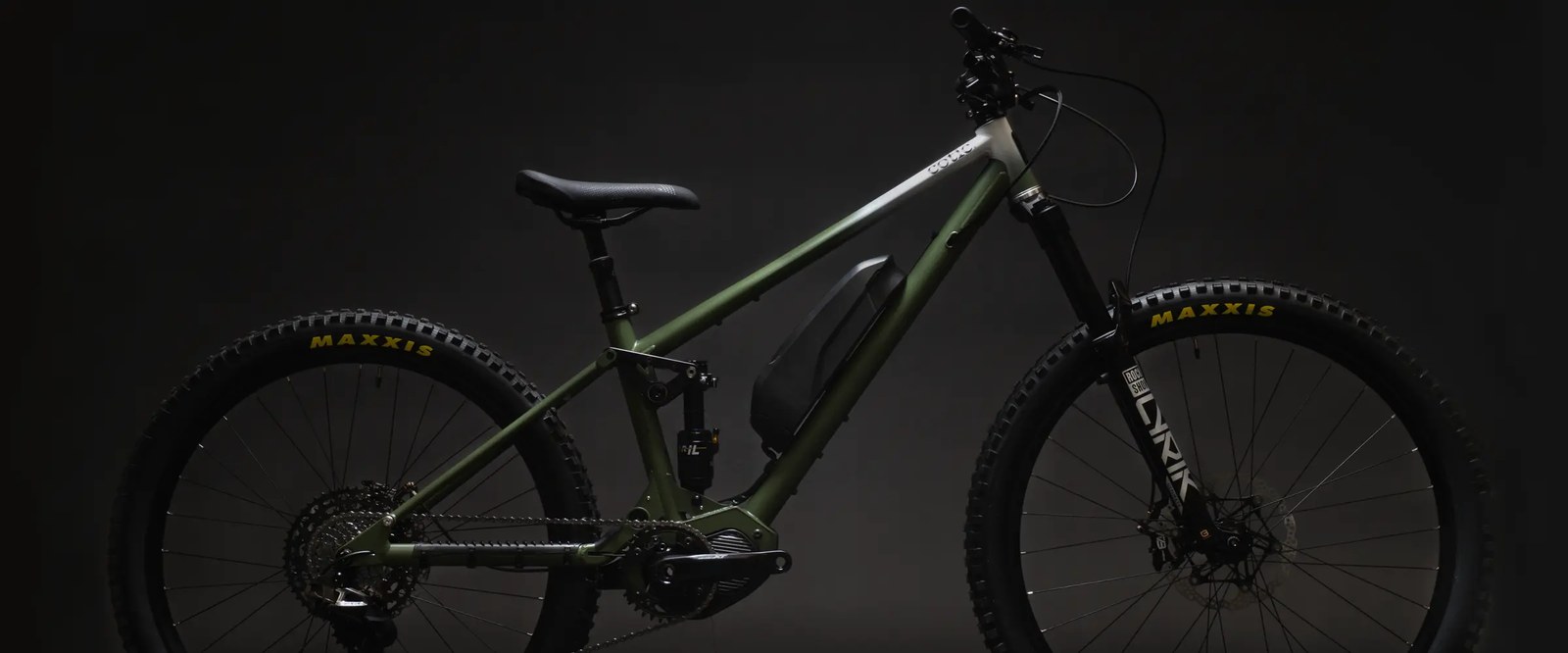

The Cotic Rocket is the brand's first e-bike and is billed as the world's first high performance steel eMTB, handbuilt in the UK from a Reynolds 853 and motorsport-grade T45 steel front triangle with a 6082-T6 aluminium swingarm. It runs 150mm of Rocklink rear travel with a dedicated mixed wheel (29 front / 27.5 rear) layout, and a modular fork setup means the same frame covers Trail (150mm fork, 64.5 degree head angle) or Enduro (160mm fork, 64 degree head angle).
The defining choice is the external down-tube battery: a hot-swap Shimano pack available in 418, 504 or 630Wh, paired with the full-power Shimano EP801 motor (85Nm, up to 600W). Cotic uses the external battery to keep the down tube slim for steel ride feel and to let riders trade range against weight, with complete bikes shipping on the 504Wh pack and Cotic quoting a prototype at around 21.5kg with the lighter 418Wh battery.
It sells direct as a frameset from 6,099 GBP or as complete builds: Trail / Bronze at 7,599 GBP (RockShox Revelation, Magura MT5, Shimano Cues Linkglide 1x11, Halo wheels), Trail and Enduro / Gold at 8,899 GBP (Lyrik or Zeb Ultimate, Shimano XT, Hope Fortus wheels, Magura MT7 Pro), and Trail and Enduro / Platinum at 11,449 GBP (Fox Factory 36 or 38, XTR Di2 wireless, Hope Tech4 brakes and carbon cockpit, Reserve wheels). The frame uses Cotic's Longshot geometry with a short 35mm stem and C1 to C5 sizing, and was named Singletrack World's eMTB of the Year 2025.
Geometry · hover a row to highlight the measurement on the bike
| C1 | C2 | C3 | C4 | C5 | |
|---|---|---|---|---|---|
| Reach | 438 mm | 457 mm | 476 mm | 495 mm | 514 mm |
| Stack | 635 mm | 644 mm | 653 mm | 662 mm | 671 mm |
| Seattube | 380 mm | 407 mm | 435 mm | 450 mm | 465 mm |
| Chainstay | 450 mm | 450 mm | 456 mm | 456 mm | 456 mm |
| Headtube Angle | 64° | 64° | 64° | 64° | 64° |
| Seattube Angle (eff) | 76° | 76° | 76.5° | 76.5° | 76.5° |
| Wheelbase | 1231 mm | 1254 mm | 1283 mm | 1306 mm | 1330 mm |
| Headtube | 100 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| Front Centre | 781 mm* | 804 mm* | 827 mm* | 850 mm* | 874 mm* |
Trims · 9
Frameset £6,099 | Bronze £7,599 | Trail / Bronze £7,599 | Enduro / Gold £8,899 | Gold £8,899 | Trail / Gold £8,899 | Enduro / Platinum £11,449 | Platinum £11,449 | Trail / Platinum £11,449 | |
|---|---|---|---|---|---|---|---|---|---|
| Motor | Shimano EP801 · 85 Nm · all trims | ||||||||
| Battery | Shimano STEPS external down-tube battery · 504 Wh · all trims | ||||||||
| Travel F/R | 150/150 mm · all trims | ||||||||
| Frame | Reynolds 853 / T45 steel front triangle and seat stays, aluminium chainstays | Reynolds 853 / T45 steel front triangle and seat stays, aluminium chainstays | Reynolds 853 and T45 steel front triangle and seatstays with 6082-T6 aluminium swingarm | Reynolds 853 and T45 steel front triangle and seatstays with 6082-T6 aluminium swingarm | Reynolds 853 / T45 steel front triangle and seat stays, aluminium chainstays | Reynolds 853 and T45 steel front triangle and seatstays with 6082-T6 aluminium swingarm | Reynolds 853 and T45 steel front triangle and seatstays with 6082-T6 aluminium swingarm | Reynolds 853 / T45 steel front triangle and seat stays, aluminium chainstays | Reynolds 853 and T45 steel front triangle and seatstays with 6082-T6 aluminium swingarm |
| Fork | — | — | Rock Shox Revelation MC 29 - 150mm | Rock Shox Zeb 29 Ultimate Charger 3.1 RC2 Gloss Black - 160mm | RockShox Ultimate (Lyrik Ultimate at 150mm or Zeb Ultimate at 160mm) | Rock Shox Lyrik D2 29 Ultimate Charger 3.1 RC2 Gloss Black - 150mm | Fox 38 Factory Kashima GRIP X2 - 160mm Black | Fox Factory | Fox 36 Factory Kashima GRIP X - 150mm Black |
| Shock | Frame, shock and drive system package | Cane Creek DB Air IL | Rockshox Deluxe Ultimate 185x55 Trunnion | Cane Creek DB Air IL G2 185x55 Trunnion | Cane Creek DB Air IL | Cane Creek DB Air IL G2 185x55 Trunnion | Fox Float X2 Factory 185x55 Trunion | Fox Factory | Fox Float X Factory 185x55 Trunion |
| Headset | — | — | Cane Creek Headset 40 Series ZS44/EC44 | Hope 2H for tapered steerer (black) | — | Hope 2H for tapered steerer (black) | Hope 2H for tapered steerer (black) | — | Hope 2H for tapered steerer (black) |
| Stem | — | — | Cotic SHORTERSTEM - 35mm | Cotic SHORTERSTEM - 35mm | — | Cotic SHORTERSTEM - 35mm | Hope Gravity 35mm Stem 31.8mm Clamp (black) | — | Hope Gravity 35mm Stem 31.8mm Clamp (black) |
| Handlebar | — | — | Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black) | Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black) | — | Cotic Calver Bars - 780 x 25 rise, 5deg up, 9deg back (black) | Hope Carbon Bar 800 x 20mm Rise 31.8 Clamp | — | Hope Carbon Bar 800 x 20mm Rise 31.8 Clamp |
| Grips | — | — | Cotic Lockon grips | Cotic Lockon grips | — | Cotic Lockon grips | Cotic Lockon grips | — | Cotic Lockon grips |
| Saddle | — | — | WTB Rocket Cromoly Saddle | WTB Rocket Cromoly Saddle | — | WTB Rocket Cromoly Saddle | WTB Rocket Cromoly Saddle | — | WTB Rocket Cromoly Saddle |
| Seatpost | — | — | SDG Tellis V2 31.6 Seatpost 170mm drop | SDG Tellis V2 31.6 Seatpost 170mm drop | — | SDG Tellis V2 31.6 Seatpost 170mm drop | SDG Tellis V2 31.6 Seatpost 170mm drop | — | SDG Tellis V2 31.6 Seatpost 170mm drop |
| Brakes | — | — | Pair of Magura MT5 4 piston brakes | Magura Storm HC rotors 203/203 6bolt | Pair of Magura MT7 Pro 4 piston brakes | Magura Storm HC rotors 203/203 6bolt for Zeb forks | Magura MT7 | Pair of Magura MT7 Pro 4 piston brakes | Magura MDR-C rotors 203/203 6bolt | Pair of Hope Tech4 Evo GR4 Brakes Black/Black | Hope standard (non-floating) rotors 220/203 6bolt for Zeb forks | Hope | Pair of Hope Tech4 Evo TR4 Brakes Black/Black | Hope standard (non-floating) rotors 203/203 6bolt |
| Rear derailleur | — | — | Cues ebike 1x11 Linkglide Drivetrain | XT ebike 1x11 Linkglide Drivetrain | Shimano Deore XT 1x12 | XT ebike 1x12 Drivetrain | XTR ebike Di2 Wireless Drivetrain 1x11 Linkglide | Shimano Deore XT Di2 Linkglide electronic, with Autoshift and Freeshift | XTR ebike Di2 Wireless Drivetrain 1x11 Linkglide |
| Crank | Shimano XT cranks and chainring | — | — | — | Shimano XT | — | — | — | — |
| Drivetrain | Shimano XT cranks and chainring | — | Cues ebike 1x11 Linkglide Drivetrain | XT ebike 1x11 Linkglide Drivetrain | Shimano Deore XT 1x12; Shimano XT | XT ebike 1x12 Drivetrain | XTR ebike Di2 Wireless Drivetrain 1x11 Linkglide | Shimano Deore XT Di2 Linkglide electronic, with Autoshift and Freeshift | XTR ebike Di2 Wireless Drivetrain 1x11 Linkglide |
| Wheels | — | — | Halo Ridgeline 2 Mullet 11spd HG | Hope Fortus30 SC Mullet 12spd Microspline (black hubs) | Hope wheels | Hope Fortus30 SC Mullet 12spd Microspline (black hubs) | Reserve Aluminum Mullet Wheels with Swiss DT350 11spd HG hubs | Reserve wheels | Reserve Aluminum Mullet Wheels with Swiss DT350 12spd microspline hubs |
| Tyres | — | — | WTB 29 Vigilante 2.6 Light High Grip and 275 Trail Boss 2.6 Tough Fast | Maxxis EXO+ Assegai 29x2.5 DHRII 27.5x2.6 MaxxTerra | Maxxis | Maxxis EXO+ Assegai 29x2.5 DHRII 27.5x2.6 MaxxTerra | Maxxis EXO+ Assegai 29x2.5 DHRII 27.5x2.6 MaxxTerra | Maxxis | Maxxis EXO+ Assegai 29x2.5 DHRII 27.5x2.6 MaxxTerra |
| Price | £6,099 | £7,599 | £7,599 | £8,899 | £8,899 | £8,899 | £11,449 | £11,449 | £11,449 |
