Neuron:ONfly 2024
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

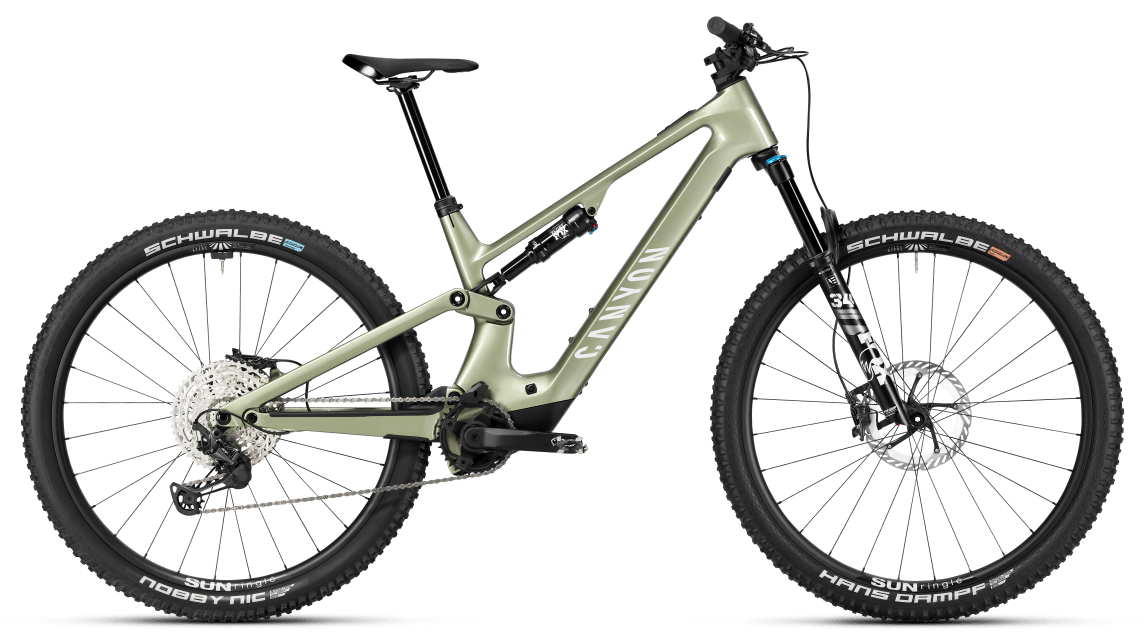

The Neuron:ONfly was Canyon's first lightweight e-MTB and the mid-power sibling to the full-power Neuron:ON CF. It pairs a 140 mm carbon trail chassis with the compact Bosch Performance Line SX motor (55 Nm, 600 W peak) and a downtube-integrated 400 Wh CompactTube battery, with an optional PowerMore 250 Wh range extender. The geometry is moderate trail rather than aggressive enduro: a 64.5 degree head angle, 76.5 degree seat angle, 450 mm chainstays across all five sizes and reach from 410 mm (XS) to 510 mm (XL), with the XS dropping to 130 mm travel and a narrower bar.
The four-trim range climbs steeply on value. The CF 7 (£4,499) runs a RockShox Pike, Shimano Deore 12-speed and SRAM Code R brakes at a claimed 20.3 kg. The CF 8 (£5,199) is the sensible mid-spec with a Fox 34 Performance, Shimano XT four-piston brakes and a 19.6 kg claimed weight. The CF 9 (£6,499) moves to a Pike Ultimate, SRAM GX Eagle AXS Transmission and DT Swiss HX1700 wheels. The CF LTD (£7,449) tops out with a Fox 34 Factory, SRAM XX Eagle AXS, Code Ultimate brakes and Reynolds carbon wheels for a claimed 19.1 kg.
All trims share the same carbon frame, Bosch SX motor, 400 Wh battery, Schwalbe Hans Dampf front / Nobby Nic rear tyres and 200 mm rotors, so the price difference is suspension, drivetrain, brakes and wheels rather than capability. The CF 8 stands out as the value pick.
This is a discontinued 2024 model. Canyon has since continued the Neuron:ONfly line with updated Bosch SX builds, so later model-year versions supersede it, but the 2024 platform, motor and geometry described here are the launch configuration.
Geometry · hover a row to highlight the measurement on the bike
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Reach | 410 mm | 435 mm | 460 mm | 485 mm | 510 mm |
| Stack | 608 mm | 626 mm | 635 mm | 644 mm | 653 mm |
| Seattube | 392 mm | 405 mm | 415 mm | 445 mm | 455 mm |
| Chainstay | 450 mm | 450 mm | 450 mm | 450 mm | 450 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Seattube Angle (eff) | 76.5° | 76.5° | 76.5° | 76.5° | 76.5° |
| Wheelbase | 1179 mm | 1213 mm | 1242 mm | 1271 mm | 1301 mm |
| Headtube | 110 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| BB Height | 338 mm | 338 mm | 338 mm | 338 mm | 338 mm |
| Standover | 757 mm | 767 mm | 770 mm | 775 mm | 779 mm |
| Front Centre | 729 mm* | 763 mm* | 792 mm* | 821 mm* | 851 mm* |
Trims · 4
CF 7 £4,499 | CF 8 £5,199 | CF 9 £6,499 | CF LTD £7,449 | |
|---|---|---|---|---|
| Motor | Bosch Performance Line SX · 55 Nm · all trims | |||
| Battery | Bosch CompactTube 400 · 400 Wh · all trims | |||
| Travel F/R | 140/140 mm · all trims | |||
| Frame | Carbon · all trims | |||
| Fork | RockShox Pike, 140 mm travel, 1 1/8"-1.5" steerer | Fox 34 Performance, 34 mm stanchions, 140 mm travel, 44 mm offset | RockShox Pike Ultimate, 140 mm travel, 44 mm offset | Fox 34 Factory, 140 mm travel, 15x110 mm, 44 mm offset |
| Shock | RockShox Deluxe Select+, 140 mm travel | Fox Float DPS Performance, 140 mm travel | RockShox Deluxe Select+, 140 mm travel | Fox Float DPS Factory, 140 mm travel |
| Headset | Acros Block Lock · all trims | |||
| Stem | Canyon:ON ST0031, 45 mm, 35.0 mm clamp, aluminium · all trims | |||
| Handlebar | Canyon:ON HB0056 riser bar, aluminium, 760 mm width, 20 mm rise, 35.0 mm clamp · all trims | |||
| Grips | Canyon Lock-On · all trims | |||
| Saddle | Fizik Terra Alpaca X5 | Fizik Terra Alpaca X5 | Fizik Terra Aidon X5 | Fizik Terra Aidon X5 |
| Seatpost | Canyon SP0070-01 dropper, cable-actuated, 34.9 mm, travel size-dependent · all trims | |||
| Brakes | SRAM Code R, 4-piston hydraulic disc | Shimano Deore XT M8120, 4-piston hydraulic disc | SRAM Code Silver Stealth, 4-piston hydraulic disc | SRAM Code Ultimate Stealth, 4-piston hydraulic disc |
| Rear derailleur | Shimano Deore M6100, 12-speed, long cage | Shimano Deore XT M8100, long cage | SRAM GX Eagle AXS Transmission | SRAM XX Eagle AXS Transmission |
| Crank | FSA CK-745, 170 mm | FSA CK-745, 170 mm | FSA CK-745, 170 mm | SRAM XX, 170 mm |
| Shifters | Shimano Deore M6100, 12-speed | Shimano Deore M6100, 12-speed | SRAM AXS Pod | SRAM AXS POD Ultimate |
| Cassette | Shimano Deore M6100, 12-speed, 10-51 | Shimano Deore M6100, 12-speed, 10-51 | SRAM XS-1275 Eagle Transmission, 12-speed, 10-52 | SRAM XX Eagle Transmission, 12-speed, 10-52 |
| Chain | Shimano Deore M6100 | Shimano XT | SRAM GX Eagle Transmission | SRAM XX T-Type |
| Drivetrain | Shimano Deore M6100, 12-speed, long cage; FSA CK-745, 170 mm; Shimano Deore M6100, 12-speed; Shimano Deore M6100, 12-speed, 10-51; Shimano Deore M6100 | Shimano Deore XT M8100, long cage; FSA CK-745, 170 mm; Shimano Deore M6100, 12-speed; Shimano Deore M6100, 12-speed, 10-51; Shimano XT | SRAM GX Eagle AXS Transmission; FSA CK-745, 170 mm; SRAM AXS Pod; SRAM XS-1275 Eagle Transmission, 12-speed, 10-52; SRAM GX Eagle Transmission | SRAM XX Eagle AXS Transmission; SRAM XX, 170 mm; SRAM AXS POD Ultimate; SRAM XX Eagle Transmission, 12-speed, 10-52; SRAM XX T-Type |
| Wheels | RODI TRYP30 EVO (F 15x110 mm, R 12x148 mm), Center Lock | Sun Ringle 329 Trail Expert (F 15x110 mm, R 15x148 mm), Center Lock | DT Swiss HX1700 (F 15x110 mm, R 12x148 mm), Center Lock, aluminium | Reynolds Trail 329 Blacklabel Expert (F 15x110 mm), Center Lock, carbon |
| Tyres | Schwalbe Hans Dampf 29" (front) / Schwalbe Nobby Nic 29" (rear), 60 mm width · all trims | |||
| Weight | 20.3 kg | 19.6 kg | 19.9 kg | 19.1 kg |
| Price | £4,499 | £5,199 | £6,499 | £7,449 |
