Sonic AM 2025
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

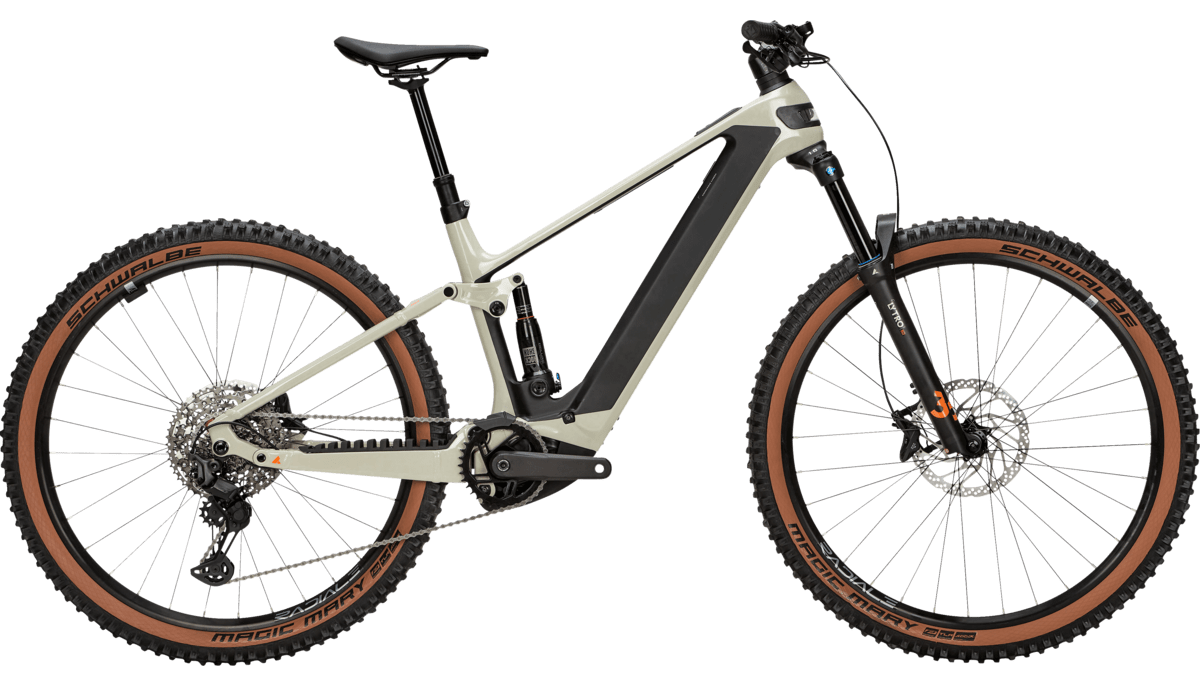

The Sonic AM is Bulls' carbon all-mountain platform for 2025, built on the redesigned Sonic E-Power chassis with 150 mm of travel up front, 140 mm out back, full 29-inch wheels and the latest Bosch Performance Line CX Gen 5 Smart System motor fed by an 800 Wh battery. Geometry is consistent across all four trims and squarely modern-trail: a 65-degree head angle, 76-degree effective seat angle, 460 mm chainstays at every size and reach growing from 425 mm (S) to 495 mm (XL).
The line splits cleanly into two pairs. The AM 1 (5,799 euro) and AM 2 ABS (5,999 euro) share a SR Suntour Zeron 36 fork, RockShox Deluxe Select+ shock and Shimano 11-speed Linkglide drivetrain; the extra 200 euro for the AM 2 ABS buys TRP Trail EVO ABS brakes and the Bosch anti-lock system. The AM 3 (6,999 euro) and AM 4 ABS (7,199 euro) step up to SRAM Eagle 70 T-Type AXS Transmission, E-Thirteen cranks, a carbon Rumble cockpit and a Rumble Impeller Pro wheelset, with the AM 4 ABS adding Magura Gustav ABS brakes and a Suntour Aion 36 ABS fork over the AM 3's RockShox Lyrik and Magura Gustav.
All four run carbon frames and the same 800 Wh pack, so the price ladder is about brakes, drivetrain and cockpit rather than core capability. Claimed weights range from 24.9 kg for the AM 3 to 26.7 kg for the AM 2 ABS. Every model is also equipped for everyday use with the MonkeyLink 2.0 interface, integrated cornering light and brake-light rear, and a free Bosch performance upgrade is available to raise the CX motor's output via the eBike Flow app.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 425 mm | 455 mm | 475 mm | 495 mm |
| Stack | 623 mm | 624 mm | 632 mm | 641 mm |
| Seattube | 410 mm | 440 mm | 470 mm | 510 mm |
| Chainstay | 460 mm | 460 mm | 460 mm | 460 mm |
| Headtube Angle | 65° | 65° | 65° | 65° |
| Seattube Angle (eff) | 76° | 76° | 76° | 76° |
| Wheelbase | 1214 mm | 1240 mm | 1268 mm | 1292 mm |
| Headtube | 110 mm | 110 mm | 120 mm | 130 mm |
| Front Centre | 754 mm* | 780 mm* | 808 mm* | 832 mm* |
Trims · 4
AM 1 | AM 2 ABS | AM 3 | AM 4 ABS | |
|---|---|---|---|---|
| Motor | Bosch Performance Line CX Gen 5 · 85 Nm · all trims | |||
| Battery | Bosch PowerTube 800 · 800 Wh · all trims | |||
| Travel F/R | 150/140 mm · all trims | |||
| Frame | Carbon · all trims | |||
| Fork | SR SUNTOUR ZERON 36 Air, 150 mm | SR SUNTOUR ZERON 36 1.8 Air 150 mm 29 ABS | RockShox Lyrik Base 29 150 mm | SR SUNTOUR AION 36 Air ABS, 150 mm |
| Shock | RockShox Deluxe Select+ RL · all trims | |||
| Headset | Acros AIF617 1.8 IS60/28.6 - ZS60/46 ICR · all trims | |||
| Stem | RUMBLE Altimate | RUMBLE Altimate | RUMBLE Altimate Pro Carbon, 780 mm, 9 deg backsweep | RUMBLE Altimate Pro Carbon, 780 mm, 9 deg backsweep |
| Handlebar | RUMBLE Altimate | RUMBLE Altimate | RUMBLE Altimate PRO Carbon | RUMBLE Altimate PRO Carbon |
| Grips | Bulls Proxim | Bulls Proxim | Prologo Proxim Cush | Prologo Proxim Cush |
| Saddle | SELLE ROYAL SRX | SELLE ROYAL SRX | prologo Proxim 400 wide | prologo Proxim 400 wide |
| Seatpost | LIMOTEC Alpha Dropper Post · all trims | |||
| Brakes | SHIMANO Deore BR-M6120 hydraulic disc | TRP Trail EVO HD-M844 ABS hydraulic disc | MAGURA Gustav hydraulic disc | MAGURA Gustav ABS hydraulic disc |
| Rear derailleur | SHIMANO DEORE XT RD-M8130 shadow+ | SHIMANO DEORE XT RD-M8130 shadow+ | SRAM S-Series Eagle AXS Transmission | SRAM S-Series Eagle AXS Transmission |
| Crank | SAMOX EC-53 | SAMOX EC-53 | E-Thirteen | E-Thirteen |
| Shifters | SHIMANO Cues SL-U6000 | SHIMANO Cues SL-U6000 | SRAM EC AXS Rocker | SRAM EC AXS Rocker |
| Cassette | SHIMANO DEORE CS-LG600-11 11-50T | SHIMANO DEORE CS-LG600-11 11-50T | SRAM Eagle 70 Transmission 10-52T | SRAM Eagle 70 Transmission 10-52T |
| Chain | SHIMANO Linkglide CN-LG500 | SHIMANO Linkglide CN-LG500 | SRAM Eagle 70 T-Type | SRAM Eagle 70 T-Type |
| Drivetrain | SHIMANO DEORE XT RD-M8130 shadow+; SAMOX EC-53; SHIMANO Cues SL-U6000; SHIMANO DEORE CS-LG600-11 11-50T; SHIMANO Linkglide CN-LG500 | SHIMANO DEORE XT RD-M8130 shadow+; SAMOX EC-53; SHIMANO Cues SL-U6000; SHIMANO DEORE CS-LG600-11 11-50T; SHIMANO Linkglide CN-LG500 | SRAM S-Series Eagle AXS Transmission; E-Thirteen; SRAM EC AXS Rocker; SRAM Eagle 70 Transmission 10-52T; SRAM Eagle 70 T-Type | SRAM S-Series Eagle AXS Transmission; E-Thirteen; SRAM EC AXS Rocker; SRAM Eagle 70 Transmission 10-52T; SRAM Eagle 70 T-Type |
| Wheels | RADIALE MTB 30 (Shimano Altus front / Deore rear Boost hubs) | RADIALE MTB 30 (Shimano Altus front / Deore rear Boost hubs) | RUMBLE Impeller Pro wheelset | RUMBLE Impeller Pro wheelset |
| Tyres | — | SCHWALBE Magic Mary Performance black bronze 29 x 2.40 | SCHWALBE Magic Mary Performance black 29 x 2.40 | SCHWALBE Magic Mary EVO 29 x 2.40 |
| Weight | 25.9 kg | 26.7 kg | 24.9 kg | 25.8 kg |
