iLynx+ DL Trail 2026

Current✎Full Power · Trail🔥 Hot · 10/10iFreshness 10/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Full-power Avinox trail bike kept light and priced to undercut rivals

Motor

Avinox M2S · 150Nm · 1300W↗

Battery

Avinox FP800 · 800Wh

Travel F/R

150/140mm

Wheels

29F / 29R✎

Frame

Aluminium / Carbon front, aluminium rear

Weight

21 kg

Price

From £3,500

View the BH iLynx+ DL Trail on BH’s site

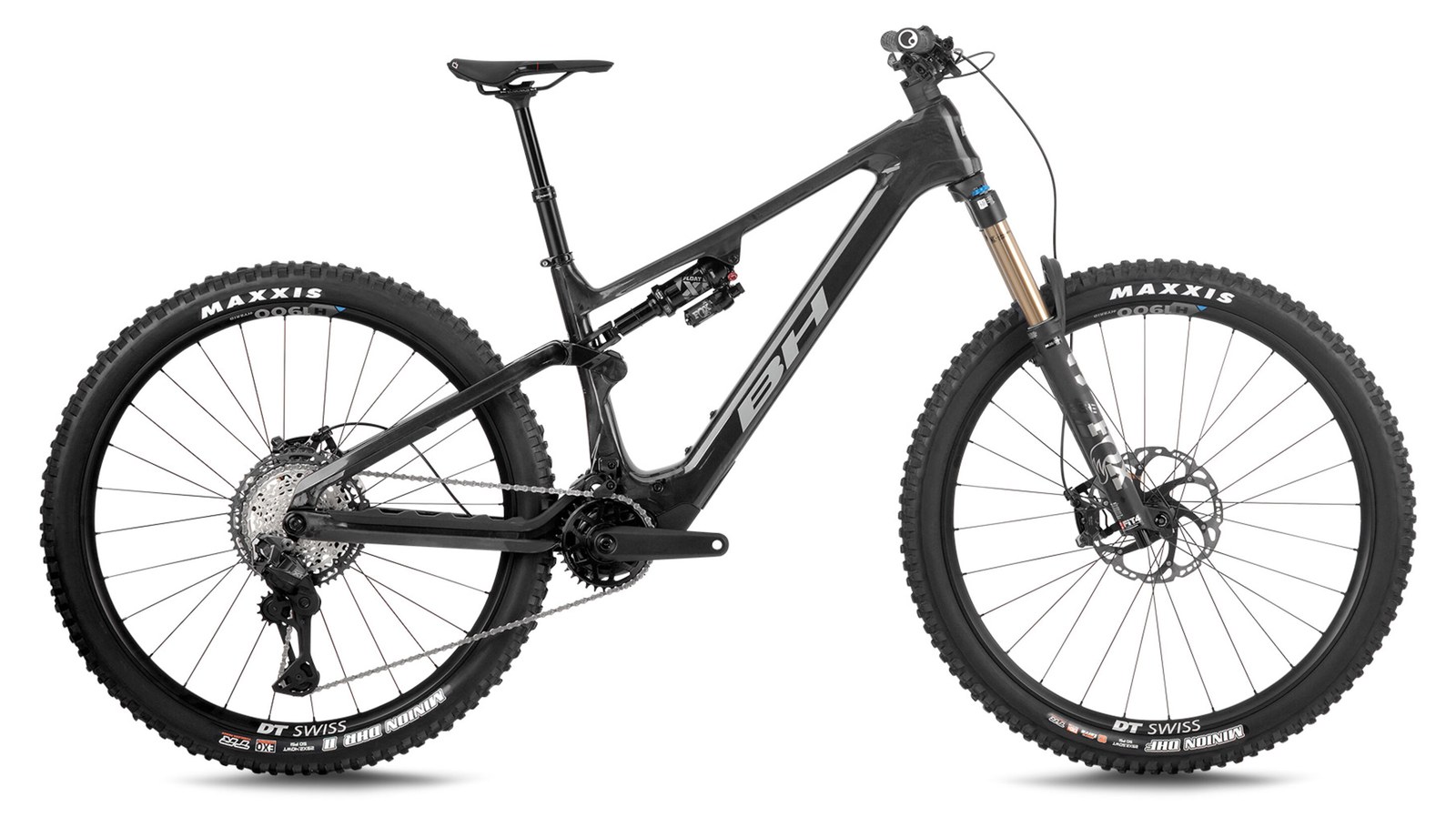

BH iLynx+ DL Trail 2026

From £3,499

The iLynx+ DL Trail is BH's new dedicated 140mm trail chassis in the iLynx+ DL family, launched July 2026 alongside the 170mm Enduro sibling. It is a genuinely separate frame, not a travel-adjusted Enduro: 140mm rear Split Pivot with a 150mm fork (140mm on the base build), its own geometry (65 degree head angle versus the Enduro's 63.5, with a 78 degree seat angle on both) and shorter 447mm stays. All six builds get the same 800Wh battery, and every build bar the base runs the DJI-made Avinox M2S with 150Nm and 1300W peak, which is standout drive-unit spec at these prices.<ul><li>Value: the range starts at 3,499.90 GBP for the alloy Trail 7.9, an aggressive entry price for an 800Wh Avinox bike, though note the 7.9 runs the older Avinox M2 motor, a 10-speed Deore drivetrain and an SR Suntour XCR34 fork.</li><li>Sweet spots: the Trail 8.1 (4,999.90 GBP) is the top alloy build with FOX 36 AWL, Float Rhythm and XT shifting; the Trail Carbon 8.7 (6,399.90 GBP) adds the full-carbon frame, Fox 36 Performance, Float X and XT Di2 shifting.</li><li>Flagship: the Trail Carbon 8.8 (7,299.90 GBP) gets a Factory-level 36, XT Di2 with the CSM8200 cassette and DT Swiss H1900 wheels at a claimed 21kg.</li><li>Geometry: roomy for a trail bike, with 440 to 520mm reach across S to XL on the carbon frame, 29in wheels front and rear, and 203mm rotors on every build.</li></ul>This bike launched in July 2026, so there is no owner feedback or long-term reliability data on the forum yet; the above is based purely on BH's published specifications.

EMTB Forums verdict

The iLynx+ DL Trail is BH's new dedicated 140mm trail chassis in the iLynx+ DL family, launched July 2026 alongside the 170mm Enduro sibling. It is a genuinely separate frame, not a travel-adjusted Enduro: 140mm rear Split Pivot with a 150mm fork (140mm on the base build), its own geometry (65 degree head angle versus the Enduro's 63.5, with a 78 degree seat angle on both) and shorter 447mm stays. All six builds get the same 800Wh battery, and every build bar the base runs the DJI-made Avinox M2S with 150Nm and 1300W peak, which is standout drive-unit spec at these prices.

Value: the range starts at 3,499.90 GBP for the alloy Trail 7.9, an aggressive entry price for an 800Wh Avinox bike, though note the 7.9 runs the older Avinox M2 motor, a 10-speed Deore drivetrain and an SR Suntour XCR34 fork.
Sweet spots: the Trail 8.1 (4,999.90 GBP) is the top alloy build with FOX 36 AWL, Float Rhythm and XT shifting; the Trail Carbon 8.7 (6,399.90 GBP) adds the full-carbon frame, Fox 36 Performance, Float X and XT Di2 shifting.
Flagship: the Trail Carbon 8.8 (7,299.90 GBP) gets a Factory-level 36, XT Di2 with the CSM8200 cassette and DT Swiss H1900 wheels at a claimed 21kg.
Geometry: roomy for a trail bike, with 440 to 520mm reach across S to XL on the carbon frame, 29in wheels front and rear, and 203mm rotors on every build.

This bike launched in July 2026, so there is no owner feedback or long-term reliability data on the forum yet; the above is based purely on BH's published specifications.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Setting

Descending

A solid all-round descender (65° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

Short 447mm rear and a lighter build — easy to pop, manual and throw around.

Size balance

Balanced front-to-rear in L (FC:RC 1.86) — weight sits evenly between the wheels.

Technical climbing

Avinox M2S and a steep 78° seat angle keep the weight planted over the front — a proper winch. 1300W of peak power and 150Nm of torque — among the most powerful e-bike motors made.

Best suited toPlayful trail riding — jumps, pumps and tight, techy singletrack.

Easy to throw around; happiest when you're active on the bike.

Watch out forNo major red flags in the L geometry.

The numbers are well balanced for its category.

How it stacks up vs other Full Power · Trail bikes (from 271 bikes in the database)

Weight21 kg2.0 kg lighter than average

Battery800 Wh95 Wh above average

Motor torque150 Nmclass-leading torque

Value for money92/100from £3,500 · comparable bikes ~£4,860

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

💬 Forum discussion

WHO makes this SL Trail/All-Mountain ebike?

12 replies · 942 views · last reply 2 months ago

Join the discussion →

Geometry · hover a row to highlight the measurement on the bike

Flip-chip position

geometry changes with the chip

	S	M	L	XL
Reach	450 mm	470 mm	495 mm	520 mm
Stack	629 mm	634 mm	648 mm	657 mm
Seattube	400 mm	420 mm	440 mm	480 mm
Chainstay	447 mm	447 mm	447 mm	447 mm
Headtube Angle	65°	65°	65°	65°
Seattube Angle (eff)	77°	77°	77°	77°
Wheelbase	1224 mm	1246 mm	1278 mm	1307 mm
Headtube	110 mm	115 mm	130 mm	140 mm
BB Height	350 mm	350 mm	350 mm	350 mm
Standover	810 mm	808 mm	808 mm	808 mm
Front Centre	777 mm*	799 mm*	831 mm*	860 mm*
FC:RC	1.74	1.79	1.86	1.92

Trims · 6

	Trail 7.9 £3,500	Trail 8.0 £4,200	Trail 8.1 £5,000	Trail Carbon 8.6 £5,500	Trail Carbon 8.7 £6,400	Trail Carbon 8.8 £7,300
Motor	Avinox M2 · 150 Nm	Avinox M2S · 150 Nm	Avinox M2S · 150 Nm	Avinox M2S · 150 Nm	Avinox M2S · 150 Nm	Avinox M2S · 150 Nm
Battery	Avinox FP800 · 800 Wh · all trims
Travel F/R	150/140 mm · all trims
Frame	Alloy	Alloy	Alloy	carbon front triangle (BCL Carbon), alloy rear triangle	carbon (Ballistic Carbon Layup, Hollow Core Internal Molding); alloy on lower trims (see per-trim overrides)	carbon (Ballistic Carbon Layup, Hollow Core Internal Molding); alloy on lower trims (see per-trim overrides)
Fork	SR Suntour XCR34 Air 140mm 15QR	Rock Shock Recon RL Air 150mm (RockShox, as printed by BH)	FOX 36 AWL 150mm 15QR	FOX 36 AWL 150mm 15QR	FOX 36 FLOAT Performance 150mm 15QR	FOX 36 FLOAT Factory 150mm 15QR
Shock	Rock Shox Deluxe Debonair	Rock Shox Deluxe Debonair	FOX FLOAT Rhythm	FOX FLOAT Rhythm	FOX FLOAT X Performance	FOX FLOAT X Performance
Headset	Acros AIX287 ICR BL.	Acros AIX287 ICR BL.	Acros AIX287 ICR BL.	Acros AIX327 ICR BL.	Acros AIX327 ICR BL.	Acros AIX327 ICR BL.
Stem	Satori URSA 35 · all trims
Handlebar	BH MTB SLite Alloy Riser 780mm	Race Face Aeffect Riser 35, 780mm	Race Face Aeffect Riser 35, 780mm	Race Face Aeffect Riser 35, 780mm	Race Face Aeffect Riser 35, 780mm	Race Face Aeffect Riser 35, 780mm
Grips	BH Ergonomic	BH Ergonomic	BH Ergonomic	Ergon GE10 EVO	Ergon GE10 EVO	Ergon GE10 EVO
Saddle	Prologo Proxim W350 Stn	Prologo Proxim W350 Stn	Prologo Proxim W350 Stn	Prologo Proxim W350 Stn	Prologo Proxim W350 Stn	Prologo Proxim Nembo
Seatpost	XFusion Manic TA 31.6 dropper · all trims
Brakes	Shimano MT420 4 Piston (front and rear)	Shimano MT420 4 Piston (front and rear)	Shimano MT520 4 Piston (front and rear)	Shimano MT520 4 Piston (front and rear)	Shimano XT 4 Piston (front and rear)	Shimano XT 4 Piston (front and rear)
Rear derailleur	Shimano Deore 10sp	Shimano Deore 12sp	Shimano XT 12sp	Shimano XT 12sp	Shimano XT DI2 12sp	Shimano XT DI2 12sp
Crank	EThirteen 34T 160mm · all trims
Shifters	Shimano Deore	Shimano Deore	Shimano Deore	Shimano Deore	Shimano Deore DI2	Shimano XT DI2
Cassette	Shimano CSM4100 10sp (11-46T)	Shimano CSM6100 12sp (10-51T)	Shimano CSM6100 12sp (10-51T)	Shimano CSM6100 12sp (10-51T)	Shimano CSM6100 12sp (10-51T)	Shimano CSM8200 12sp (10-51T)
Chain	Shimano HG54	Shimano CNM6100	Shimano CNM6100	Shimano CNM6100	Shimano CNM6100	Shimano CNM8100
Drivetrain	Shimano Deore 10sp; EThirteen 34T 160mm; Shimano Deore; Shimano CSM4100 10sp (11-46T); Shimano HG54	Shimano Deore 12sp; EThirteen 34T 160mm; Shimano Deore; Shimano CSM6100 12sp (10-51T); Shimano CNM6100	Shimano XT 12sp; EThirteen 34T 160mm; Shimano Deore; Shimano CSM6100 12sp (10-51T); Shimano CNM6100	Shimano XT 12sp; EThirteen 34T 160mm; Shimano Deore; Shimano CSM6100 12sp (10-51T); Shimano CNM6100	Shimano XT DI2 12sp; EThirteen 34T 160mm; Shimano Deore DI2; Shimano CSM6100 12sp (10-51T); Shimano CNM6100	Shimano XT DI2 12sp; EThirteen 34T 160mm; Shimano XT DI2; Shimano CSM8200 12sp (10-51T); Shimano CNM8100
Wheels	BH Lite Mach1 Trucky 30 wheelset, BH hubs, stainless steel spokes	BH Lite Mach1 Trucky 30 wheelset, BH hubs, stainless steel spokes	Race Face Ar 30 TR wheelset, BH hubs, stainless steel spokes	Race Face Ar 30 TR wheelset, BH hubs, stainless steel spokes	DT Swiss H1900 TR wheelset, DT Swiss hubs, stainless steel spokes	DT Swiss H1900 TR wheelset, DT Swiss hubs, stainless steel spokes
Tyres	Maxxis Minion TPI120 Terra EXO TR 29"x2.5/2.4 · all trims
Weight	—	—	—	—	—	21 kg
Price	£3,500	£4,200	£5,000	£5,500	£6,400	£7,300
