Vitus E-Mythique Tech docs

[Zimmerframe]

General Bits for the Vitus E-Mythique :

Fork Offset : 44mm (1.5" to 1-1/8" tapered)

Shock Size 205 * 65mm (Trunnion)

Link to Rear Shock on VR/VRS

Bottom Shock hardware : 25 * 8mm (Fox code : 803-03-328 DVO code : 1429250-8 Both should be interchangable)

Headtube : 44-56mm Tapered Semi-Integrated

Headset : ZS44/28.6 - ZS56/40

Hanger : SRAM UDH

Rear Hub : 148 * 12mm

Rear Axle : 181mm Length, 14.5mm Thread Length, M12xP1.0 Thread Pitch

Seat Post 31.6mm , clamp 34.9mm

Frame Bearings : 4 x 6901-2RS, 8 x 6802V-2RS, 2 x 6902-2RS

---------------

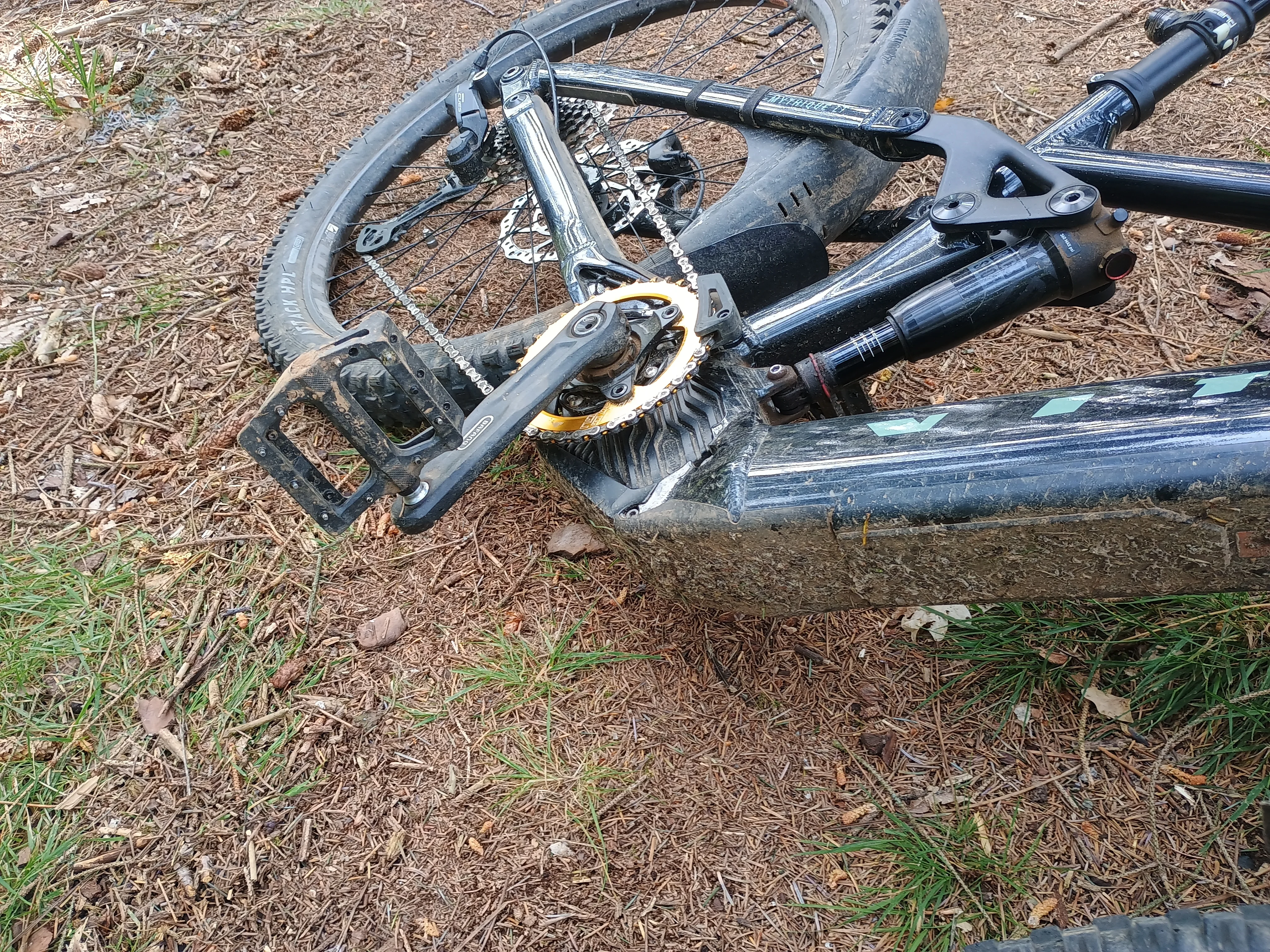

Chainring locknut tool for the M510 in the E-mythique is the Park Tool BBT-18 or equivalent like a Super B TB-1069. The same as the Brose/Bosch 8 notch lockring tool.

---------------

For the motor, there is an M510 thread here, but the newer controller (FC2.0) only really starts from Page 53 - the other 52 pages don't actually contain anything relevant or useful. At date of writing the thread was on page 58 and there's not really anything there to be learnt which would be beneficial to anyone with a Mythique.

Bafang m510

Thaeber, could be they dont even support now rev i with boot code 0x90 :( What I recon - to sell your motor and buy FC2.0. Anyway, is strange that I see in 43V bin file boot code 0x72 - bafang is messing it quite good. ;) Maybe they have plans not to allow mix voltage. If you buy 43V motor...

www.emtbforums.com

If you do update your Mythique firmware to an alternative, in theory you can't revert back - only a Vitus dealer could do that for you.

The C245 Display and the switch both need a 2.5mm hex to remove/adjust.

VR Model with Microshift. Default Chain is KMC X10 - 116 links.

Can also use 11 and 12 speed chains. Presently running an SRAM PC1130 120 link chain with 4 links removed.

Touch up paint for all the bikes are available here :

VITUS

Colour matched and authorised by VITUS

gpaintbikes-colourmatch.co.uk

Separate Mudguard thread :

E-Mythique Mud Guards (+the other Vitus and maybe most none fixed rear triangle bikes)

Depending where you are in the world, the moist season is nearing ... (or ending....) If you have a fixed rear triangle bike, mudguard options are normally fairly easy. You can mount on the seat stays, make sure it extends down to the chain stays, everything's moving in unison and your...

www.emtbforums.com

Fork and Shock thread :

Vitus E-Mythique Fork and Shock Options

It's early days, but it's a relevant subject and will be lost in the main thread otherwise. The bike's well built, capable, has all the right numbers and dimensions and should be a total all round mega machine. Shock spec is 205*65 Trunion. There's not really many options out there in the...

www.emtbforums.com

Attachment - M510 Motor manual (install) pdf



[Zimmerframe]

E-Mythique : RECOMMENDED TORQUE VALUES

UPPER SHOCK BOLTS	14NM
LOWER SHOCK BOLTS	10NM
V-LINK SEAT TUBE PIVOT	14NM
V-LINK SEAT STAY PIVOTS	14 NM
MAIN PIVOT	19NM
HORST LINK PIVOTS	14NM
HANGER	25NM
CABLE GUIDES	3NM

VR Model - Microshift Advent Cassette - I think is 40nm.

M510 Motor side cover 1NM. (m3*8)
M510 Bash Guard 4NM (m5*8)
Motor - M8 Lock Nuts 35nm



[Zimmerframe]

Exploded Diagram and part specs/numbers



[Zimmerframe]

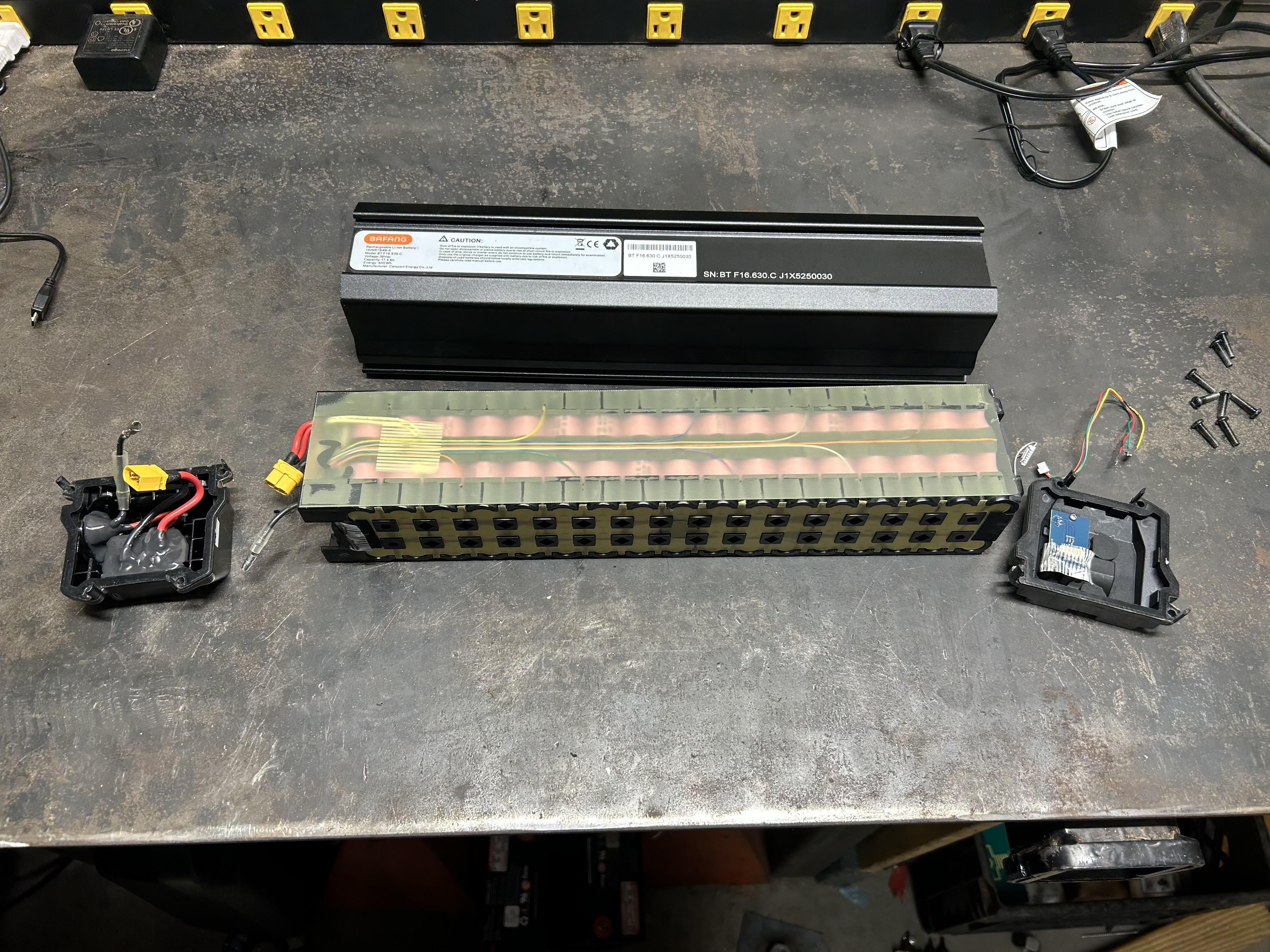

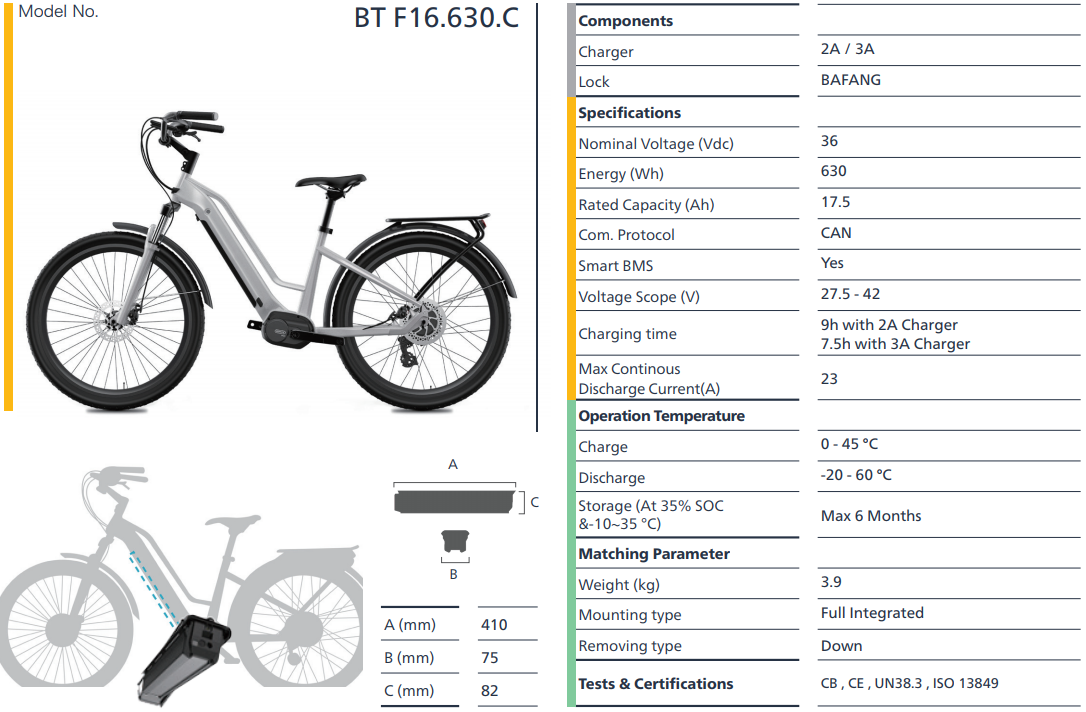

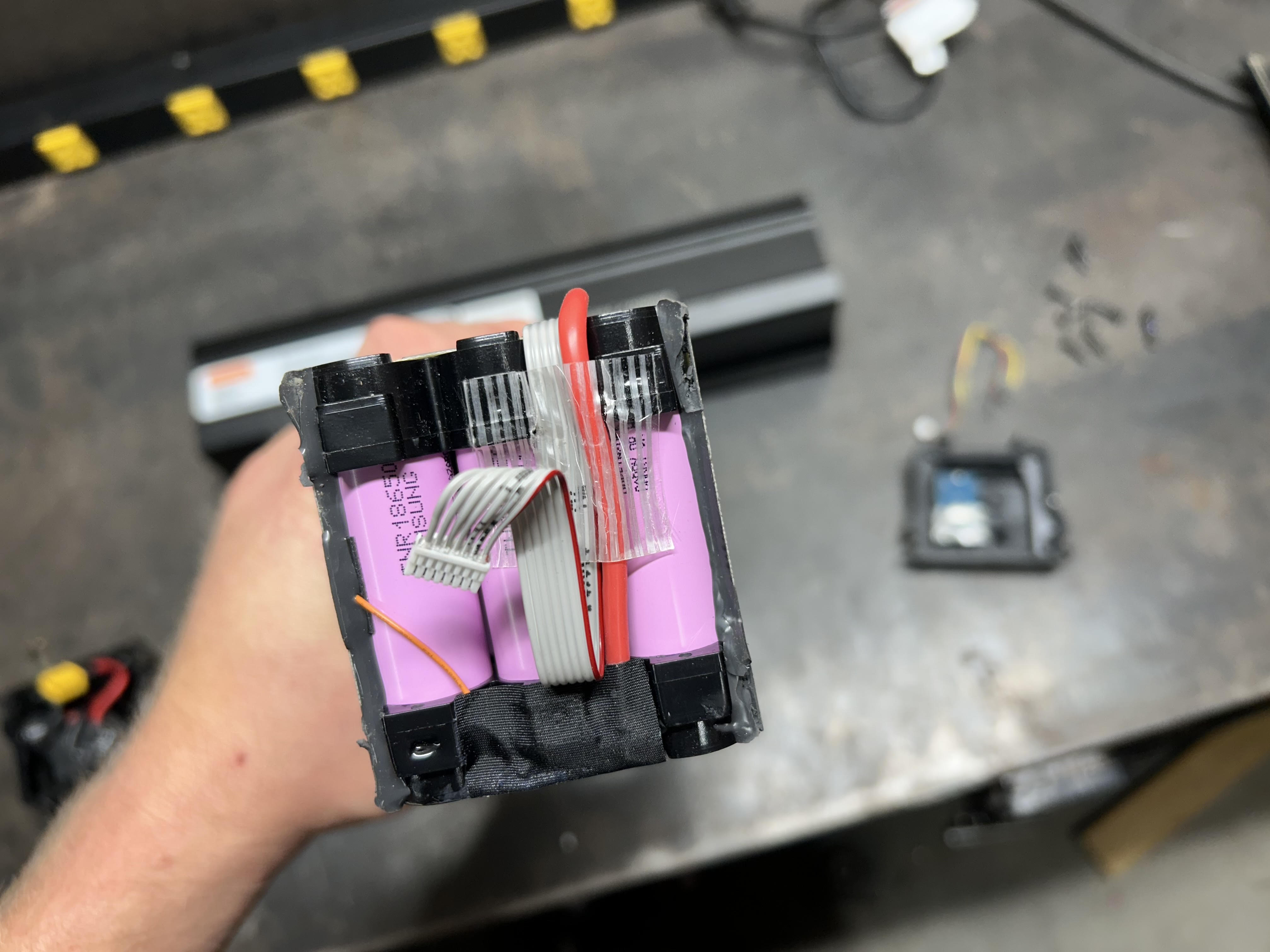

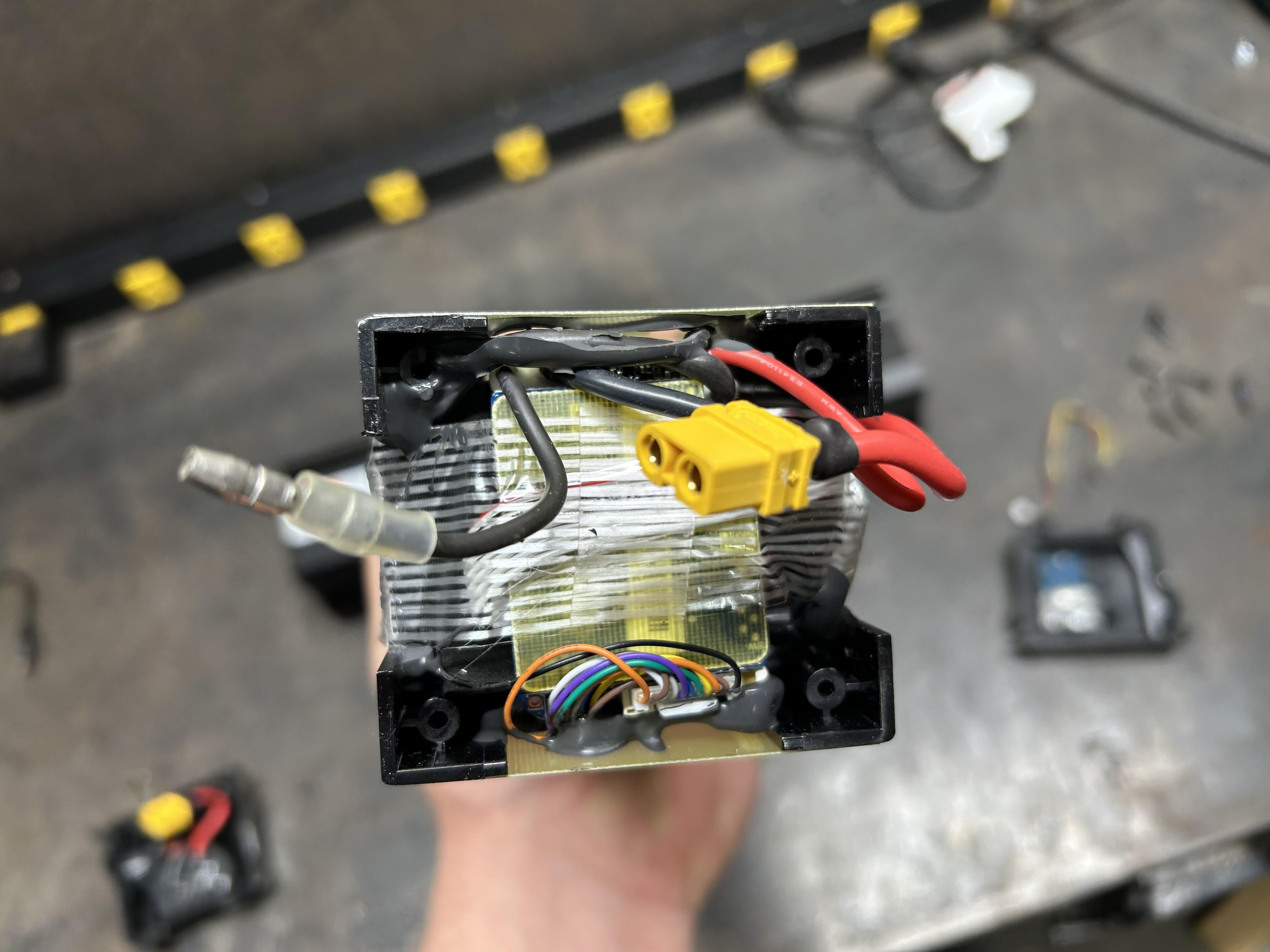

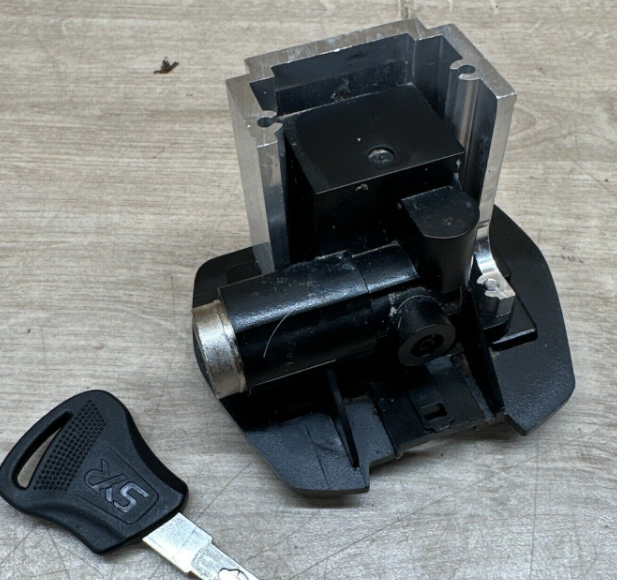

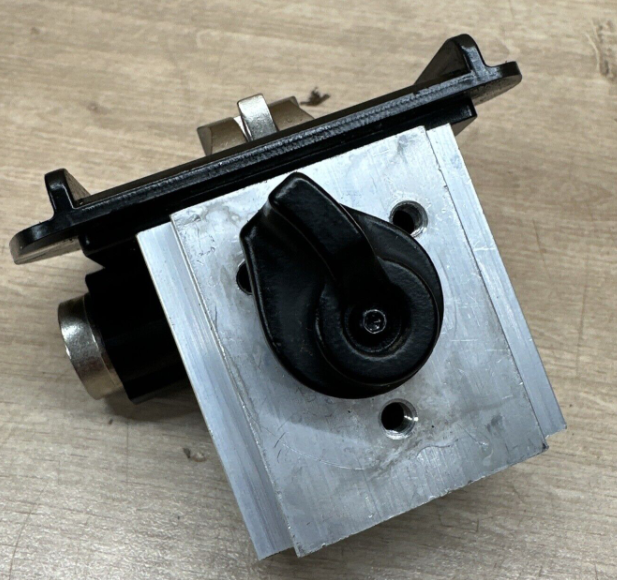

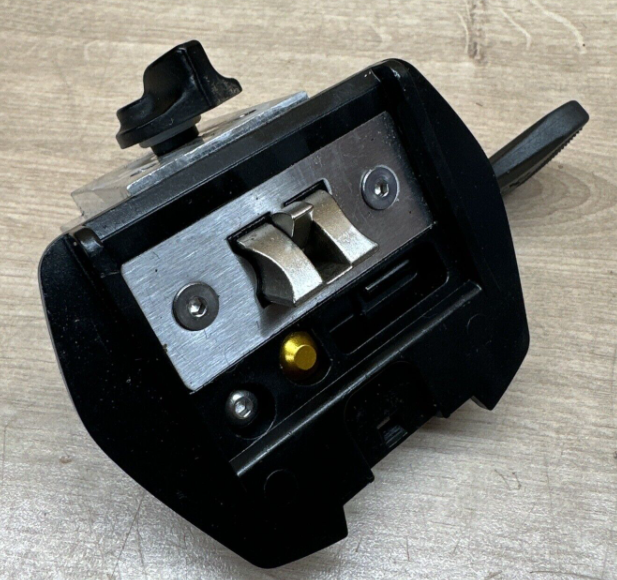

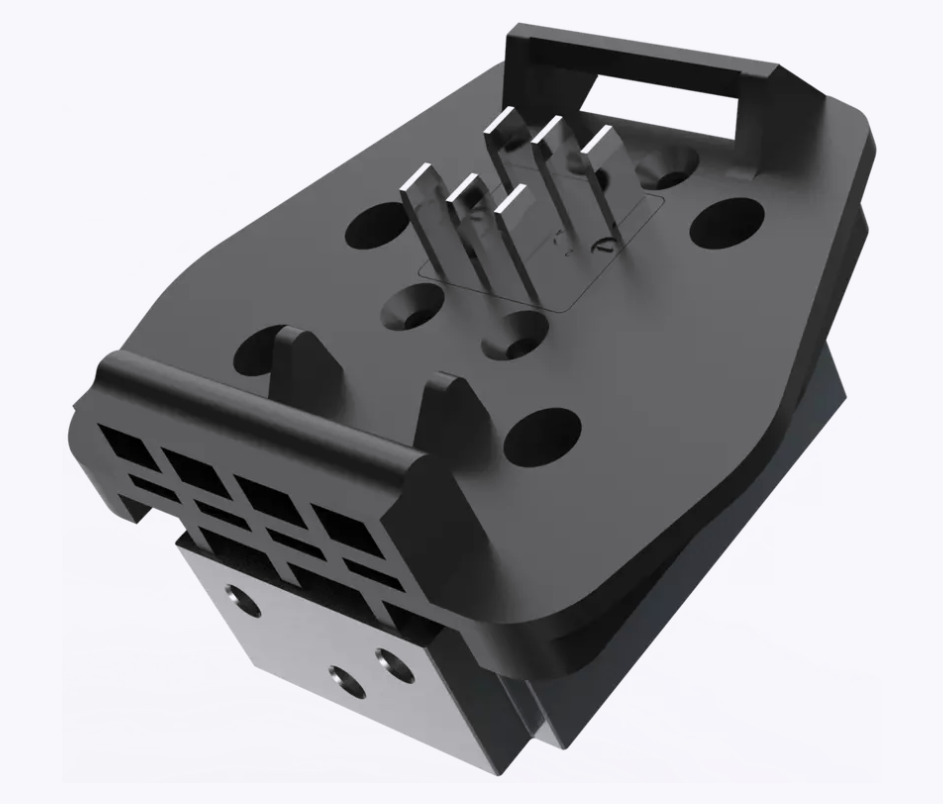

At launch, the E-Mythique comes with one battery type. The F16.

Full name : BT F16.630.C

Physical sizes :

A 410mm B 75mm C 82mm and weighs in at 3.9kg with it's outer cover (integrated).

EDIT : Weighed mine and it's 3.6kg with the cover and rubber stone guard.

It's a 36v 630wh battery. (17.5AH) Voltage scope is 27.5-42v .

Edit : actually 16.250AH so 585wh. (Bosch 625 is actually 601 for example) - this is increasing with each charge though.

Edit 2 : 2 months in, Battery now shows 16,779 mAH.

(Note : Charge cycles displayed on the Bafang isn't 100% full charge cycles, but just how many times it's been connected to a charger)

Max continuous discharge current is 23A !!!! (In theory, you could pull 42v*23A for 966w Peak Power !!!) Seems to actually pull a max of 19 Amps (tested).

The bike is spec'ed with a 2A charger, but mine came with the 3A charger, so hopefully they all do as it's faster !

Charging - plug the charger into the mains and THEN ! into the bike or it won't always charge - sometimes it will if you twist the charge connector in the battery back and forwards... ?!?! Sure this will all make more sense in time

The charger light theoretically shows Red when charging and Green when charged, but if you want to make sure it's charging, turn the bike on. Press the up and down buttons for a couple of seconds. Select information and battery and you should see a current reading of something like 2750ma - if it's -50 it's just drawing current on standby.

If you remove the battery, the LED on the battery flashes red for the first 33%, then green for the next 33% then blue for the final 33% when it's charging.

It seems sometimes the battery goes into "safe"/"storage" mode. To exit this mode, remove the battery, press the button and hold for a second or two and it should go green from red.

You can also put the battery into storage mode with a longer press and it should cycle red/blue/green.



[Zimmerframe]

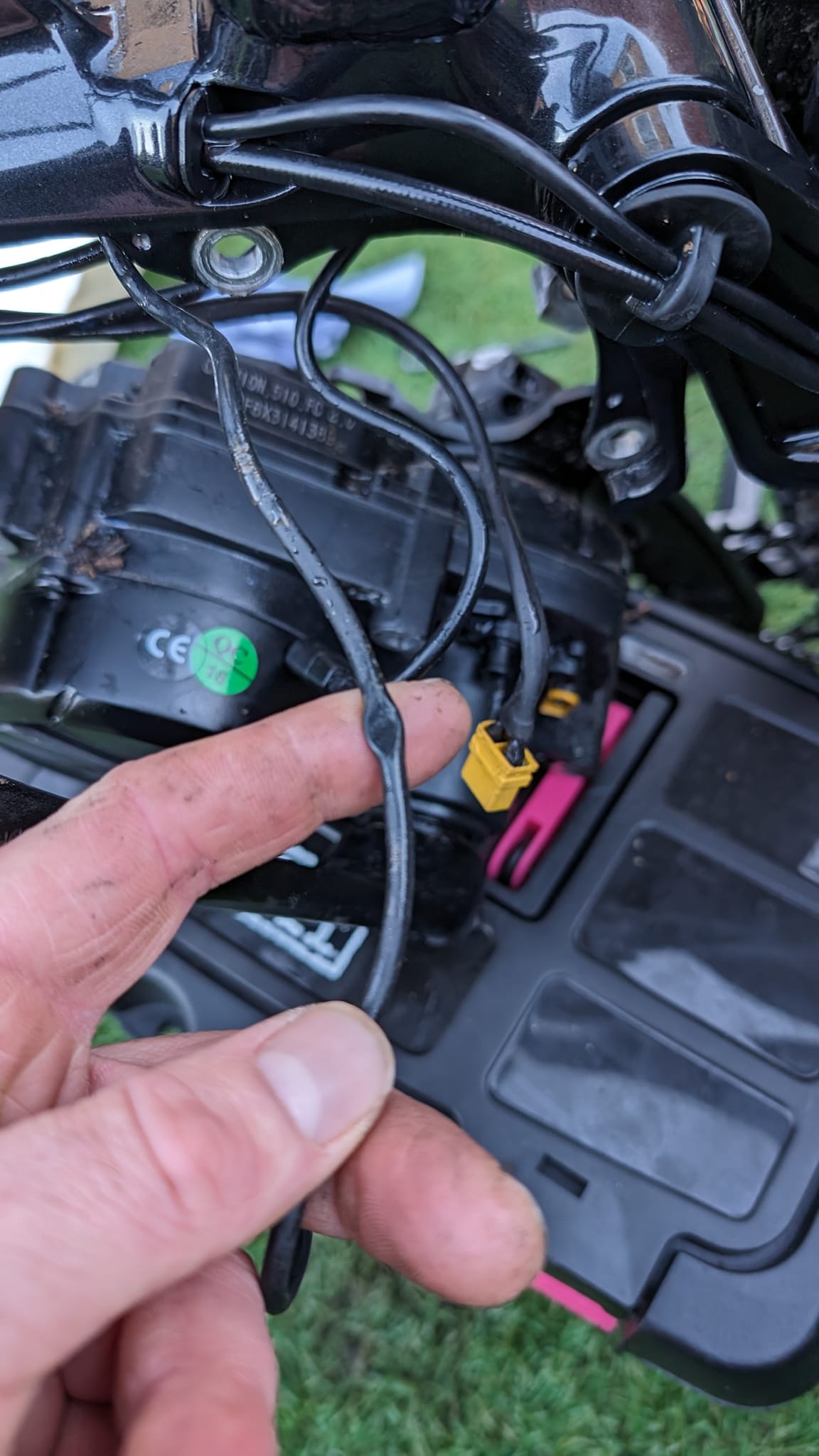

M510 Motor wiring Diagram for the Vitus E-Mythique (I think this is just completely standard for any M510)

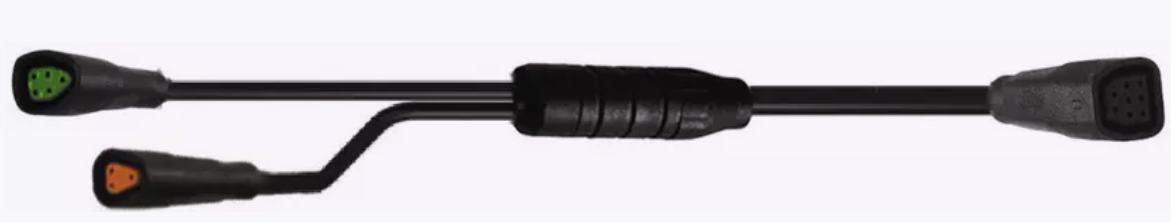

If you want to add lights then I think you need the 1T3 cable which adds a split off to connect them (this might already be stuffed up the seat tube, but I've not looked at time of writing). I think it's 6v and 0,5 amps ! So not much - maybe 300 lumens ?



[Zimmerframe]

Error Codes

Well, someone's going to get one .. especially now we're going back to the good old spoke magnet ...

Bafang use quite a simple and standard error code system. If you scroll down on their service page you can then tag left and right through the codes - link to the service page in English :

BESST

Bafang description

bafang-e.com

I've attached a PDF to this post also.

I was going to convert them all to searchable, but there's only 29 codes so it's not that difficult to just look to find the code and the solution.



[Zimmerframe]

Display is a DPC 245 V2. Which means Bluetooth 5.0 not 5.1 - Tested : this works with "Go" but not "Go+" (though does connect to Go+, just doesn't work) You need a V3 for 5.1/Go+ (Have one ordered to test)

On the bright side a new display and switch is only about €80 so if you break it or want the bluetooth version, it's not the end of the world.

Basics :

One great bonus is that both have a USB C port for charging (5v 500ma).

For a "cheap" bike, the display gives great functionality and easy configuration. You can change KM/MI, change the brightness, change the default standby power off time, Change the light sensitivity. View your wheel size, speed limit, battery specs/charge states (Relative and Actual)/capacity/charges/amps/FW and hardware versions. Error code logs, Turn on and off the service indicator (no need to visit a dealer to have the annoying thing removed) .

Here's the manuals for anyone wanting to get ahead of things. Note that the modes shown in the manual are not the same as on the E-Mythique as Vitus have their own modes. There's one for the 5.1 and one for the 5.0 bluetooth versions.

The manual also contains the error codes at the end.

If you think there might be a problem with the switches on the DPC245 for powering on or fault determination, you can emulate power on by shorting the two pins nearest the display with an electrical screwdriver or some other implement. You need to hold it for a few seconds.



[Zimmerframe]

M510 Dealer manual (attached) - some but not a vast amount of information .

The M510 at this point has shipped with 2 different torque sensors. One for the FC1.0 and one for the FC2.0 (motor controller board). If you need to buy a replacement sensor, you need the one with a model number beginning with "GR" as we have the FC2.0 version.

The "Go" app has a page where you can check the torque sensor value if you're doing fault diagnostics - no pressure it reads 750mv :



[Zimmerframe]

Speed sensor alignment on mine for anyone setting up, is also shown in the M510 wiring diagram above :

E-Mythique replacement speed sensor (720969084) :

https://www.chainreactioncycles.com/fr/p/bafang-m510-speed-sensor-vitus-e-mythique-lt



[CarolinaCrawler]

How reliable are spoke mounted magnets? I wonder if it'd be hard to convert it to a rotor mount if there's any problems.



[Zimmerframe]

How reliable are spoke mounted magnets? I wonder if it'd be hard to convert it to a rotor mount if there's any problems.

I think they work fairly well. We've all moved onto rotor mounts, mainly because it's tidier I guess. I know a lot of people used to carry a spare in case they lost it (you could just put one on another spoke out of line with the sensor).

It doesn't look simple to modify it. You could extend the cable along the inside edge of the chainstay, but there's nowhere to really mount a sensor (if you wanted to bolt/screw it in place). There is a void at the end of the chainstay casting though where you could bond one into place I guess.

Your post reminded me to straighten mine up (T20 security), so will see if that makes any difference. I did have a power cut off today on a climb.



[Zimmerframe]

E-Mythique Max seatpost insertion depths : S 177mm, M 215mm, L 242mm, XL 270mm.

Therefore on a Medium a Oneup V2 max would be 180mm (Calculator) - the oneup calculator also shows you the max from other seatposts :

L can run the 210mm post. XL can run the 240 post - though check as it may also depend on your collar to seat rail measurements. For example, if you were 7ft tall on a small, you could also run a 240 post, it would just stick out a long way !



[rotary]

MODS, can you make this thread a sticky?
