Rail (625Wh) Trek RIB Battery Alignment Procedure - Updated

Dano78

Member
Dec 3, 2019
161
34
Uk
If anyone has Qs on this, please message me directly. All parts are available through your LBS and it is recommended for them to install it if necessary. Not all models will need this and many should see this alignment plate already installed as a rolling change.

Cheers!
I have a 2019 trek rail is the newer version better? Can I get mine upgraded by my local bike shop ?


markloch

Active member
May 14, 2021
123
117
NorCal
I had momentary battery disconnects on almost every ride (on bumpy descents) even after a visit to trek for a realignment. I finally solved it by removing the motor cover, loosening the lower bracket bolts, and pressing the lower bracket up into the battery with a long hex wrench while tightening the bolts. Would prefer a proper fix but if it ain’t broke …


Scott from Aus

New Member
Dec 15, 2021
12
11
Aus
My 19' LT9 used to lose power all the time, but had it fixed at lbs under warranty. The other issue I had was the noisy lock, it sounded like there was a plastic bead rattling around inside above the battery.
I now ride a 2022 Rail 9 (alloy) and it has the same rattle, its the metal locking tap making the noise again. I dont think it did it from new, it has developed in the last couple of rides and near 400km of rough single.
I hope this fixes it, or its lock removal mod time!!


Scott from Aus

New Member
Dec 15, 2021
12
11
Aus
After a little more digging I think it is something in the seat/dropper post making the noise. Riding over rough ground seated I hear it, while standing - nothing. There is a bit of play back and forward in the dropper/seat. Bike is due for 1st service so I will have the bike shop investigate.


Scott from Aus

New Member
Dec 15, 2021
12
11
Aus
Issue seems to be solved, shortened the cable to dropper mech and greased the linkage. Hopefully the shortened cable was the fix as its permanent.


dschae1

Member
Jul 20, 2021
31
14
Texas
If anyone has Qs on this, please message me directly. All parts are available through your LBS and it is recommended for them to install it if necessary. Not all models will need this and many should see this alignment plate already installed as a rolling change.
Cheers!
Mitch, I have a 2021 Rail 7. The battery will not come out with just the turn of the key. However, I was able to get it out by removing all the screws once. Is this new fix something I should look into? What is the cost for the new RIB system?


chrismechmaster

Well-known member
Subscriber
Dec 7, 2020
793
411
Newbury
Just Seen this thread

is this something that needs to be fitted to all trek rail as a precaution / preventative or only if you develop problems??
I have a 2021 rail 9.9


Mitch@Trek

Official Trek
TREK
Dec 30, 2020
44
109
Waterloo, WI
Just Seen this thread

is this something that needs to be fitted to all trek rail as a precaution / preventative or only if you develop problems??
I have a 2021 rail 9.9

This isn't needed for all Rail models, but if the battery isn't being aligned properly or can't be aligned properly, this would be good to add. But models were updated with this mid-production, so some may already have it.


irie

E*POWAH Elite World Champion
Subscriber
May 2, 2022
1,942
1,873
Chichester, W.Sussex, UK
Seems to me that the larger and therefore heavier and longer the battery is, the more likely there are to be alignment issues. So those with 500Wh batteries have the least problems and those with 750Wh batteries have the most problems (proportionally).

500Wh battery ~3.0kg/349mm
625Wh battery ~3.6kg/416mm
750Wh battery ~4.3kg/484mm

Might be a few gm/mm out.


torabora851

Member
Apr 13, 2020
108
67
Sydney, Australia
The battery alignment plate for the 750w battery is too long, and the fitment can't be aligned correctly without bending the plate. This thing was introduced to fix the alignment issues but just made it worse.


jacob80

Member
Apr 14, 2022
28
10
Omaha, NE
Does this apply to the 2022 750 Wh batteries? I’ve been having issues with the bike randomly turning off and I suspect my couple crashes knocked it out of alignment.


Dave_B

E*POWAH Elite World Champion
Subscriber
Aug 29, 2020
1,420
1,536
Newquay
Look through the trek section and my posts (first ride post) there is loads of info about this issue.


jacob80

Member
Apr 14, 2022
28
10
Omaha, NE
Look through the trek section and my posts (first ride post) there is loads of info about this issue.
Thanks Dave. So just to confirm, a 1.5mm washer under the top battery alignment plate should do the trick eh? Did you end up doing this yourself?


Dave_B

E*POWAH Elite World Champion
Subscriber
Aug 29, 2020
1,420
1,536
Newquay
I didn’t do any adjustments, my LBS made all the adjustments for me. Don’t think they used washers, just closed the gap between the mounting plates as much as possible and used some rubber cutouts to strengthen the top plat to stop it moving.



jacob80

Member
Apr 14, 2022
28
10
Omaha, NE
I didn’t do any adjustments, my LBS made all the adjustments for me. Don’t think they used washers, just closed the gap between the mounting plates as much as possible and used some rubber cutouts to strengthen the top plat to stop it moving.

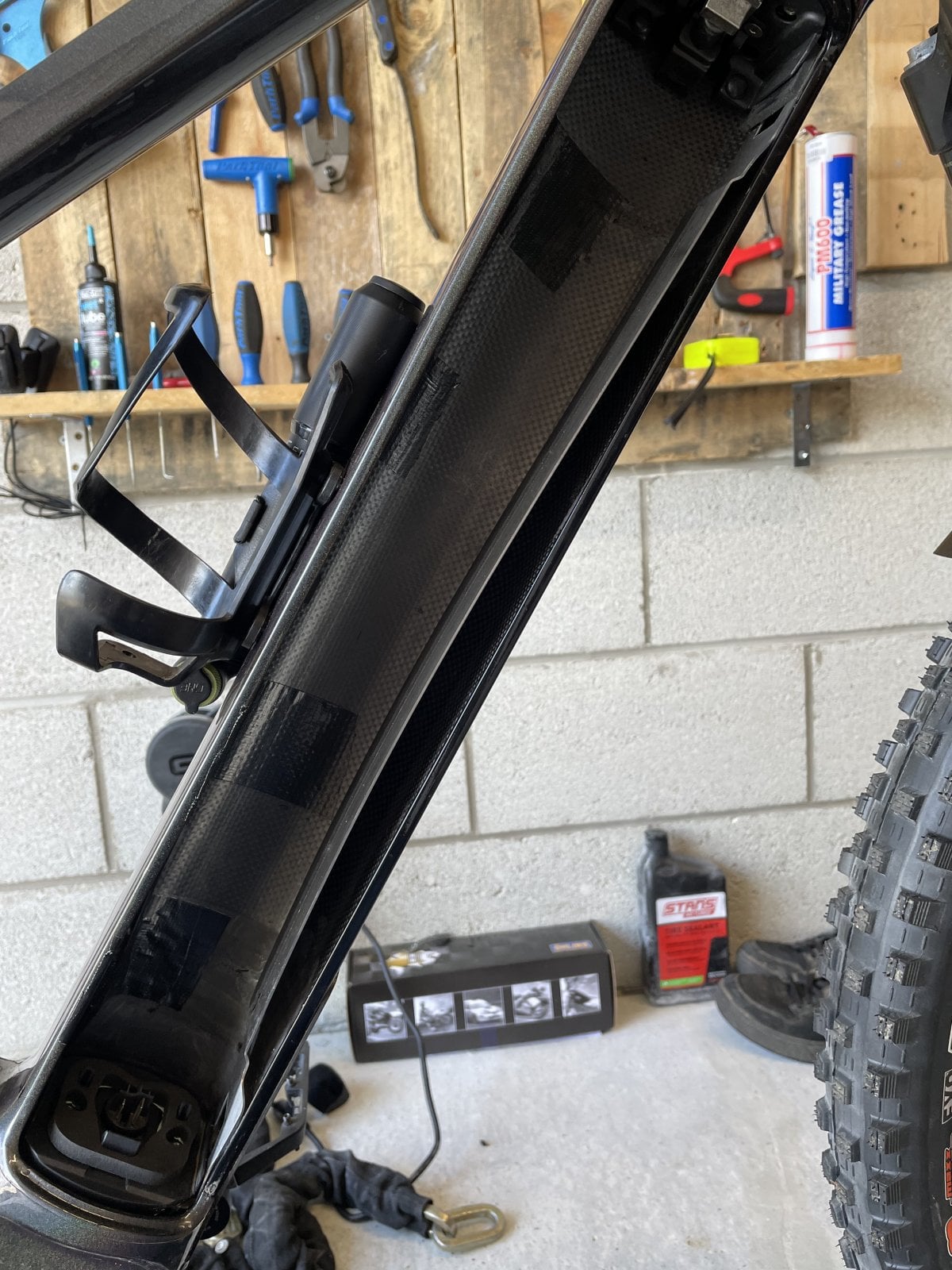

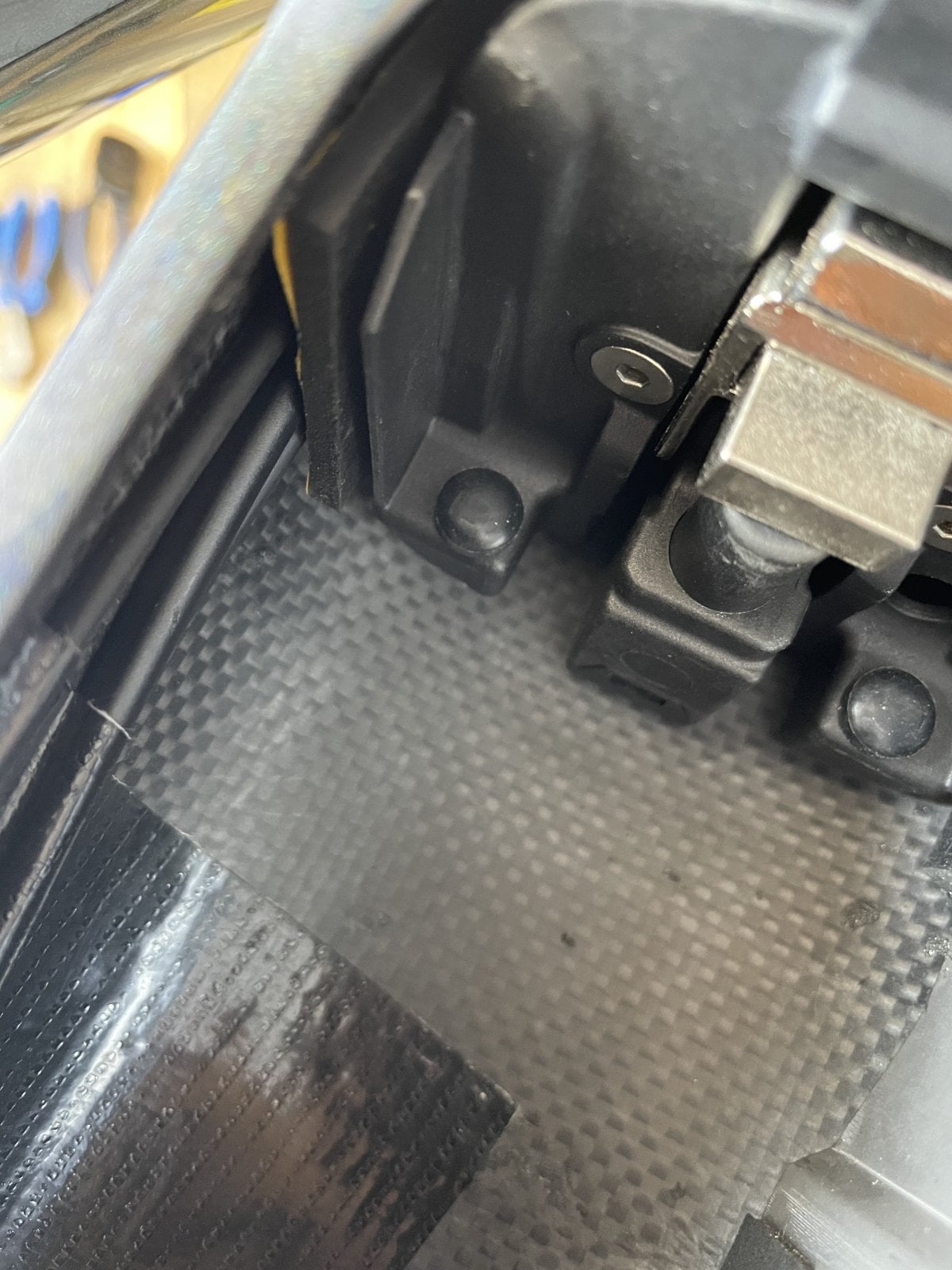

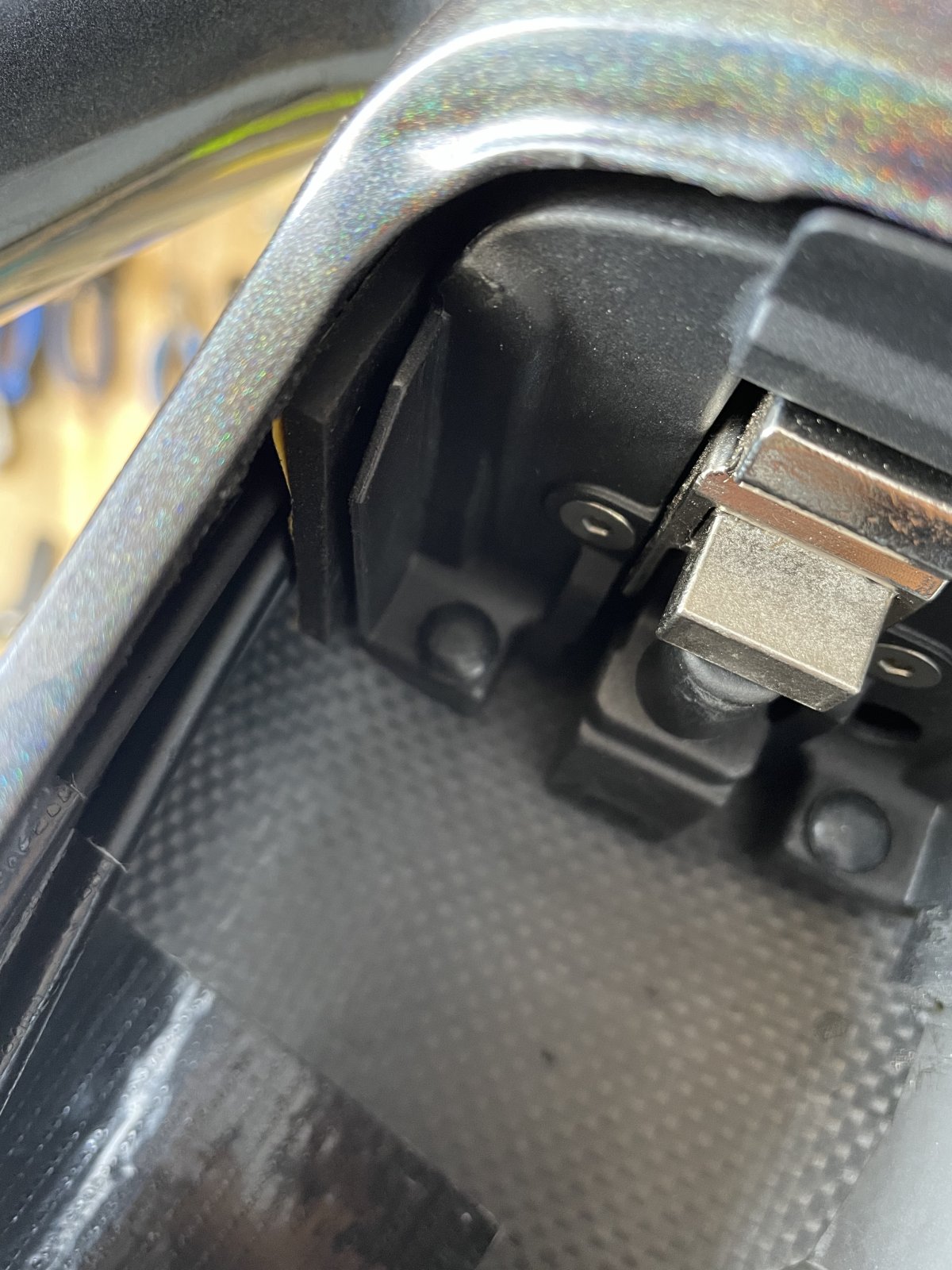

View attachment 98892 View attachment 98893 View attachment 98894 View attachment 98895
Thanks for the photos. I went ahead and added washers on the backside of the top mounting plate and am going to take it for a spin here shortly. I’ll report back with my findings.


jacob80

Member
Apr 14, 2022
28
10
Omaha, NE

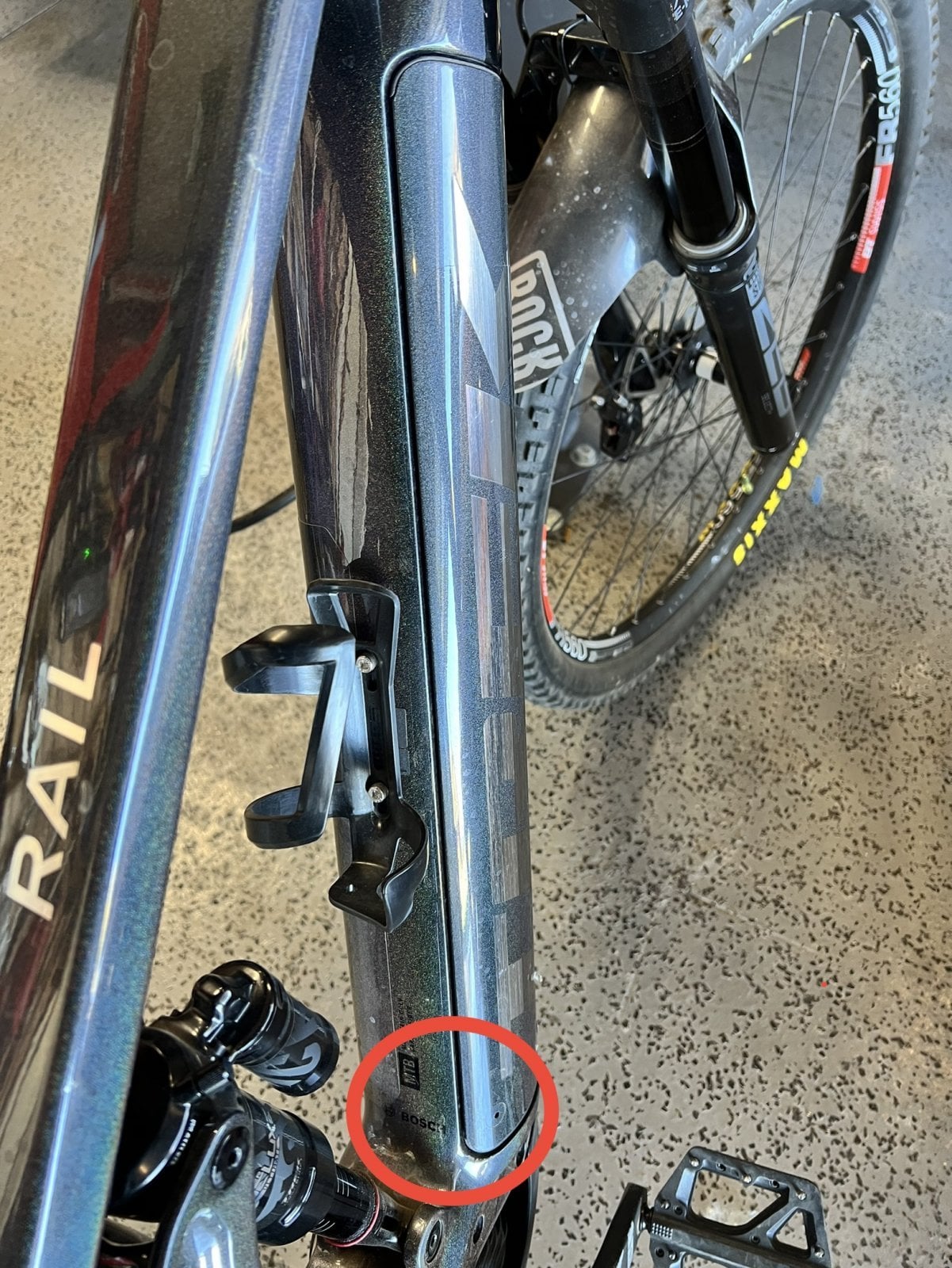

I can’t say with high certainty, but I believe the bottom battery bracket may have been the culprit. I noticed this gap has been wider than at the top since I purchased the bike. After a couple hard crashes, it must have made things worse to the point where the misalignment was enough to cut power?



Oupy

Member
Feb 22, 2022
63
48
Australia

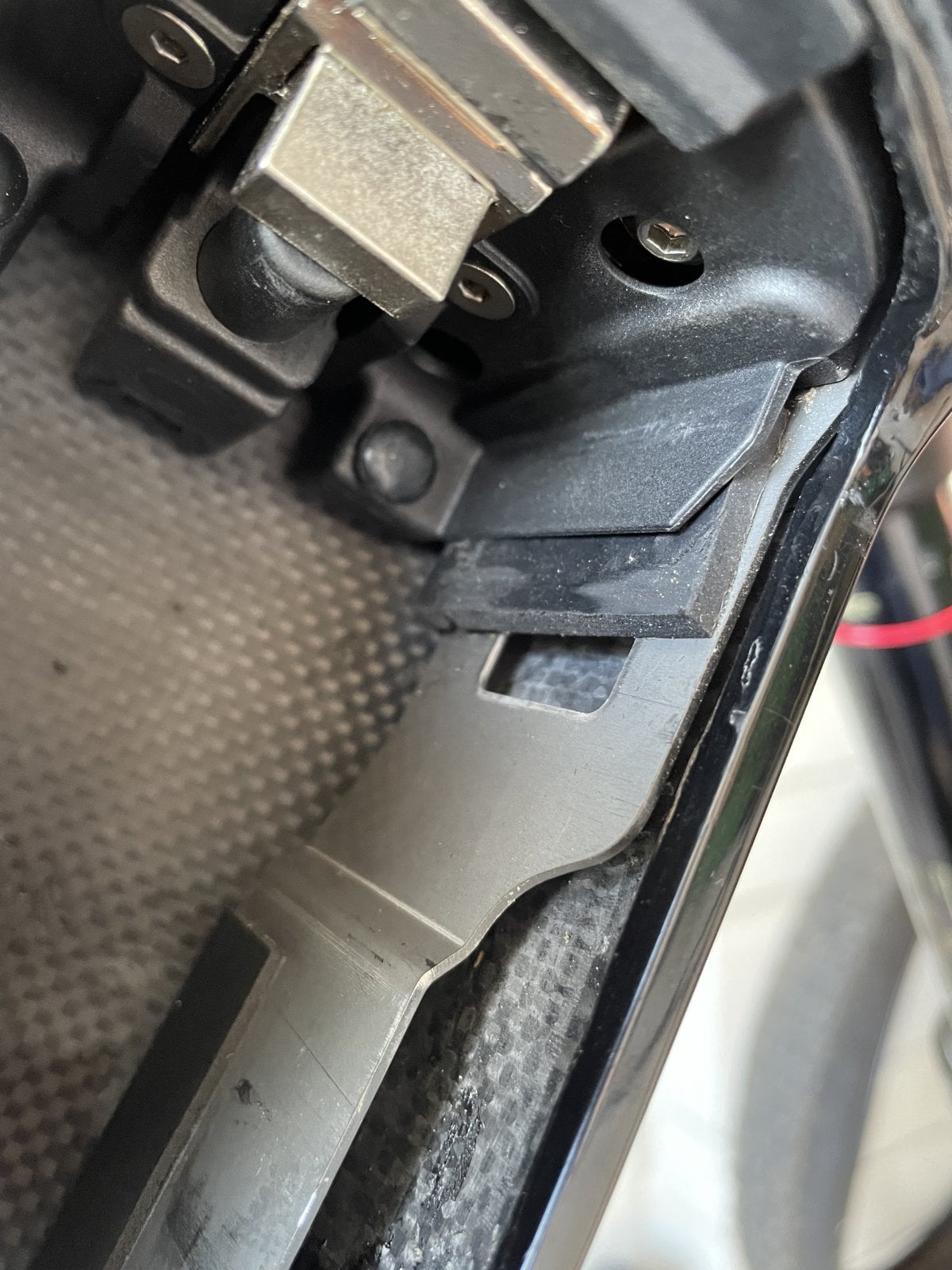

Only way seemingly to get a good fit with a 2022 9.8 is with some bowing to the plate, is it ok to run it like that similar to Dave's setup above?


torabora851

Member
Apr 13, 2020
108
67
Sydney, Australia
Only way seemingly to get a good fit with a 2022 9.8 is with some bowing to the plate, is it ok to run it like that similar to Dave's setup above?
I don't see possible issues with that other than scratching the battery. But the Trek engineers believe that this is important to keep it flat.

Align plate.png


But this is for the 625w version, probably for the 750w they have another document which says that: "IMPORTANT: Make sure the alignment is bowed up significantly" :)

Last edited:

jacob80

Member
Apr 14, 2022
28
10
Omaha, NE
The cable that is attached the controller on the handlebar looks to be routed quite tightly, and would likely be under force particuarly when turning the bars? That may be the issue?
I don’t know why the photo makes it look that way but the cable is not tight at all. I did end up getting a big ride in after adjusting the bottom battery bracket and that was definitely the issue. I didn’t experience any power surging, power downs or any unexpected power events. I’m surprised such a small adjustment resolved the issue but I’m not complaining.


jacob80

Member
Apr 14, 2022
28
10
Omaha, NE
Update:

The intermittent power cuts and power down has returned although not until 10+ miles on my ride. I think the battery gets warm and starts moving around. Going to try more things to keep it in place.


Mitch@Trek

Official Trek
TREK
Dec 30, 2020
44
109
Waterloo, WI
Update:

The intermittent power cuts and power down has returned although not until 10+ miles on my ride. I think the battery gets warm and starts moving around. Going to try more things to keep it in place.
If this continues, I wonder if a wire is bad in the connection. It would be worth bringing this to your local dealer so they can inspect the wires and pull them apart if needed.


Kaip

Member
Dec 8, 2022
6
3
Whistler
Update:

The intermittent power cuts and power down has returned although not until 10+ miles on my ride. I think the battery gets warm and starts moving around. Going to try more things to keep it in place.
Did you ever find a fix? Having issues with my rail as well.
