Merida / Shimano motor bash guard

Sep 22, 2018
43
35
18
Oswestry
Ride
Levo comp
#1
This may be useful for anyone who has a merida e160 or unprotected shimano motor.

Since the merida doesn't come with motor bash protection, I made my own.

A couple of hours and some 2mm vacuum forming plastic

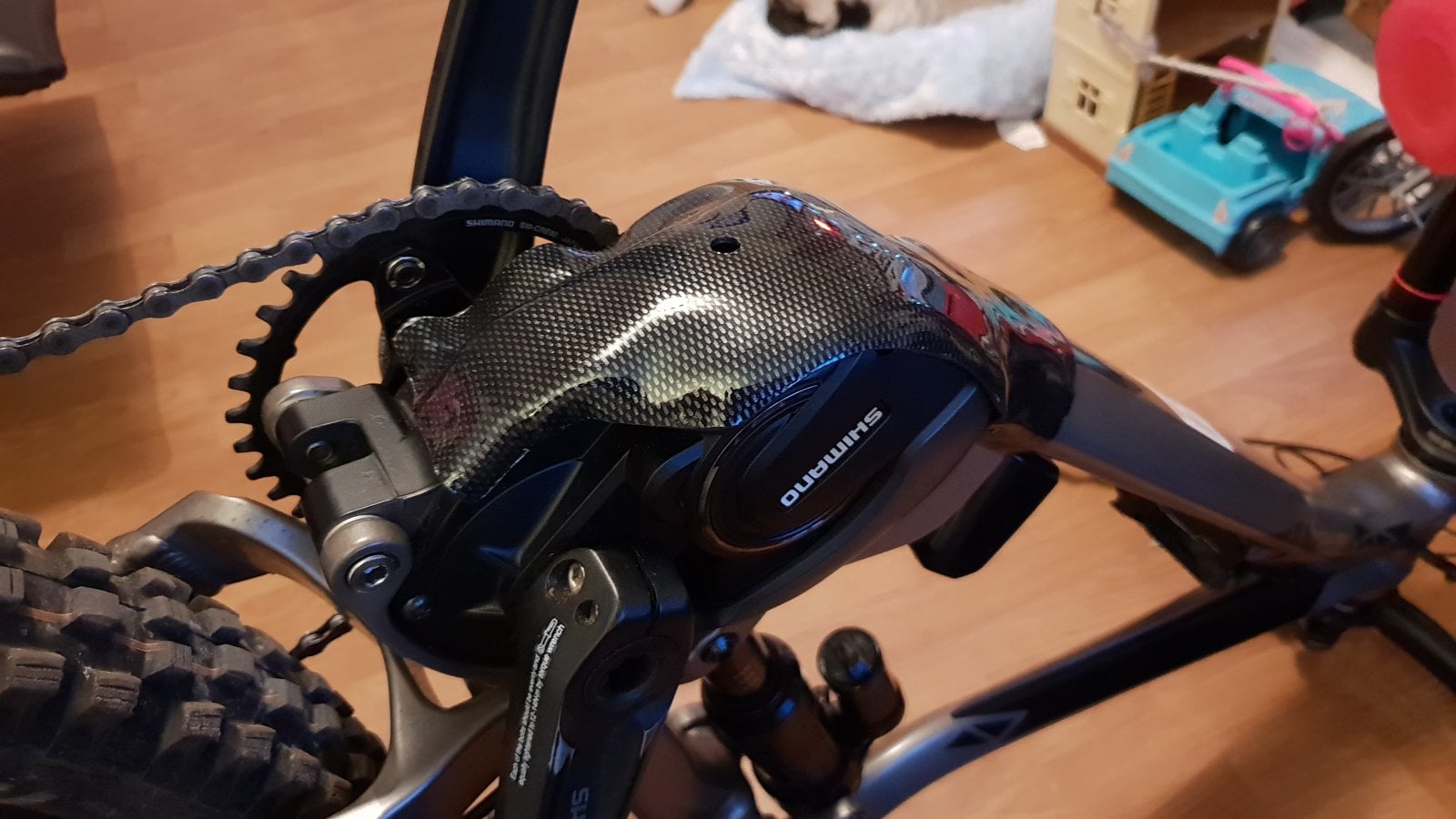

20180928_190103-jpg.5679

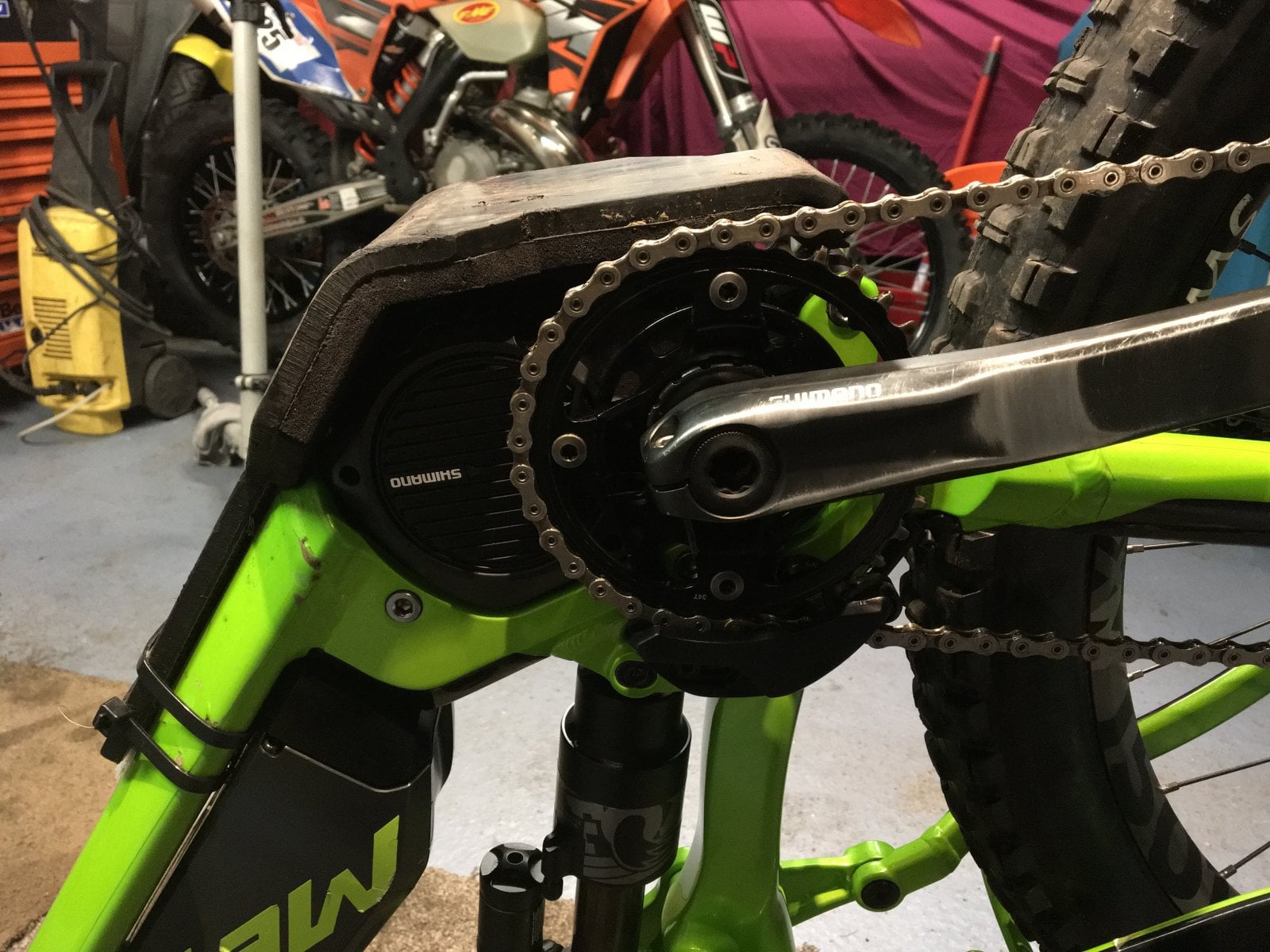

20180928_190055-jpg.5680


20180928_190111-jpg.5681

Sep 22, 2018
43
35
18
Oswestry
Ride
Levo comp
#2

mark.ai

E*POWAH Master
Patreon
Jul 10, 2018
96
64
118
49
Windermere
Ride
Lapierre
#3
Wow that is cool (y) Looks really smart!

Where did you get the plastic from to do that?

Sep 22, 2018
43
35
18
Oswestry
Ride
Levo comp
#5
I'd probably make one that didn't follow so many of the contours and make it smoother


R120

E*POWAH Elite World Champion
Patreon
Apr 13, 2018
1,244
807
343
Surrey
#7
I think you could have a cottage industry potential there!

Sep 22, 2018
43
35
18
Oswestry
Ride
Levo comp
#9
Will post a link in a bit, I'm going to make another one but make I go further up the frame. This will give the down tube more protection and also it helps the guard to clip to the frame so only have to use a small amount of velcro under the guard

Sep 22, 2018
21
18
13
South Australia
Ride
DWNHLLPRO
#10
Y
Will post a link in a bit, I'm going to make another one but make I go further up the frame. This will give the down tube more protection and also it helps the guard to clip to the frame so only have to use a small amount of velcro under the guard
Yh great idea im thinking about making the same for my haibike looks great

Apr 6, 2018
91
41
18
San antonio, Tx
#13
I'm thinking you just lay the plastic on top and heat with heat gun to get it to take the shape of the motor? Am I close. I want to do this.

Sep 22, 2018
43
35
18
Oswestry
Ride
Levo comp
#14
Excellent, I've been looking for a solution for my shimano motor. How do you form the material. Looked on youtube and they use vacuum forming
machines. Must be a diy method. Thanks.
You have to heat small sections of the plastic and form it manually over the motor and frame bit by bit. Takes a while but is a good solution. I'm going to do another one as the first one was a bit wonky

Sep 22, 2018
43
35
18
Oswestry
Ride
Levo comp
#15
Just don't heat it whilst on the bike! You have to remove it, heat it until its floppy, and then quickly re apply to the frame to mould

And use thick leather gloves or you'll burn your hands


OldBean

Active member
Apr 28, 2018
108
44
38
East anglia
Ride
Focus Jam 2
#16
You have to heat small sections of the plastic and form it manually over the motor and frame bit by bit. Takes a while but is a good solution. I'm going to do another one as the first one was a bit wonky
Could you do a video as you do it ...would help us cack handed lot.
Well done.(y)

Sep 22, 2018
43
35
18
Oswestry
Ride
Levo comp
#18
Excellent idea!
How will you fix it to the bike?
It's taped at the moment. But it does clip on around the frame at the front. But just needs some double sided sticky 3m velcro and that will be spot on

Oct 6, 2018
6
5
3
Uk
Ride
Merida e160
#19
I make and now sell Merida motor guards. They are indestructible and protect the chainring.
e9898ad4-0c4b-4d7e-8ebf-c7182fcee8dd-jpeg.5990

Apr 6, 2018
91
41
18
San antonio, Tx
#20
I make and now sell Merida motor guards. They are indestructible and protect the chainring. View attachment 5990
I need for a commencal meta power. looks almost identical. Can you take more pics of top, an back under the chainring and off the bike. Where are you selling and how much. Thanks.

Oct 6, 2018
6
5
3
Uk
Ride
Merida e160
#21
I need for a commencal meta power. looks almost identical. Can you take more pics of top, an back under the chainring and off the bike. Where are you selling and how much. Thanks.
I have a special bracket to fit Shimano motors. This will be the same on all bikes but I would need to measure the rest of the frame to see if my guard would fit. I’ve only fitted it to a Merida so far. I have a web site to sell them from but it’s not live yet. I am selling them through PayPal for £55 UK pounds including worldwide postage.

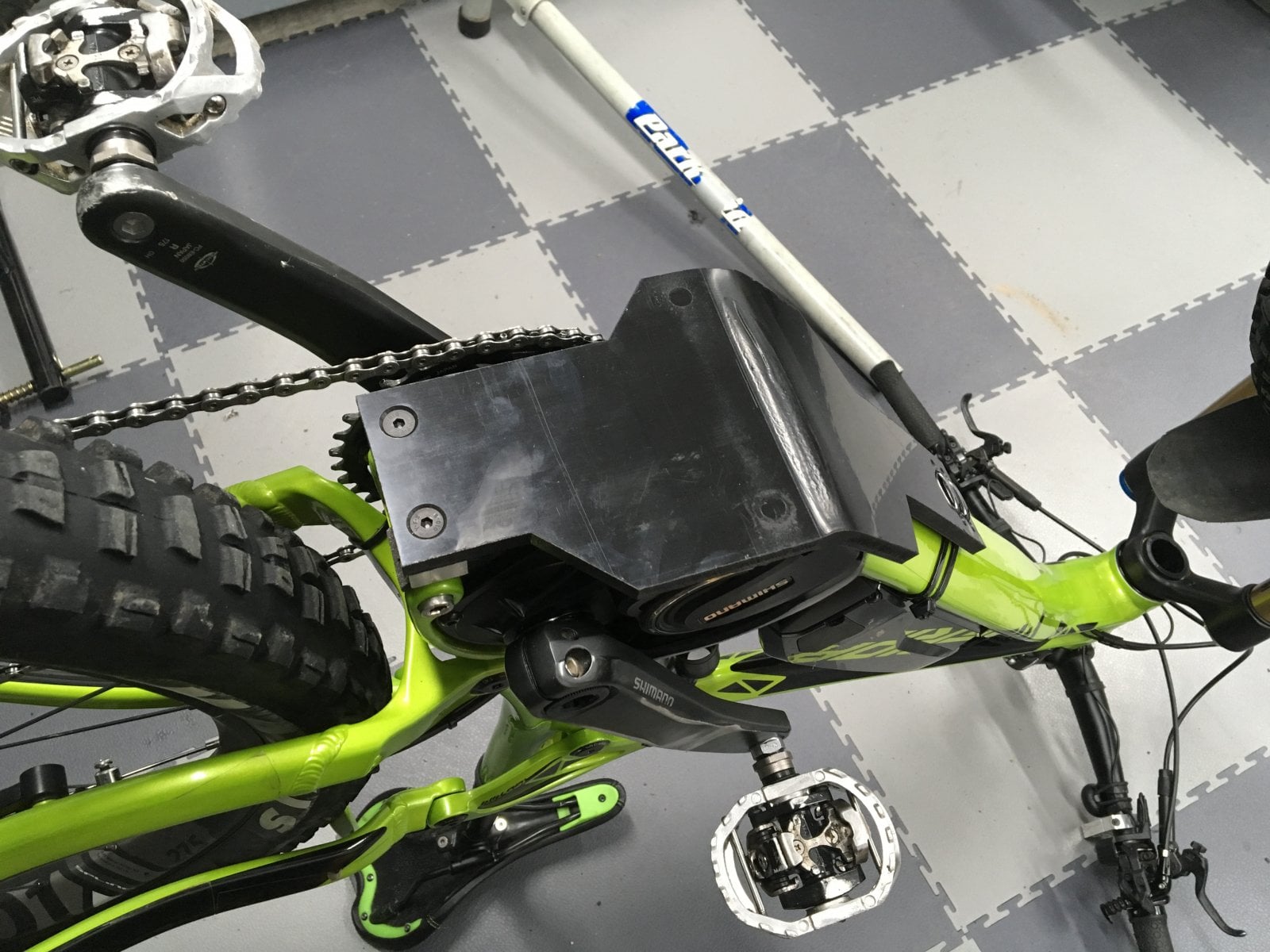

7c11e30f-7f8e-4e98-b61f-1116f39d3485-jpeg.6018


drjarvis2003

Active member
Jul 4, 2018
154
40
28
glasgow
Ride
merida
#22
I have a special bracket to fit Shimano motors. This will be the same on all bikes but I would need to measure the rest of the frame to see if my guard would fit. I’ve only fitted it to a Merida so far. I have a web site to sell them from but it’s not live yet. I am selling them through PayPal for £55 UK pounds including worldwide postage.

View attachment 6018
Whats that you have bolted it onto at the back?

Apr 6, 2018
91
41
18
San antonio, Tx
#27
Are there two different ones, in one pic flat bottom and in another a curved bottom towards the back of the motor. The curved one looks like it would work on my commencal. I have two screw holes at the back.


R120

E*POWAH Elite World Champion
Patreon
Apr 13, 2018
1,244
807
343
Surrey
#30
I am going to ask Rockguardz if they can use the bash guard on my Vitus as a template for for a universal one
