Levo Gen 3 Gen 3 latest update - AXS gear field not working

Baron

Active member
Nov 2, 2018
119
51
UK
Uploaded the latest update and the “Bike Lock” works great. The AXS gear field however just looks like this. Is it supposed to work straight away or have I missed something.



ebikerider

Active member
Oct 1, 2019
706
484
Australia
I honestly don't get the need for such a wealth on info on a screen for an ebike in use. Yeah I guess I can possibly see guys downloading it after the ride and analysing the data for their own personal reasons (whatever they may be) but in use....Can I ask why you want the gears displayed?

Battery level....mode and maybe a clock. IMO that's all that's needed.


Baron

Active member
Nov 2, 2018
119
51
UK
I honestly don't get the need for such a wealth on info on a screen for an ebike in use. Yeah I guess I can possibly see guys downloading it after the ride and analysing the data for their own personal reasons (whatever they may be) but in use....Can I ask why you want the gears displayed?

Battery level....mode and maybe a clock. IMO that's all that's needed.
It’s a function Specialized are advertising, just want it to work.


j.e.

Active member
Jun 29, 2020
82
37
Germany
Someone wrote, that it worked after he disconnected the axs system from the bike in the axs app. I didnt't try it yet.


Doomanic

🛠️Wrecker🛠️
Patreon
Founding Member
Jan 21, 2018
8,746
10,438
UK
I’ve uploaded the new software, that’s all I’ve done. The bike lock function worked straight away, haven’t done anything else
That’s why it isn’t working then…


1. Turn on bike
2. Enter setup menu of MasterMind display (keep +/- buttons on remote pressed)
3. Navigate to: Sensors / Pair ANT / Shifting
4. Confirm "Shifting" with F1 remote button
5. Press AXS rear derailleur button once to pair RD to MasterMind TCU
6. Make sure pairing to AXS is confirmed on MasterMind display
7. Open Mission Control and connect to bike
8. Go to TUNE and CUSTOMIZE DISPLAY
9. Create AXS display field to see AXS data on MasterMind display


Baron

Active member
Nov 2, 2018
119
51
UK
That’s why it isn’t working then…


1. Turn on bike
2. Enter setup menu of MasterMind display (keep +/- buttons on remote pressed)
3. Navigate to: Sensors / Pair ANT / Shifting
4. Confirm "Shifting" with F1 remote button
5. Press AXS rear derailleur button once to pair RD to MasterMind TCU
6. Make sure pairing to AXS is confirmed on MasterMind display
7. Open Mission Control and connect to bike
8. Go to TUNE and CUSTOMIZE DISPLAY
9. Create AXS display field to see AXS data on MasterMind display
Thanks very much, I will have a crack at that later on.


Zimmerframe

MUPPET
Subscriber
Jun 12, 2019
14,030
20,823
Brittany, France
There is another thread on this and some people who've had a problem pairing have found that removing the derailleur and then holding it next to the TCU for pairing gets around the problem. In some environments possibly there's interference.

You can put it back to ride ..... ;)


Baron

Active member
Nov 2, 2018
119
51
UK
There is another thread on this and some people who've had a problem pairing have found that removing the derailleur and then holding it next to the TCU for pairing gets around the problem. In some environments possibly there's interference.

You can put it back to ride ..... ;)
I’ll give it ago, 👍


MM5K

Member
Jan 24, 2022
52
72
Bay Area
I tried to pair many times, and it also kept failing. I did finally get it to work though - I just kept repeatedly shifting back and forth at the paddle while it was searching. Didn't have to remove the derailleur.


j.e.

Active member
Jun 29, 2020
82
37
Germany
There is another thread on this and some people who've had a problem pairing have found that removing the derailleur and then holding it next to the TCU for pairing gets around the problem. In some environments possibly there's interference.

You can put it back to ride ..... ;)

lol. thats way too much hassle.....


Stealth-biker

Member
Jul 8, 2021
10
10
Belgium
That’s why it isn’t working then…


1. Turn on bike
2. Enter setup menu of MasterMind display (keep +/- buttons on remote pressed)
3. Navigate to: Sensors / Pair ANT / Shifting
4. Confirm "Shifting" with F1 remote button
5. Press AXS rear derailleur button once to pair RD to MasterMind TCU
6. Make sure pairing to AXS is confirmed on MasterMind display
7. Open Mission Control and connect to bike
8. Go to TUNE and CUSTOMIZE DISPLAY
9. Create AXS display field to see AXS data on MasterMind display
Did mine also like described and it’s works simple as peace of cake 👌


Stealth-biker

Member
Jul 8, 2021
10
10
Belgium
Had to take off the AXS unit and put it next to the TCU for it to connect.
Strange….but if you follow thes descriptions below it’s so easy done….

1. Turn on bike
2. Enter setup menu of MasterMind display (keep +/- buttons on remote pressed)
3. Navigate to: Sensors / Pair ANT / Shifting
4. Confirm "Shifting" with F1 remote button
5. Press AXS rear derailleur button once to pair RD to MasterMind TCU
6. Make sure pairing to AXS is confirmed on MasterMind display
7. Open Mission Control and connect to bike
8. Go to TUNE and CUSTOMIZE DISPLAY
9. Create AXS display field to see AXS data on MasterMind display


Baron

Active member
Nov 2, 2018
119
51
UK
Strange….but if you follow thes descriptions below it’s so easy done….

1. Turn on bike
2. Enter setup menu of MasterMind display (keep +/- buttons on remote pressed)
3. Navigate to: Sensors / Pair ANT / Shifting
4. Confirm "Shifting" with F1 remote button
5. Press AXS rear derailleur button once to pair RD to MasterMind TCU
6. Make sure pairing to AXS is confirmed on MasterMind display
7. Open Mission Control and connect to bike
8. Go to TUNE and CUSTOMIZE DISPLAY
9. Create AXS display field to see AXS data on MasterMind display
Did all that but the TCU wouldn’t find the derailleur. The other way worked for me, very happy with the update.


Gyre

Well-known member
Jan 25, 2021
630
422
Pasadena, CA
I tried to pair many times, and it also kept failing. I did finally get it to work though - I just kept repeatedly shifting back and forth at the paddle while it was searching. Didn't have to remove the derailleur.
Moving the mech next to the TCU didn't work for me, but shifting back and forth as recommended by @MM5K worked fine. Go figure.


Guitarcrckr

New Member
Sep 15, 2022
2
1
USA
Made an account to say thank you for the pairing suggestions! The device distance was the issue(carbon blocks signals as well), instead of removing the derailleur, I removed the Display and gently pulled the cables all the way out. That got me half way to the derailleur which was close enough to pair. Only needed the T10 bit for that :), don't forget to hold sync button down till it flashes.


DuncanDoughnuts

Active member
Apr 2, 2018
321
175
Cape Town/JHB/Rippon

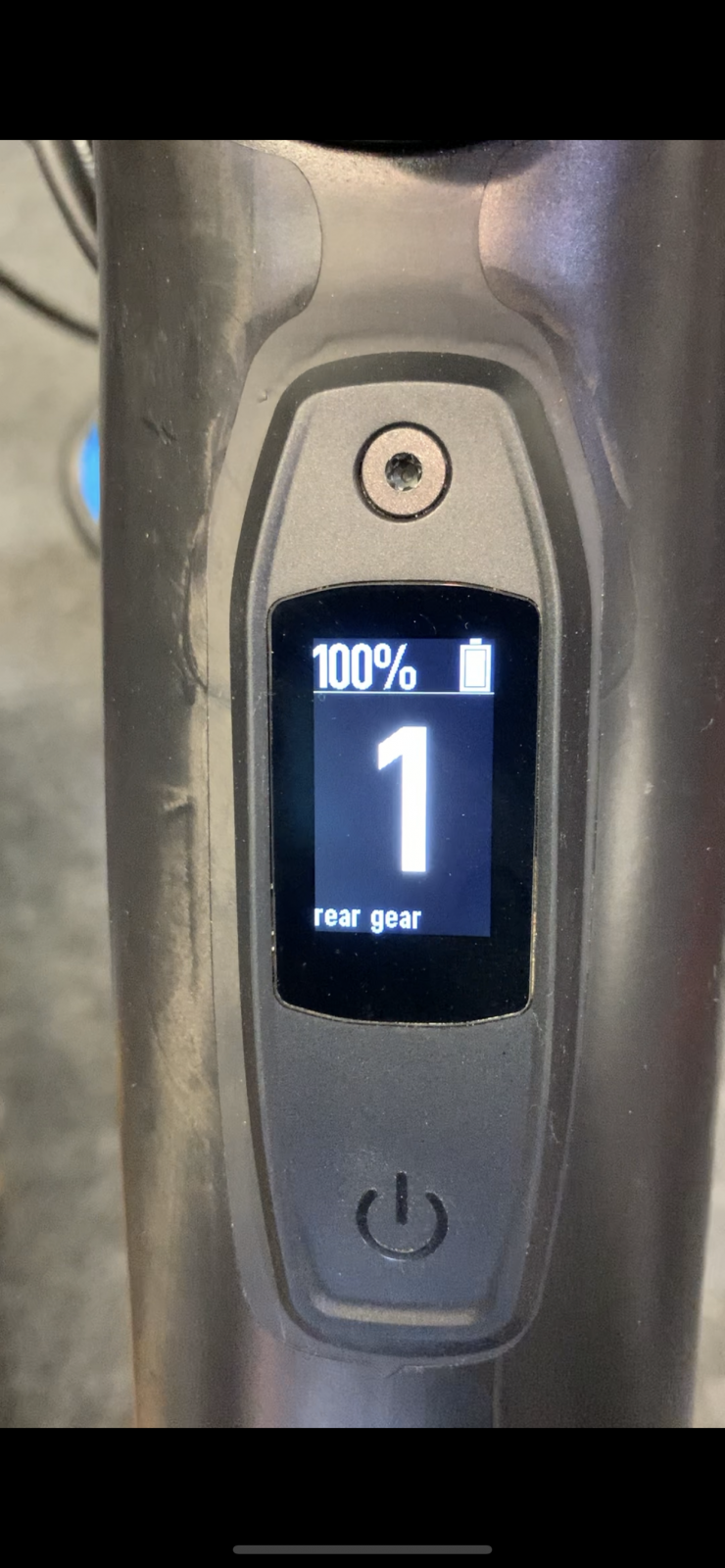

Got mine to work, shows the gear I'm in and the battery charge...
the problem however is it shows 100% until it doesn't .... so went from 100% to Low battery warning (20%) nothing in-between .
