Cube Stereo 160 S 750 2022 Specs Modifications

[BeBiker]

I mounted the toolbag to the saddle.
The front strap goes around the inner tube, no scratches or damage till now.
There's no other acceptable place on this bike.



[rop12770]

Who expected this? 10% price drop.
Did they go from undercapacity to overproduction, or does everybody want the 2023 model ?

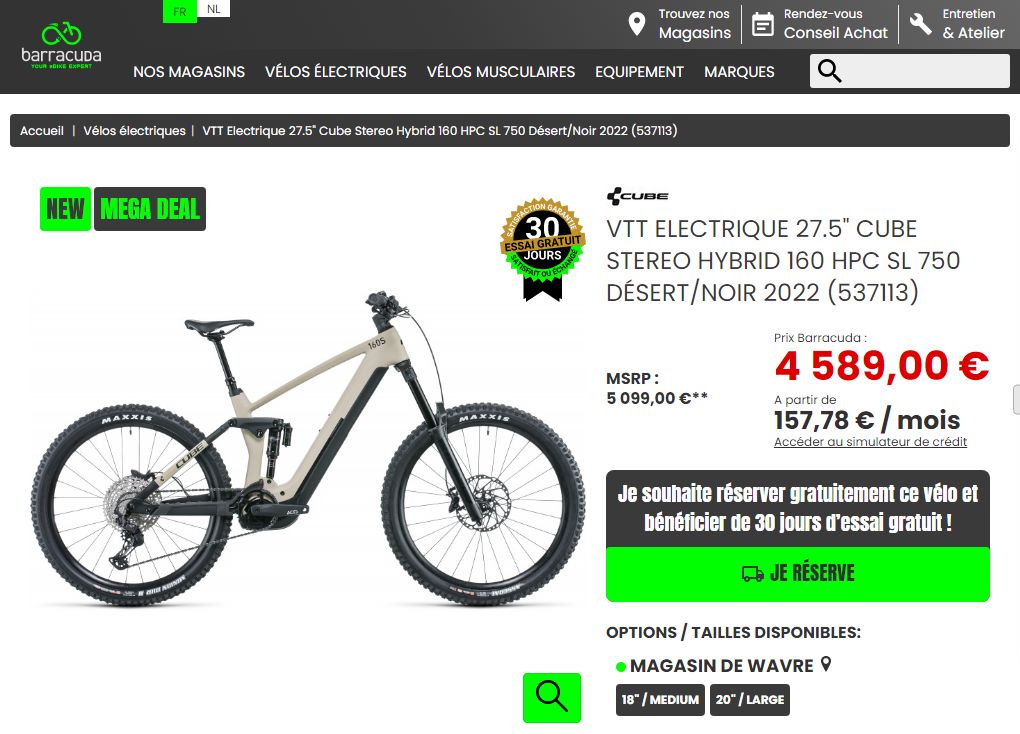

VTT Electrique 27.5" Cube Stereo Hybrid 160 HPC SL 750 Désert/Noir 2022 (537113) - Barracuda - Spécialiste du Vélo et du VTT électrique

VTT Electrique 27.5" Cube Stereo Hybrid 160 HPC SL 750 Désert/Noir 2022 (537113) Que ce soit en montée ou en descente, rien ne pourra vous arrêter au guidon de ce Stereo Hybrid 160 HPC SL ! Il fa...

www.barracuda.be

View attachment 102981

Here in Portugal we had a VAT decrease from 23% to 6%, starting in January.
That made bikes a lot cheaper now.



[BeBiker]

Sad that your goverment still steals 6%.
But good news, it has to start somewhere !



[BeBiker]

Since the beginning, the bike falls out completely every +-100km.
No warning, no error, unrelated to asphalt, jumps, cobblestone,...
When restarting, that always works instantly.
The bike has been in the shop for this: Update, blabla, didin't change a thing.

Until last week, then it was unable to restart, sometimes falls out again after 5 seconds, falling out 10 times in a row,...
but I was able to make it home.



[BeBiker]

Let's check for bad connections:

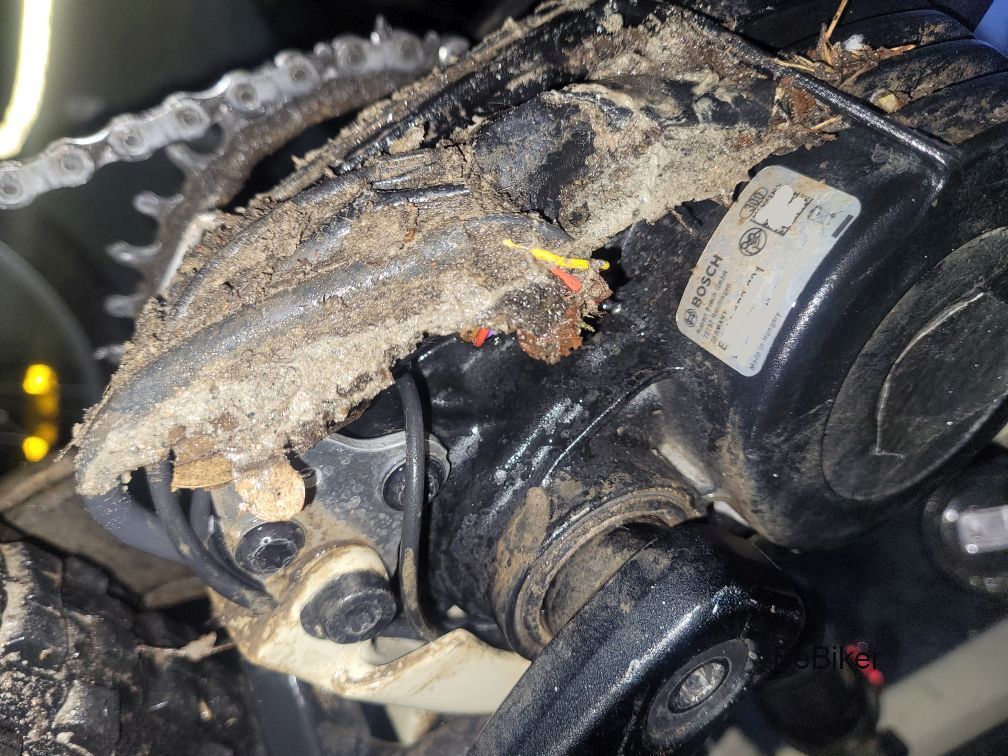

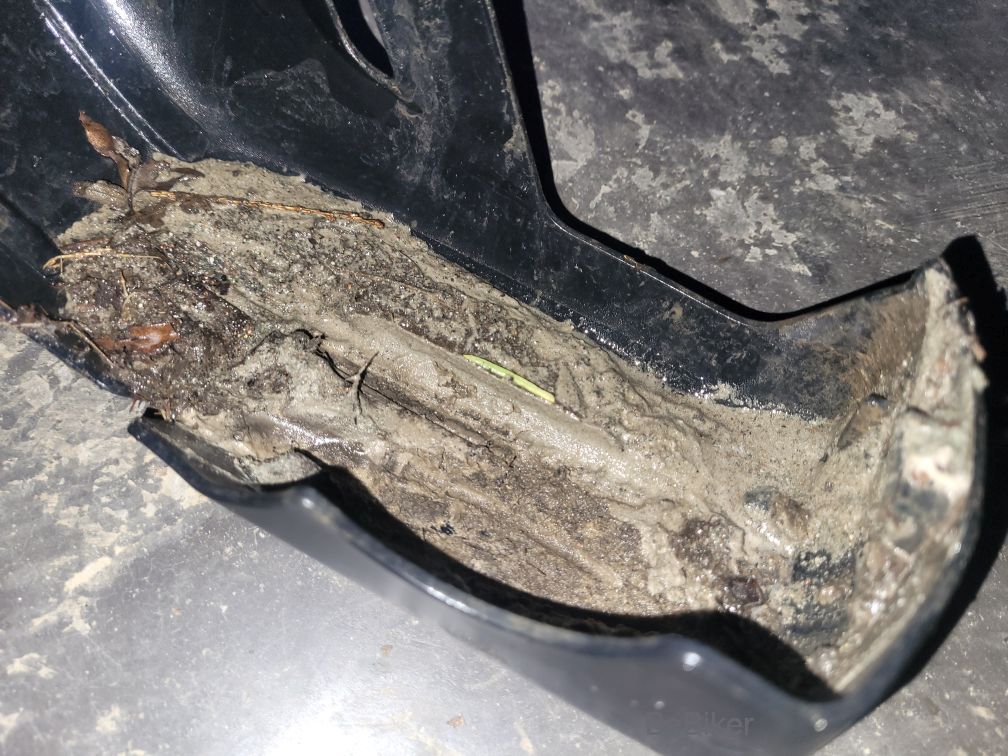

The original bashguard: >2cm of mud, sand, dirt

Upside down, the motor and connectors:

I cleaned everything, pulled out the connectors, cleaned that, problem solved.



[Hanzzzie]

Oooooof..... wtf....

I take that part out to clean after every muddy ride



[Hanzzzie]

Btw... Mine had the same just shutting down without any errors/messsages... was the battery
happened after 30-40'ish km's, sometimes quicker, sometimes completely nothing happened...
also unrelated to road/forest/singletracks/...



[BeBiker]

Btw... Mine had the same just shutting down without any errors/messsages... was the battery
happened after 30-40'ish km's, sometimes quicker, sometimes completely nothing happened...
also unrelated to road/forest/singletracks/...

Did they give you a new battery ?



[Hanzzzie]

Did they give you a new battery ?

After 2 months in without my bike and me complaining that firmware reload would not fix it, yes



[Eliadn]

I'm checking your pictures again, what bike stand do you use?



[BeBiker]

I'm checking your pictures again, what bike stand do you use?

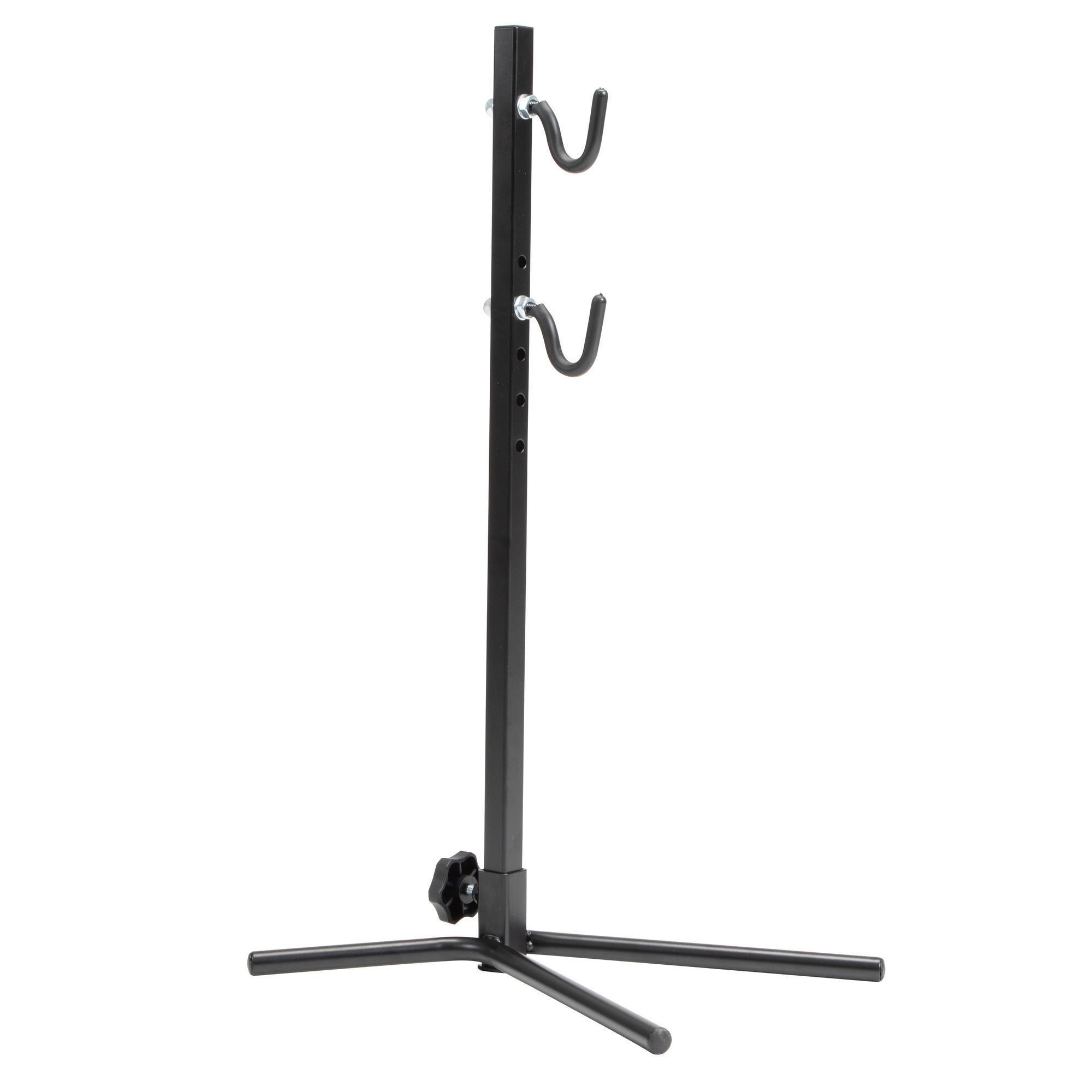

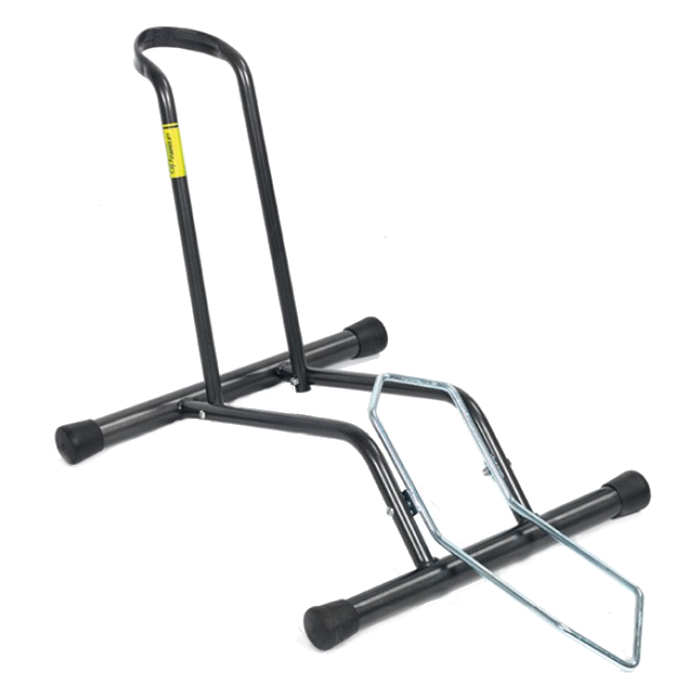

These ones, Stabilus and Decathlon, depending on the task:

https://www.bike24.com/p2526150.html

Fietsenrek kopen? | DECATHLON

Welkom bij Decathlon ! Ontdek ons uitgebreid gamma Rekken.

www.decathlon.be



[BeBiker]

Impossible to look up which derailleur hanger is mounted on our Cube.
They all go by names like: Cube standard, Cube 160, universal,...

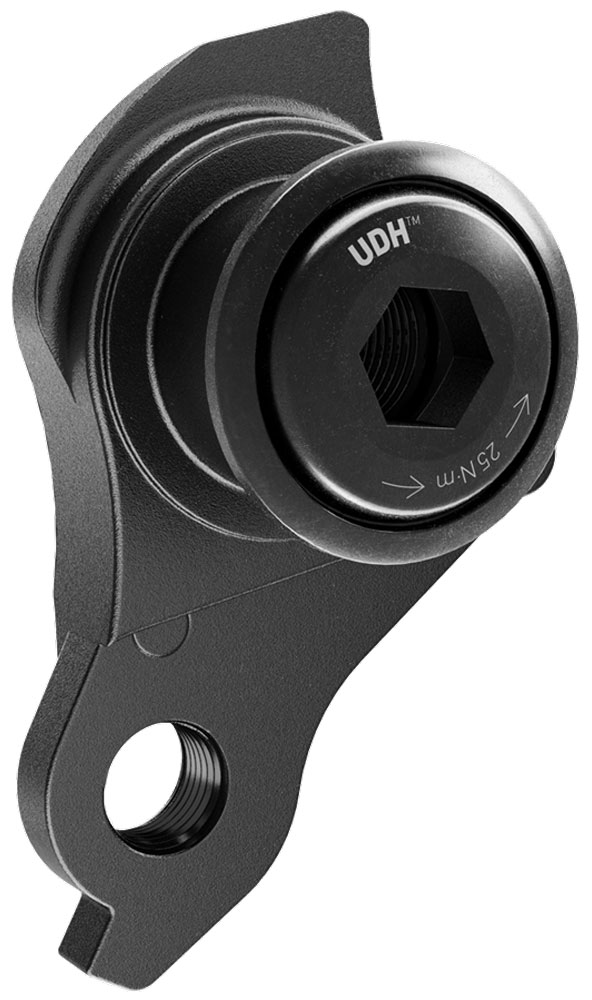

So I took it off, it's this one: Sram UDH

UDH Universal Aluminum Derailleur Hanger

Features - Universal Derailleur Hanger The Universal Derailleur Hanger – or UDH – consolidates thousands of mountain bike derailleur standards It offers unparalleled derailleur protection. And perfect alignment....

www.bike-discount.de

Now I'm ordering spares, the speed sensor is the 615mm one:

Slim Speed Sensor

Product Line Compatibility - Bosch Speed Sensor Slim (BCH3319) smart system model year 2022 Note: Function only guaranteed with original magnet 1270015727/-728 or EB11120000! Length (choose variant) 415 mm 615 mm...

www.bike-discount.de

The power cable is the 500mm one.
I need this in case one day I need warranty.



[E-MAD MALC]

The crank arms are 165mm long.
Touching the ground with the pedals is a brand new experience to me
I plan to install 152 or 155mm.

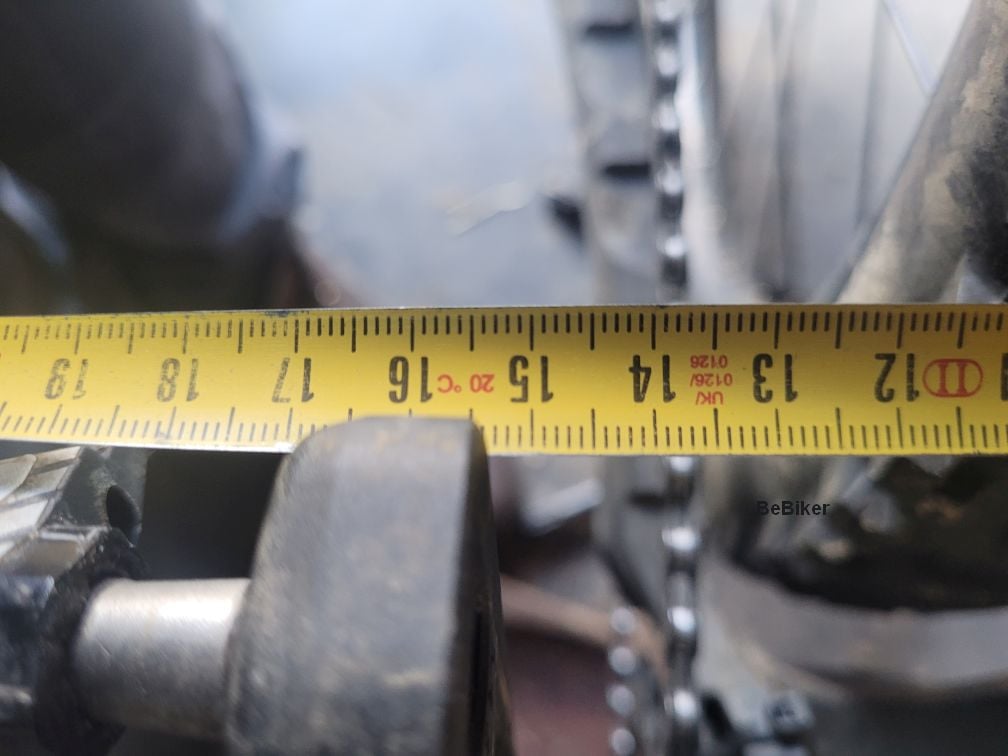

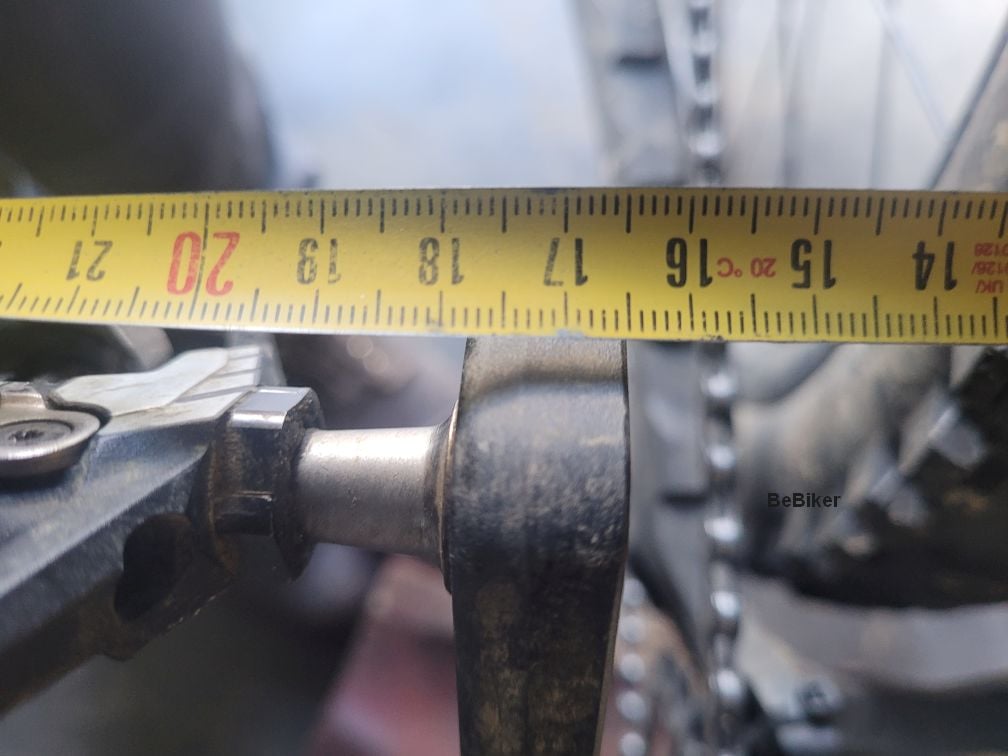

Inbetween the cranks there is 153mm, Outside between the recessed surfaces +-175

View attachment 89749

View attachment 89750

This seems to fit:

Coppia pedivelle per Bosch Gen4 CK-220 155mm FSA Trasmissione E-bike,

- In alluminio pressofuso - Standard ISIS drive - Compatibile con Bosch Gen4 - bulloni NON inclusi - Peso 505gr Trasmissione E-bike, Pedivelle per E-bikes , Prezzo 37.3EU

www.ridewill.it

FSA E-Bike CK-220/IS Crank Arms (Bosch Gen4/Yamaha PWX/Brose) | Westbrook Cycles

<ul> <li>Die cast alloy crank arms</li> <li>Length: 155, 160, 165, 170, 175mm</li> <li>ISIS Drive</li> <li>Black, Printed graphics</li> <li>Weight: 456g (pair)</li> </ul>

www.westbrookcycles.co.uk

Any experiences ?

Hi be biker
I when for 160mm e thirteens on mine seems to work OK for me
be biker



[E-MAD MALC]

The crank arms are 165mm long.
Touching the ground with the pedals is a brand new experience to me
I plan to install 152 or 155mm.

Inbetween the cranks there is 153mm, Outside between the recessed surfaces +-175

View attachment 89749

View attachment 89750

This seems to fit:

Coppia pedivelle per Bosch Gen4 CK-220 155mm FSA Trasmissione E-bike,

- In alluminio pressofuso - Standard ISIS drive - Compatibile con Bosch Gen4 - bulloni NON inclusi - Peso 505gr Trasmissione E-bike, Pedivelle per E-bikes , Prezzo 37.3EU

www.ridewill.it

FSA E-Bike CK-220/IS Crank Arms (Bosch Gen4/Yamaha PWX/Brose) | Westbrook Cycles

<ul> <li>Die cast alloy crank arms</li> <li>Length: 155, 160, 165, 170, 175mm</li> <li>ISIS Drive</li> <li>Black, Printed graphics</li> <li>Weight: 456g (pair)</li> </ul>

www.westbrookcycles.co.uk

Any experiences ?

Hi

Impossible to look up which derailleur hanger is mounted on our Cube.
They all go by names like: Cube standard, Cube 160, universal,...

So I took it off, it's this one: Sram UDH

UDH Universal Aluminum Derailleur Hanger

Features - Universal Derailleur Hanger The Universal Derailleur Hanger – or UDH – consolidates thousands of mountain bike derailleur standards It offers unparalleled derailleur protection. And perfect alignment....

www.bike-discount.de

View attachment 110450

Now I'm ordering spares, the speed sensor is the 615mm one:

Slim Speed Sensor

Product Line Compatibility - Bosch Speed Sensor Slim (BCH3319) smart system model year 2022 Note: Function only guaranteed with original magnet 1270015727/-728 or EB11120000! Length (choose variant) 415 mm 615 mm...

www.bike-discount.de

The power cable is the 500mm one.
I need this in case one day I need warranty.

Impossible to look up which derailleur hanger is mounted on our Cube.
They all go by names like: Cube standard, Cube 160, universal,...

So I took it off, it's this one: Sram UDH

UDH Universal Aluminum Derailleur Hanger

Features - Universal Derailleur Hanger The Universal Derailleur Hanger – or UDH – consolidates thousands of mountain bike derailleur standards It offers unparalleled derailleur protection. And perfect alignment....

www.bike-discount.de

View attachment 110450

Now I'm ordering spares, the speed sensor is the 615mm one:

Slim Speed Sensor

Product Line Compatibility - Bosch Speed Sensor Slim (BCH3319) smart system model year 2022 Note: Function only guaranteed with original magnet 1270015727/-728 or EB11120000! Length (choose variant) 415 mm 615 mm...

www.bike-discount.de

The power cable is the 500mm one.
I need this in case one day I need warranty.

Be Biker
I got the derailleur hanger from this company

Cube Derailleur Hanger 8652



[Arminius]

In deed complicated to find the drop out but this looks good for 2022 Cubes:
Table Drop Outs



[BeBiker]

Funny for my Cube 537113 they indicate the Radon Derailleur Hanger 8651, while the Sram UDH is installed.
Maybe compatible with both, and they installed another one due to the 2021/2022 stock shortages?

Your list can be very useful for the bearings also.



[Arminius]

Thank you. Having also a Cube 140 SteHy I started looking for a spare part when reading your post and got frustrated like you as even our German shops are not providing good guidance for looking up.
The table was found as linked pdf via gooogle but unfortunately there is no source info. Nevertheless it looks proper.



[BeBiker]

After seeing your file, I searched for the title of it "MY2022 Dropouts Bearings" and found another link, to a canadian Cube-website.

https://cube-bikes.ca/wp-content/uploads/2022/04/Derailleur-HangersBearing-Sets_2022.pdf

https://cube-bikes.ca/parts/

Our European websites only display "accessories" when searching for "parts"



[BeBiker]

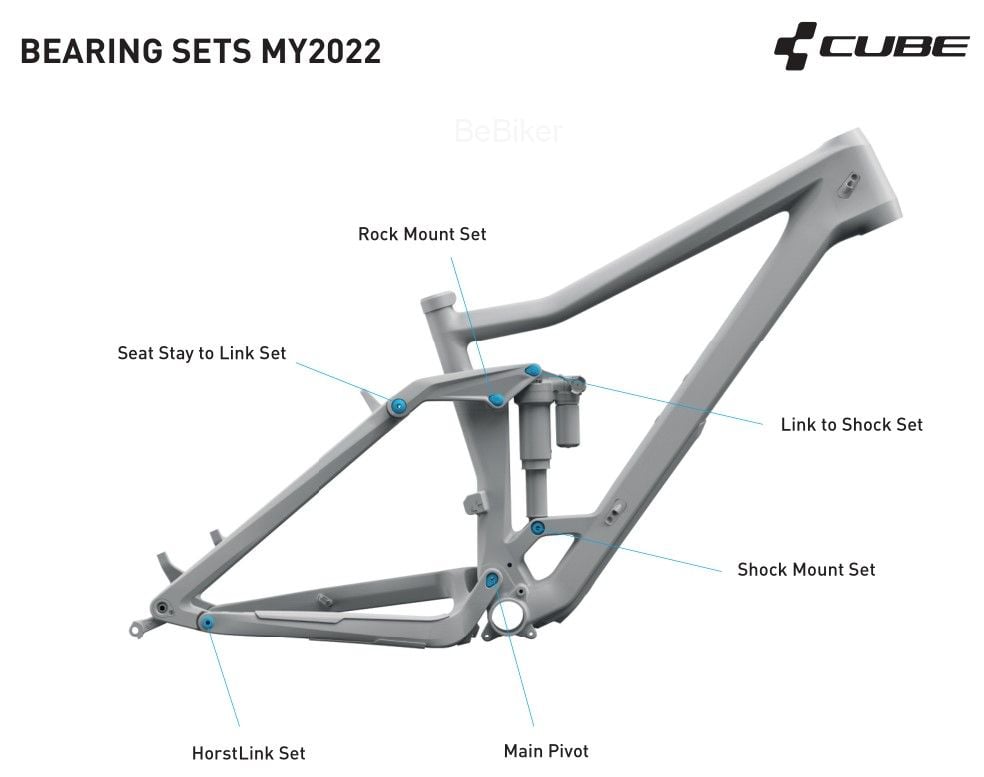

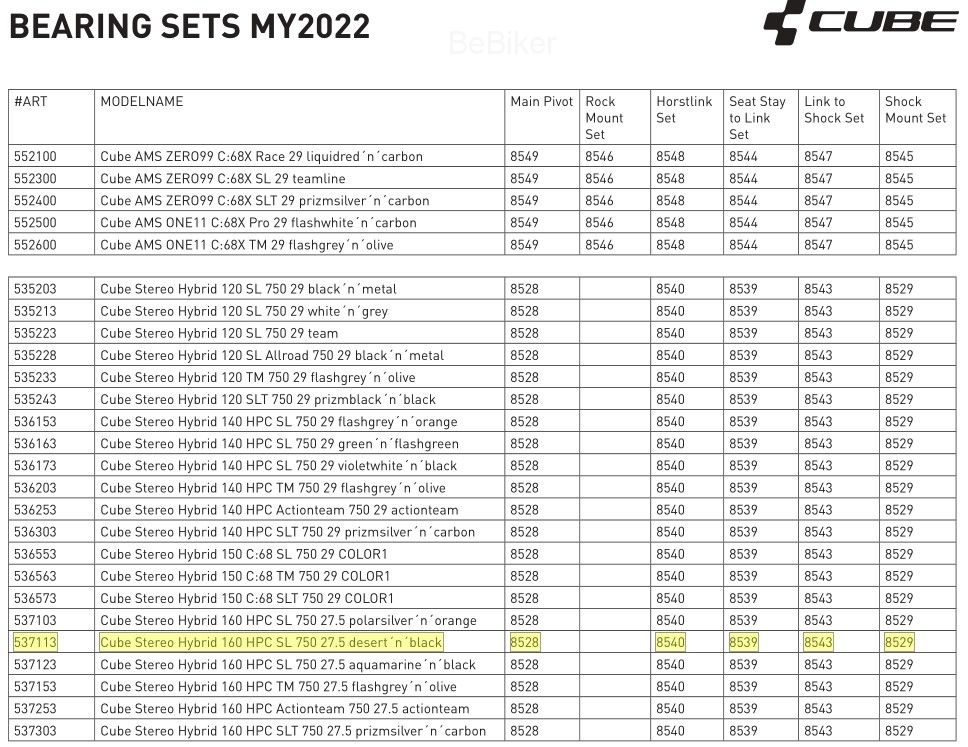

The contents of one of the pdf's:



[Bummers]

The contents of one of the pdf's:
View attachment 110592

View attachment 110593

Is this a cube internal part number? For ordering bearings is there a way to find out what sizes these are?



[BeBiker]

Those are Cube numbers of the set, which contains bearings, spacers, bolts.
Didn't find any further dimensions info, but at those prices I think just ordering the sets.



[E-MAD MALC]

Those are Cube numbers of the set, which contains bearings, spacers, bolts.
Didn't find any further dimensions info, but at those prices I think just ordering the sets.

Did you sort the rear Derailleur hanger out



[BeBiker]

Yes, ordered the Sram UDH I showed a bit higher on this page.



[BeBiker]

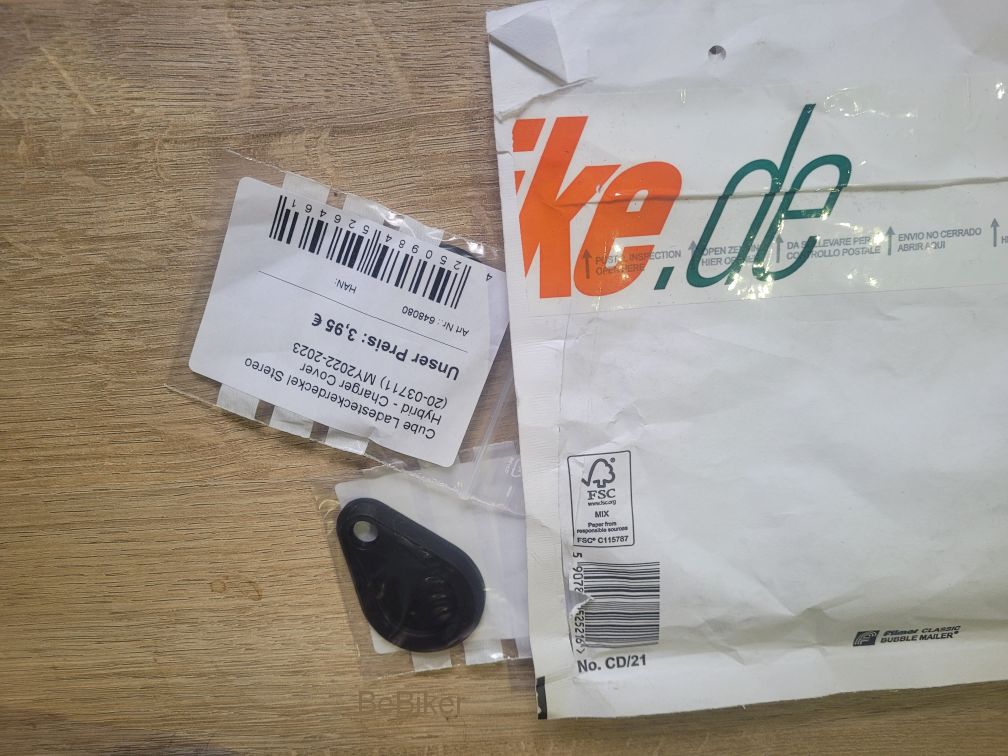

Cube Mount Charger Cover Stereo Hybrid (20-03711) MY2022-2023

Cube Mount Charger Cover Stereo Hybrid (20-03711) MY2022-2023 The Cube Charger Cover for Stereo Hybrid 2022-2023.

nanobike.de



[The Dietster]

View attachment 111103

Cube Mount Charger Cover Stereo Hybrid (20-03711) MY2022-2023

Cube Mount Charger Cover Stereo Hybrid (20-03711) MY2022-2023 The Cube Charger Cover for Stereo Hybrid 2022-2023.

nanobike.de

You get a new port and cover as a waranty at your dealer. Much improved version.



[BeBiker]

Oops didn't know that !
Do you have any pictures ?



[The Dietster]

Oops didn't know that !
Do you have any pictures ?

Looks pretty much same, but is way sturdier, stronger



[Arminius]

You get a new port and cover as a waranty at your dealer. Much improved version.

Do you have some more details what has been modified vs. the „old“ version:

Stereo Hybrid 2022 / 2023 - Tweaking cover / cap / lid of the charging port to prevent losing it

Hello, I had issues with the slidable closing lid of my 2022 Stereo Hybrid for the power connector. Sorry if the choosen definitions might not be correct. When sliding it to the side to open for charging the battery it came already two times off from the center screw. The overlapping of the...

www.emtbforums.com



[BeBiker]

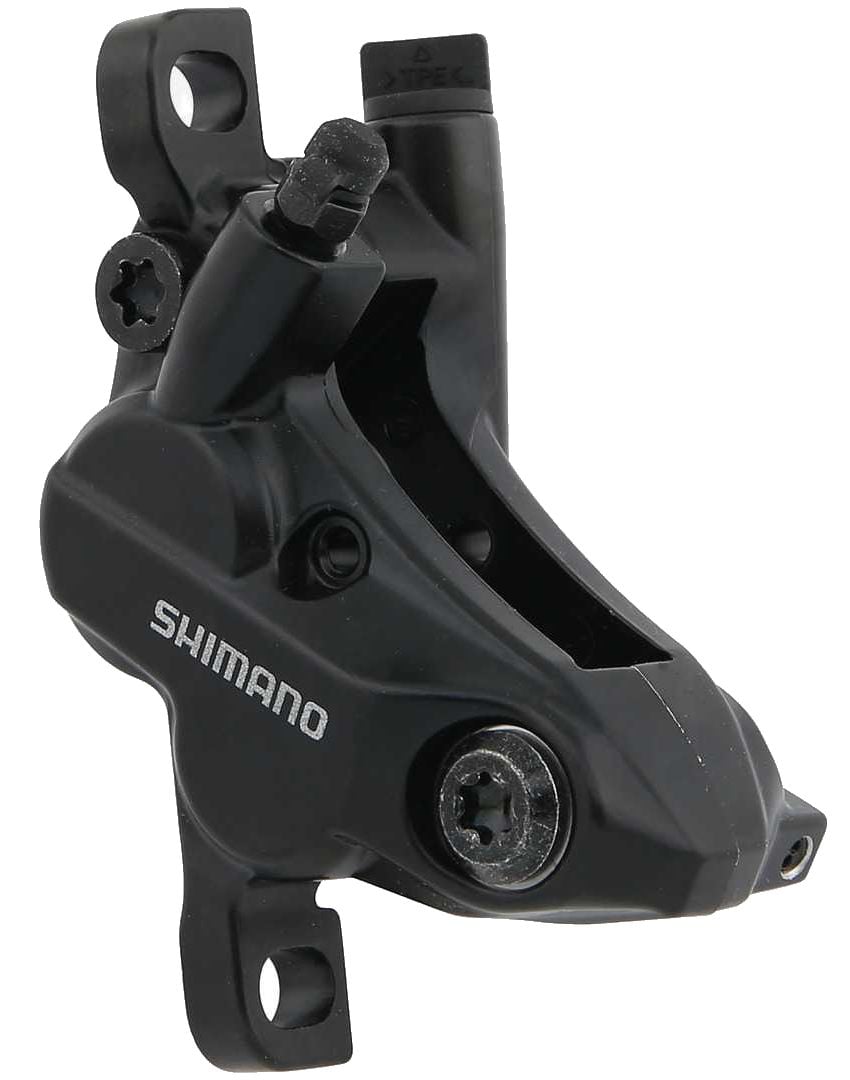

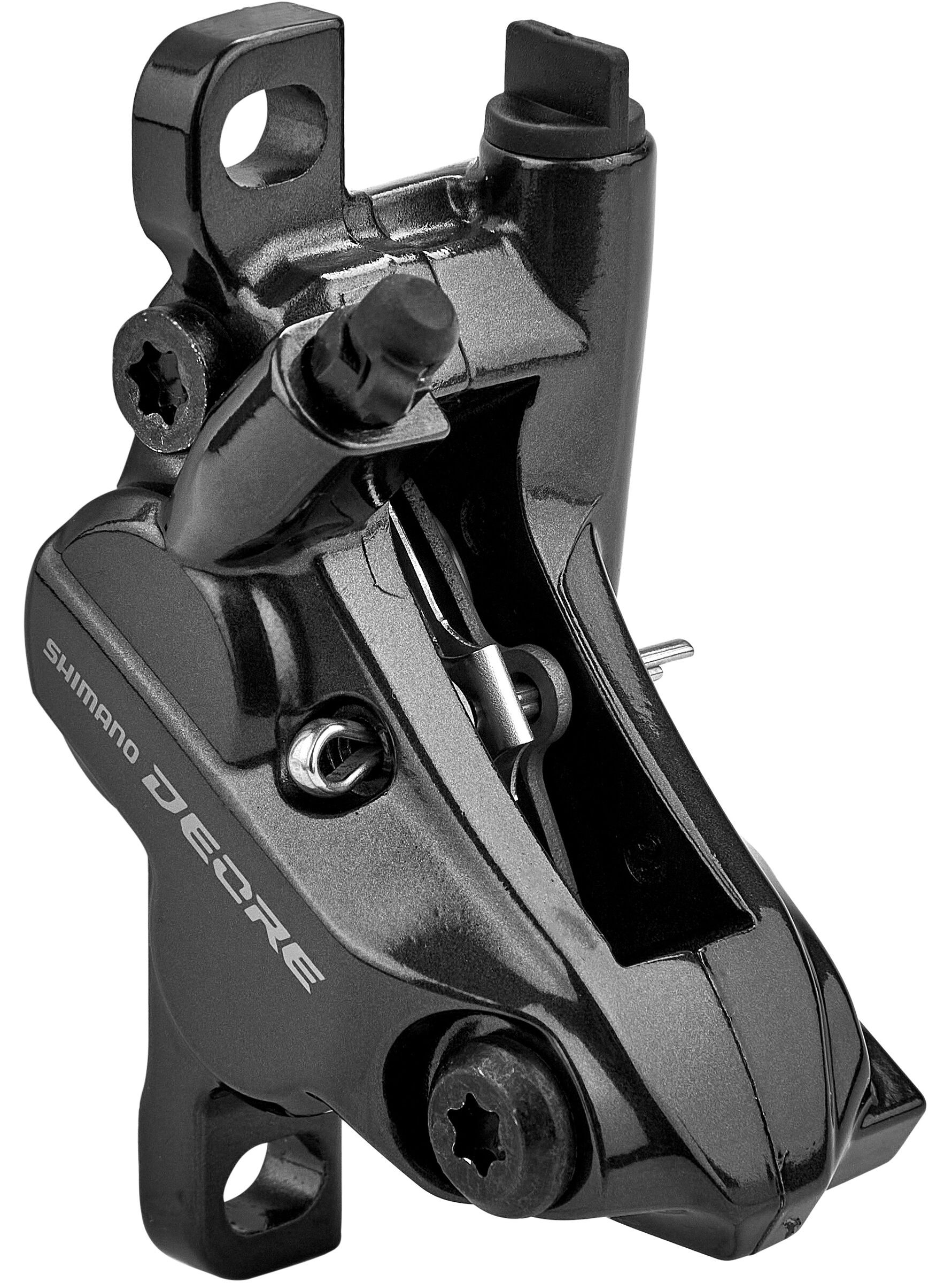

I always was a bit underwhelmed by the split pin in the Deore BR-M6120 MT520 brake caliper.

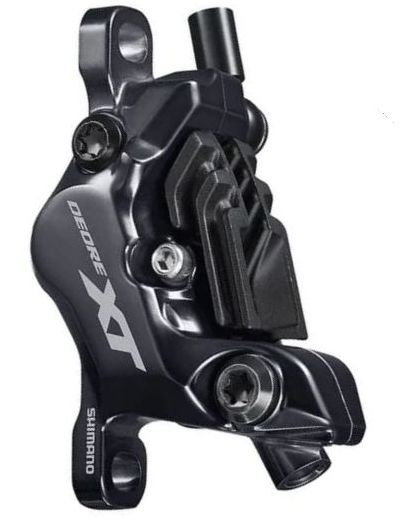

The Deore XT brakes, and even the Tektro brakes from my Decathlon Rockrider have a bolt with a clip on it.

Then stumbled upon a tread about the conversion on this forum:

Erfahrungen mit Shimano BR-MT520 4 Kolben Bremssattel?

Hallo, Wer hat Erfahrungen mit o.g. Bremse? Ist das ein Ableger von der XT 4 Kolben Bremse? Was ist über das Bremsverhalten und die Standfestigkeit im Vergleich zur Zee bzw. Saint zu sagen?

www.mtb-news.de

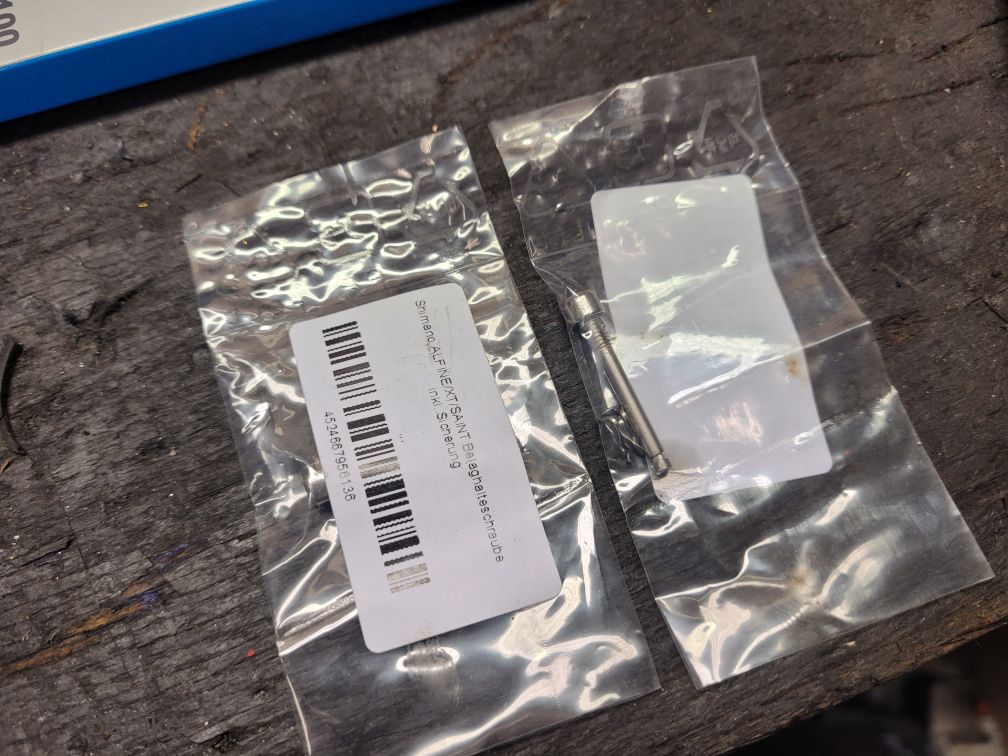

Alfine/XT/SAINT Pad Retaining Bolt and Snap Ring

Compatibility - Shimano Y8JZ98010 BR-M785 BR-M8000 BR-M8020 BR-M8100 BR-M8120 BR-T785 BR-M820 BR-S700 Color silver Weight approx. 2g Scope of delivery 1 x Shimano Pad Retaining Bolt 1 x...

www.bike-discount.de

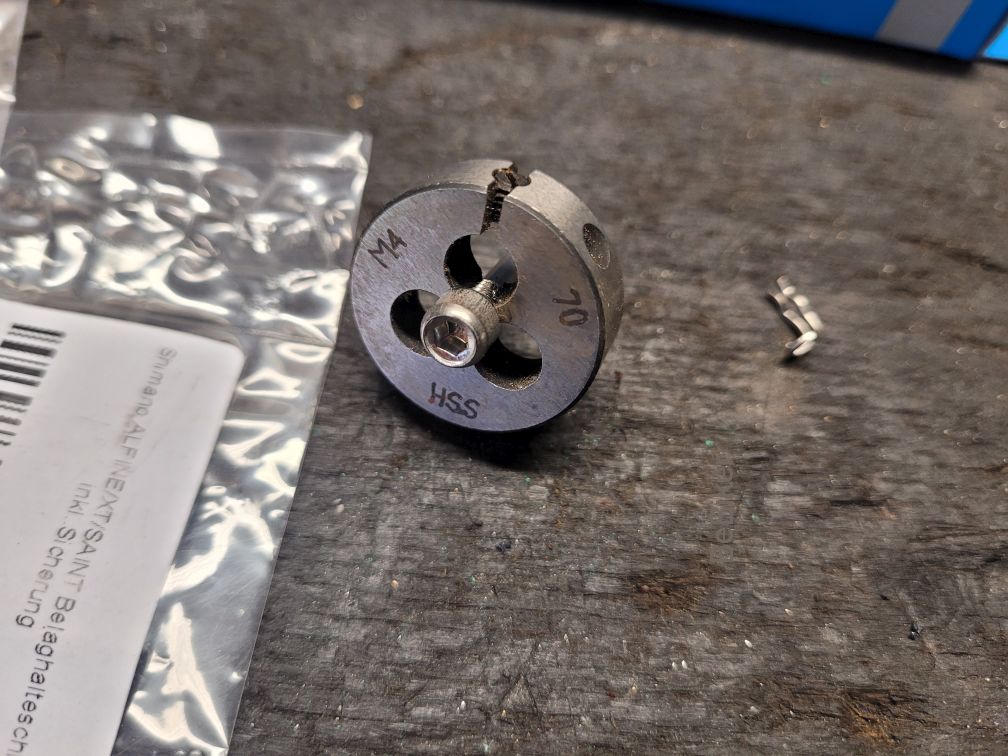

On the forum there was some confusion about the thread size, it's definitely M4

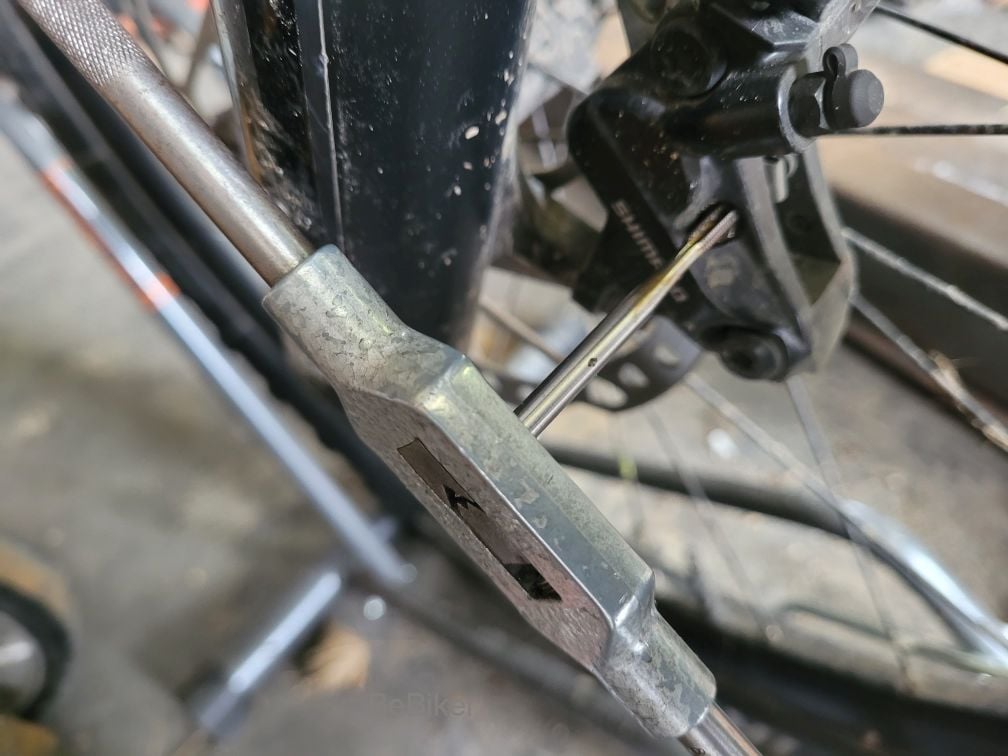

Scientific aligning, angle correction and positioning

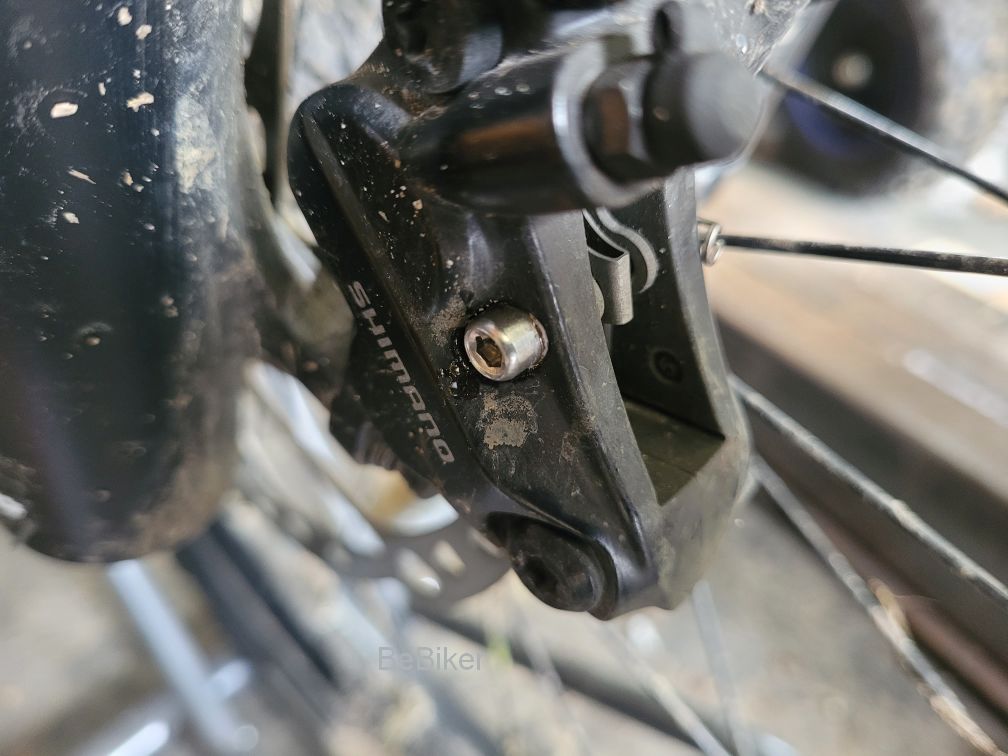

Bolt and clip in place, ready to go !



[Arminius]

Nice!
