Broken bottom connector BT-E8016

[norrit]

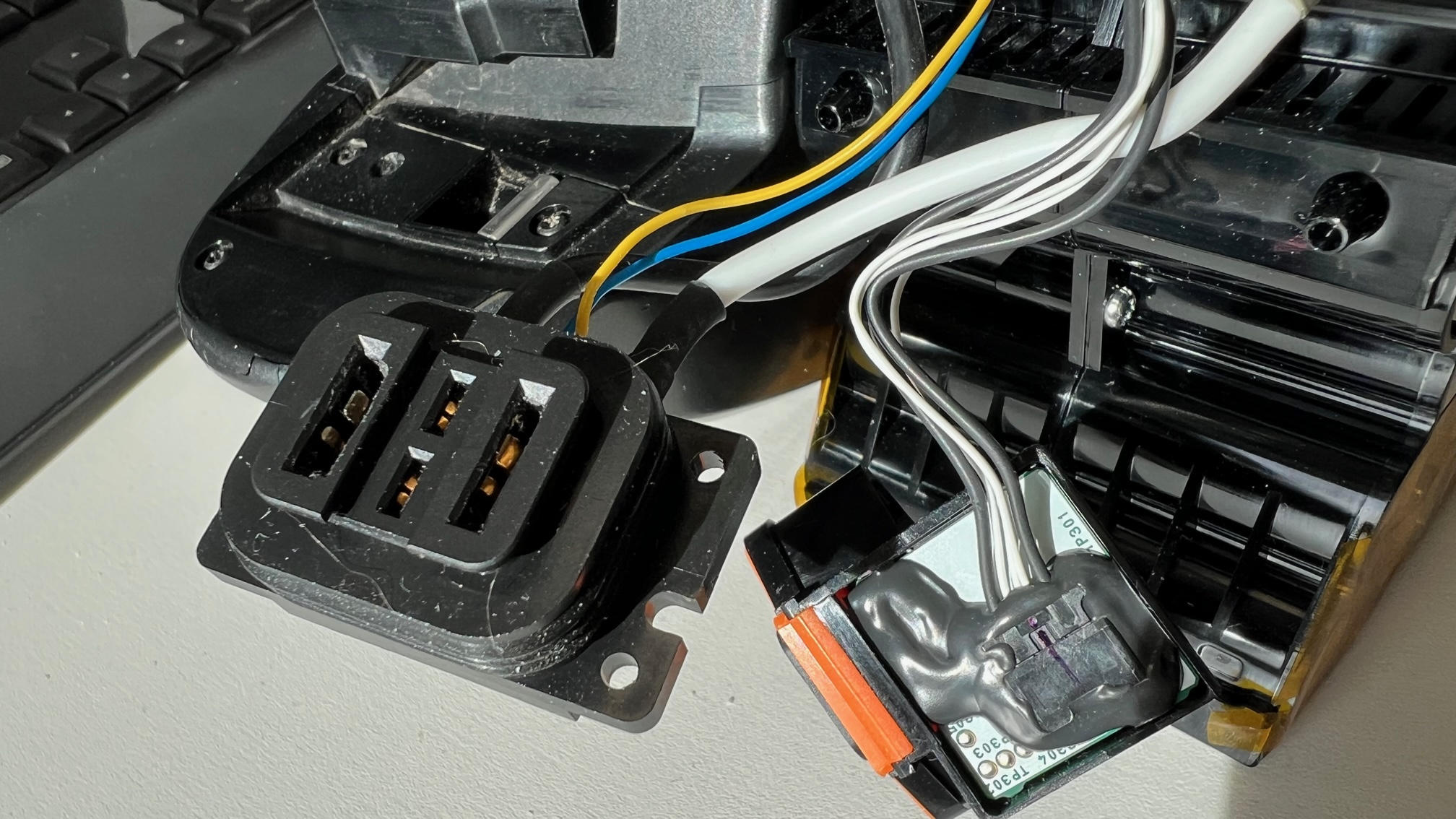

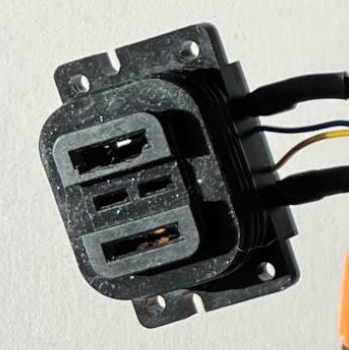

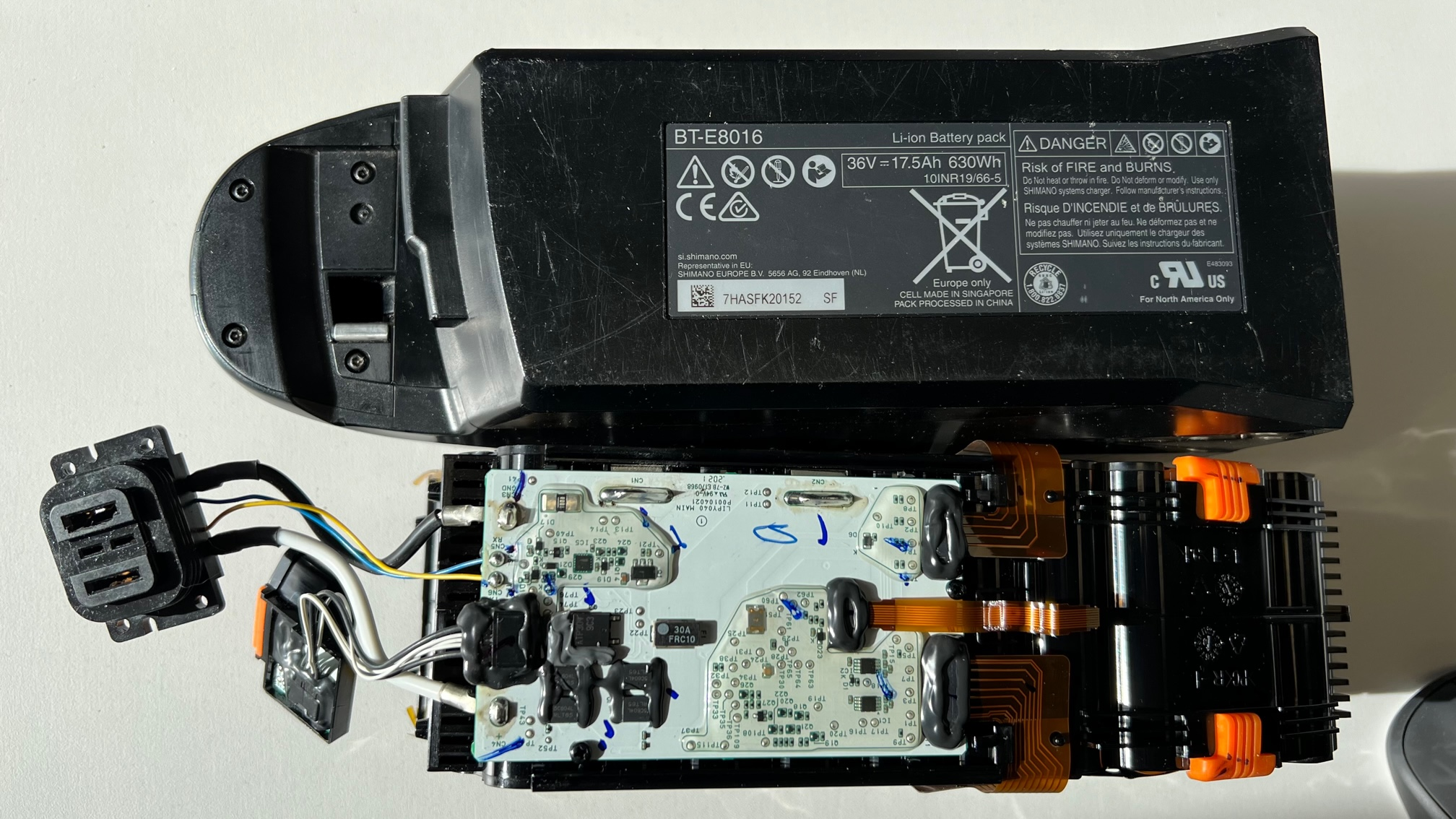

I need to replace the Bottom Connector of the BT-E8016 Batterie (i think BT-E8010 is the same)
Does anybody know where i can order this Part?



[norrit]

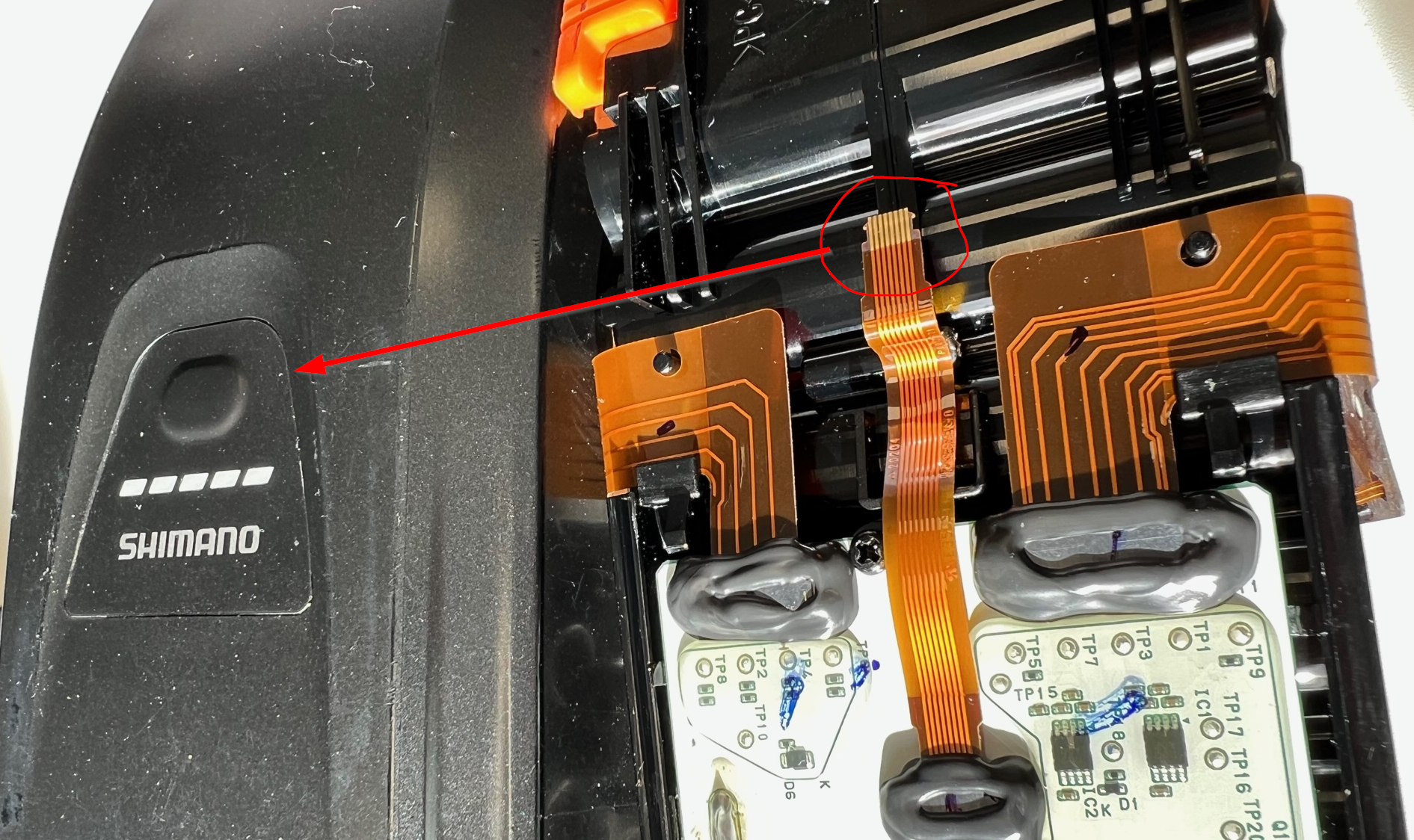

I actually can't imagine how I can plug the ribbon cable back into the ON-OFF switch ...



[robbydobs]

You can't order any spare parts for Shimano stuff. Maybe look for a worn out battery you can remove parts from?
Did you see the post about the battery re-cell? Looks like at least on the e8010 battery the on/off switch is on the mainboard of the battery so nothing to re-connect. Can the switch be removed from the case shell and connected?

What cells are in the battery out of interest?



[SchiFoarn]

View attachment 109723

I actually can't imagine how I can plug the ribbon cable back into the ON-OFF switch ...

Did you end up working out how to do it?
I got the same issue....



[norrit]

Did you end up working out how to do it?
I got the same issue....

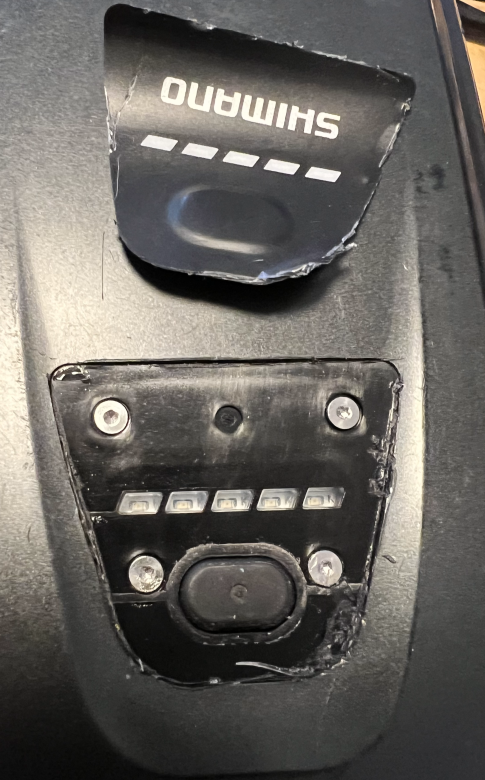

yes the screws are just hidden under a sticker ;-)



[SchiFoarn]

yes the screws are just hidden under a sticker ;-)

sticker ? where ? over the power button on the case?
so what would the steps be afterwards?
thanks for the prompt reply



[norrit]

sticker ? where ? over the power button on the case?
so what would the steps be afterwards?
thanks for the prompt reply

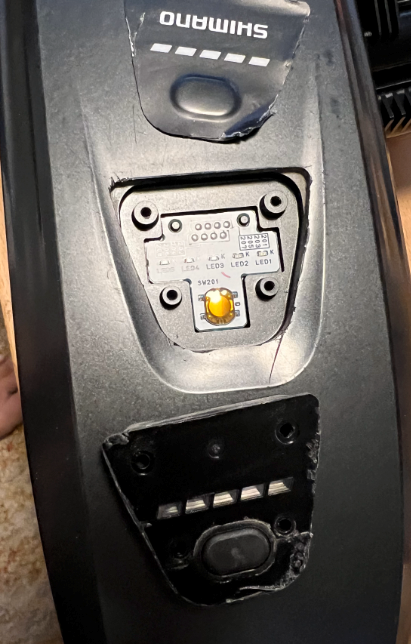

just remove carefully the Sticker over the Power Button with a Knife and you will see



[SchiFoarn]

an ahhhha moment !!!
just one more thing how did you guide it in to the cover to get to the right spot - any tricks for that too

thanks again this has helped heaps



[norrit]

an ahhhha moment !!!
just one more thing how did you guide it in to the cover to get to the right spot - any tricks for that too

thanks again this has helped heaps

i don't remember ... slowly put in and fishing at the right moment with tweezer somehow ... was'nt to hard i think



[SchiFoarn]

thanks, much appreciated
Vielen dank und Servus
