Bafang DPC241 on 35mm bars

Kiwikev

Member
Jan 11, 2022
9
6
Auckland, New Zealand

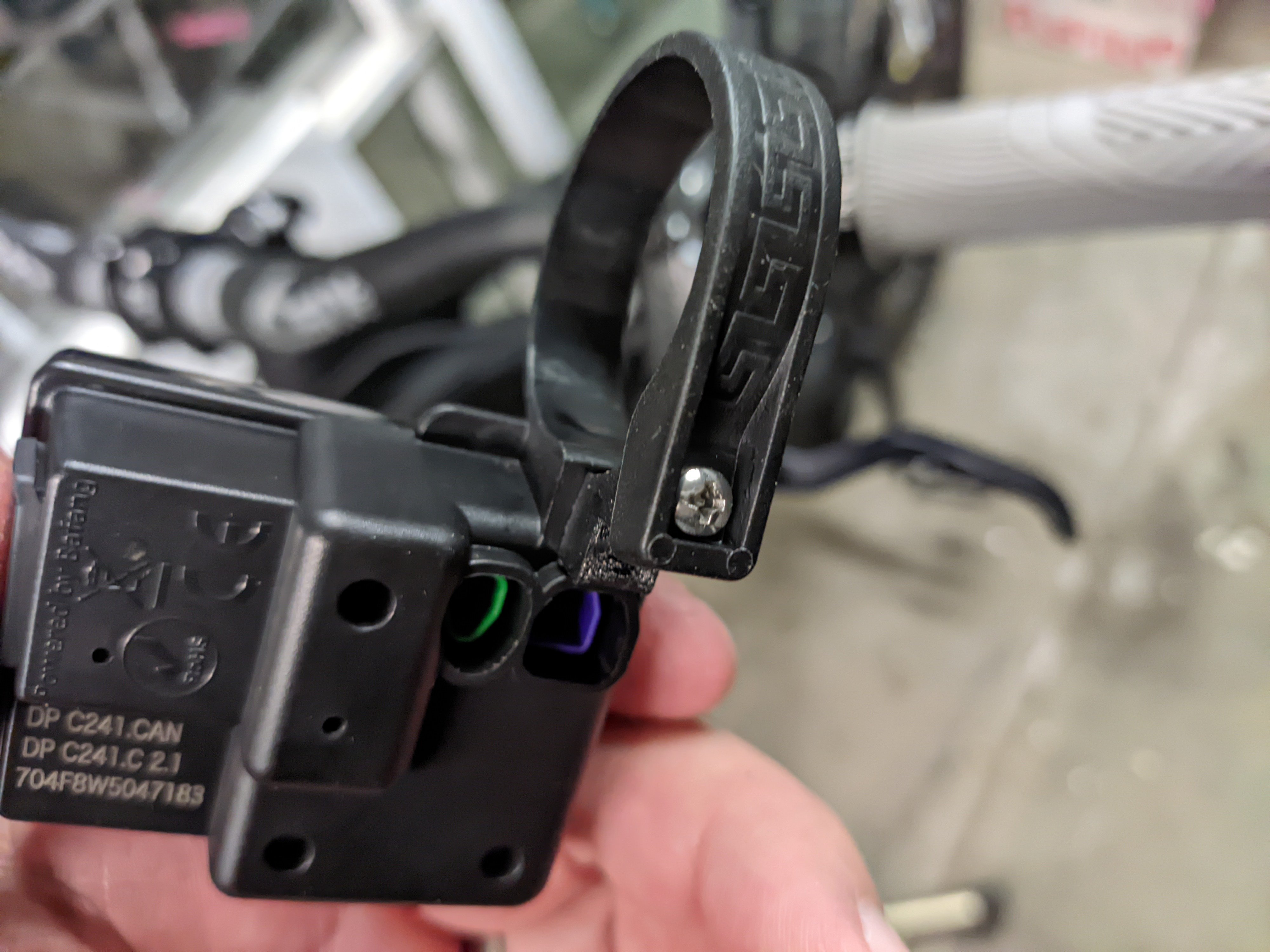

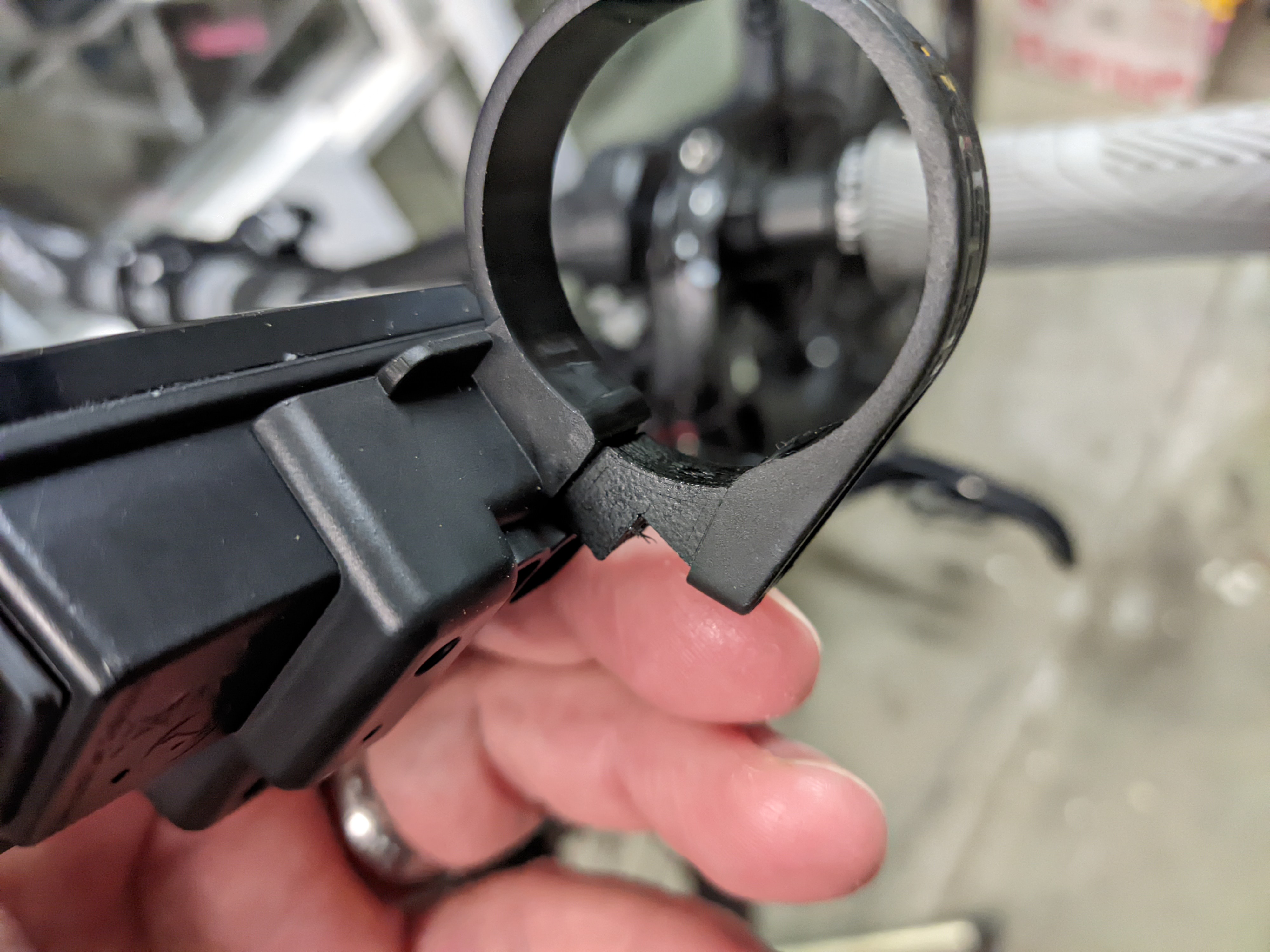

Seen as there is an issue with the clamp breaking if overtightened or not fitted with care does anyone have one fitted to 35mm bars without any problems - does the clamp fit well or does it need to be bent to accommodate the extra width?


thaeber

Well-known member
Jan 26, 2021
887
769
Bruchsal, Germany
Seen as there is an issue with the clamp breaking if overtightened or not fitted with care does anyone have one fitted to 35mm bars without any problems - does the clamp fit well or does it need to be bent to accommodate the extra width?

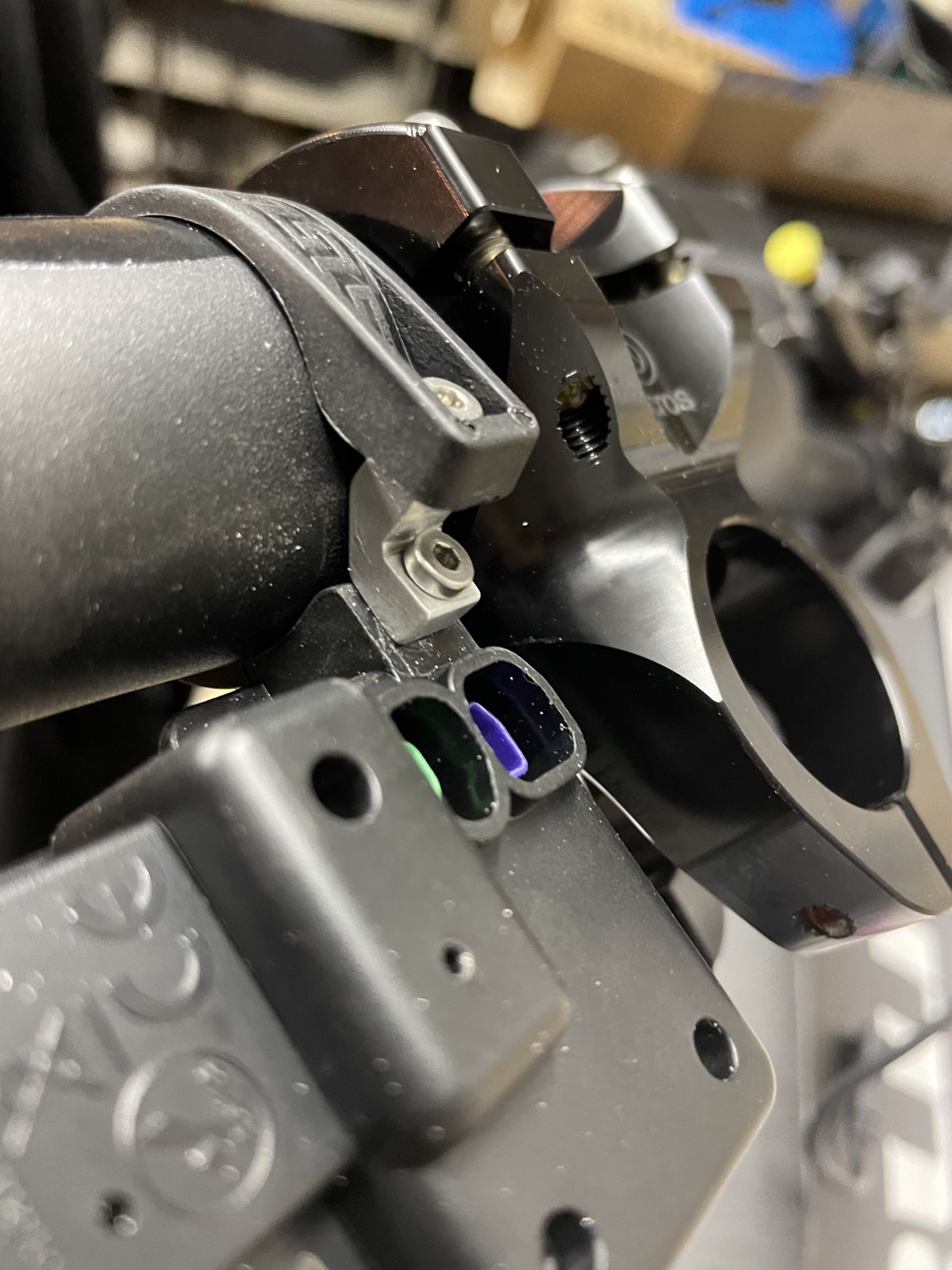

My solution, 35 mm doesn’t fit…



AlexRus

Member
Mar 30, 2019
64
32
Russia
Seen as there is an issue with the clamp breaking if overtightened or not fitted with care does anyone have one fitted to 35mm bars without any problems - does the clamp fit well or does it need to be bent to accommodate the extra width?
there are two versions, there is also for 35mm


BastR

New Member
Aug 1, 2022
4
3
France
there are two versions, there is also for 35mm

Hi
Can't find the 3D file for a 35mm handlbar


vext

Member
Aug 11, 2022
70
40
Los Angeles
I had the same issue with different display and here's how I solved it.



Basically I modified this thing I found on Amazon: Spacer Mount

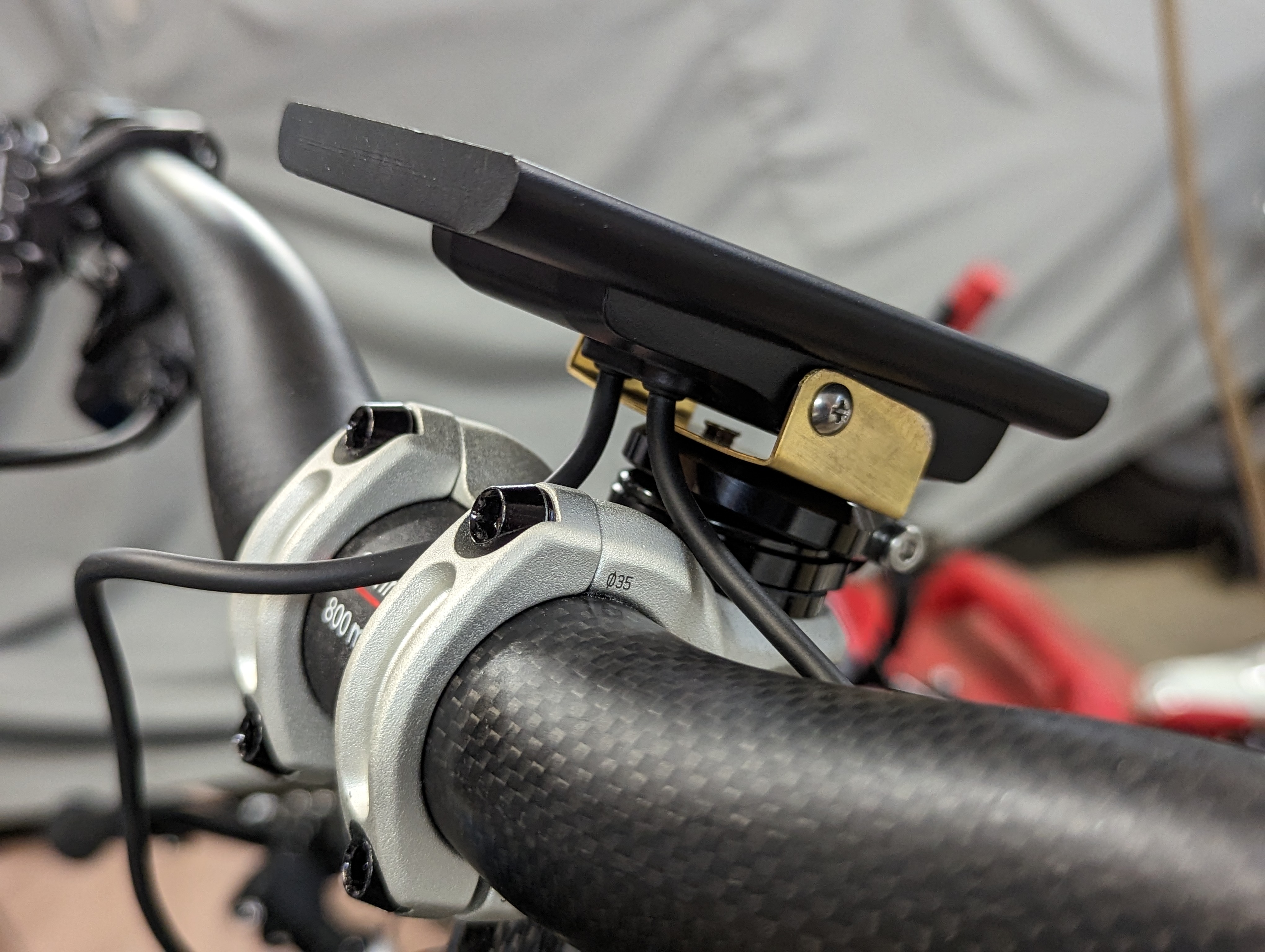

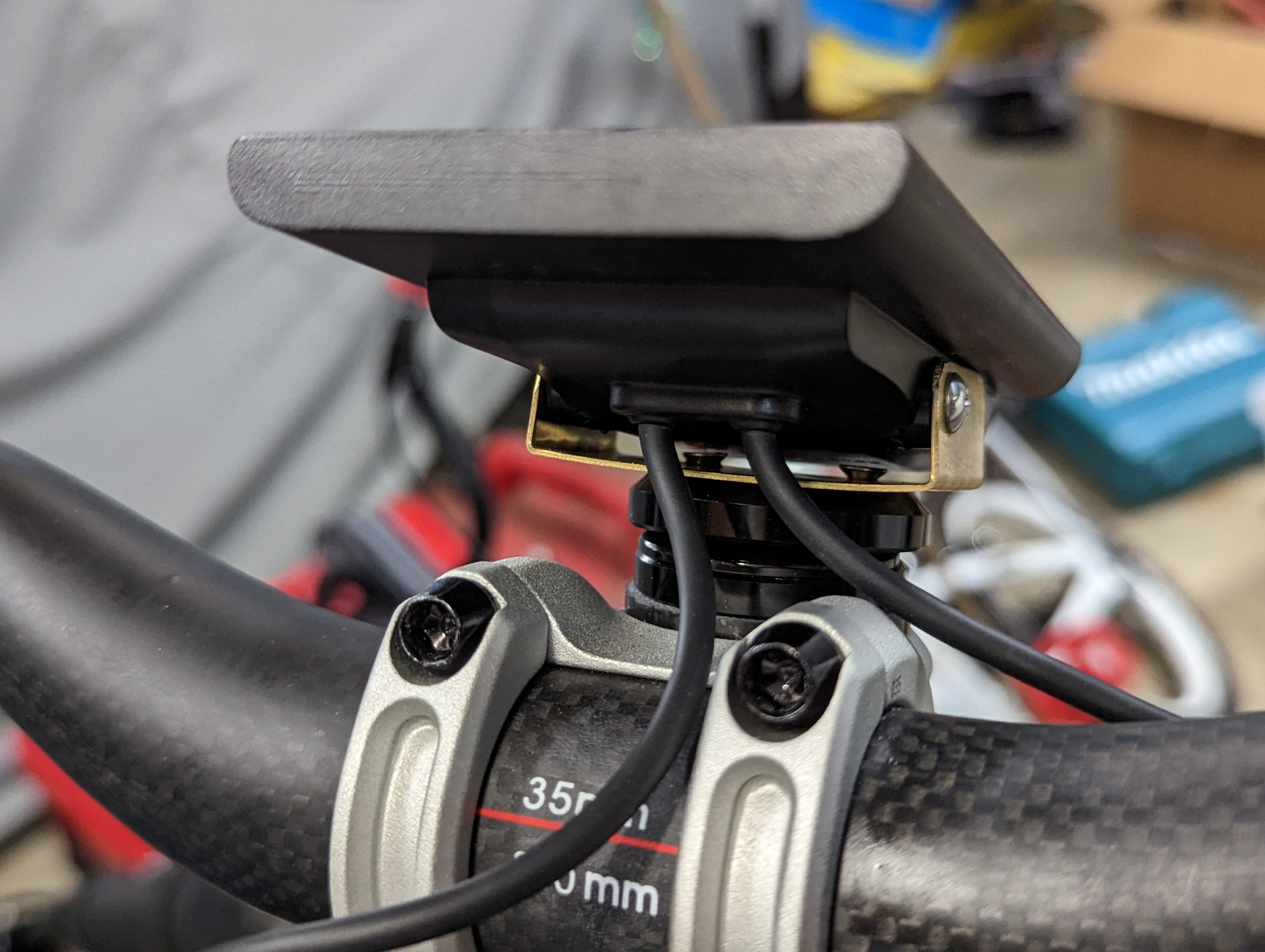

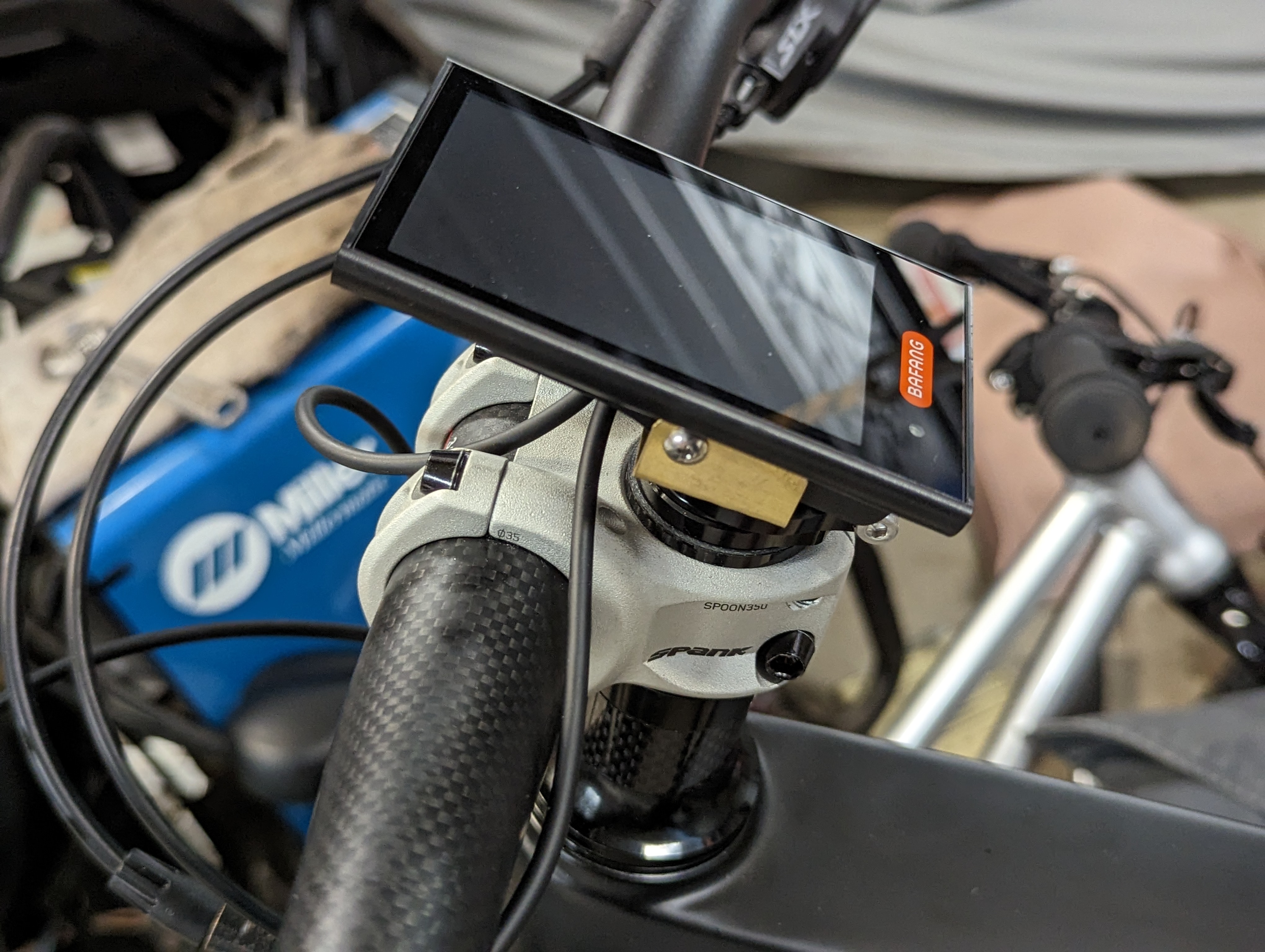

Unscrew the plastic element in the Spacer Mount and discard it. There are "horizontal" screw holes under the plastic. I used those with the stock screws. I bent and drilled a brass strip into the shape depicted. I cut the "toothed" cylinders off the stock plastic brackets and used them as standoffs between the display and the brass piece.

It's tight. Does not move at all. Perfect angle and is adjustable.

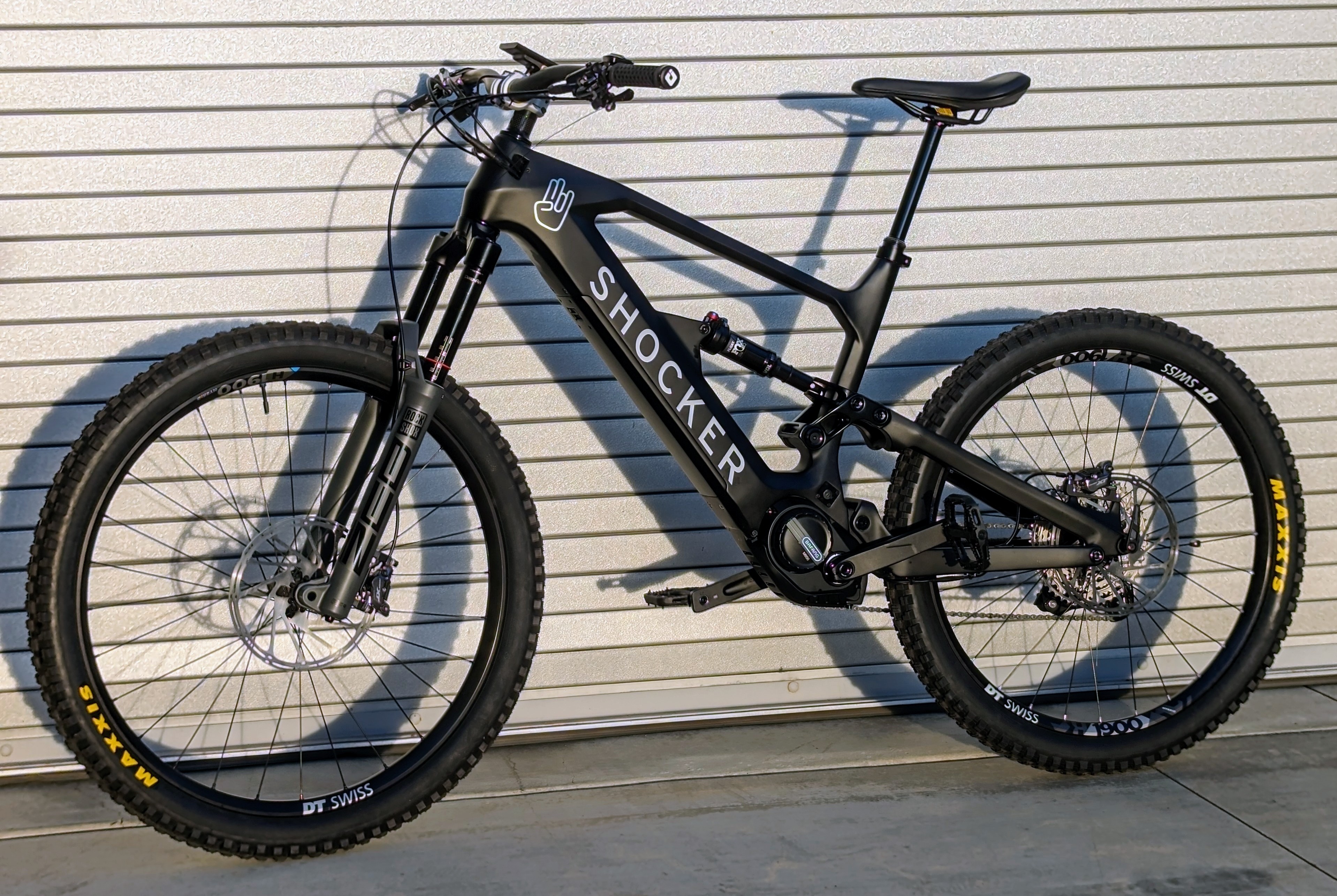

Here's the whole bike for reference.

Last edited:
