Anyone removed the Trek Rail Battery Lock?

Dave_B

Well-known member
Subscriber
Aug 29, 2020
663
427
Newquay
I don’t have any M3 bolts so will have to order some. I’ll get a wrists of thread pitch’s. It looks very fine on the OEM bolts.


Dave_B

Well-known member
Subscriber
Aug 29, 2020
663
427
Newquay
Will hopefully get this working with the 750wh battery.



Dave_B

Well-known member
Subscriber
Aug 29, 2020
663
427
Newquay

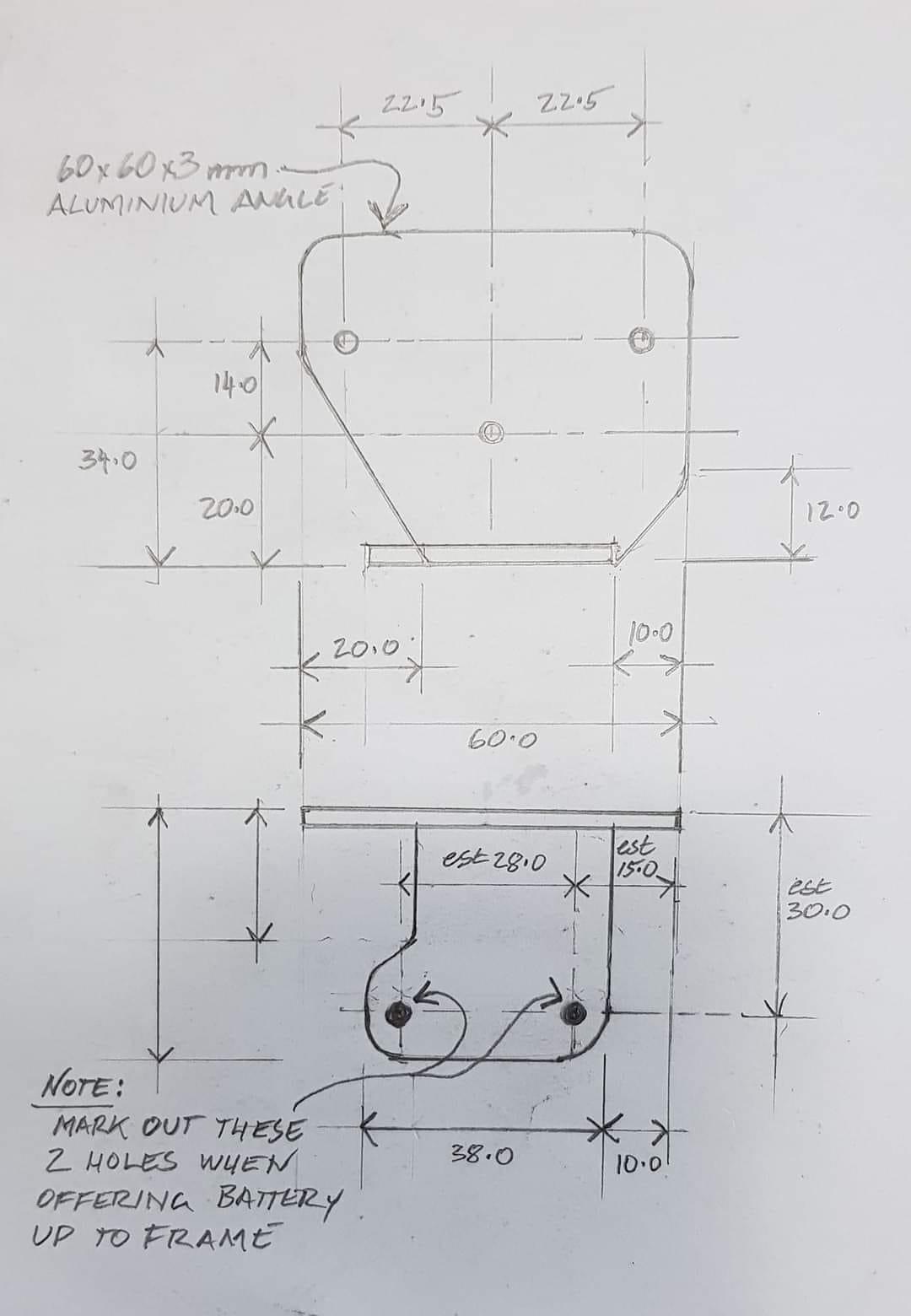

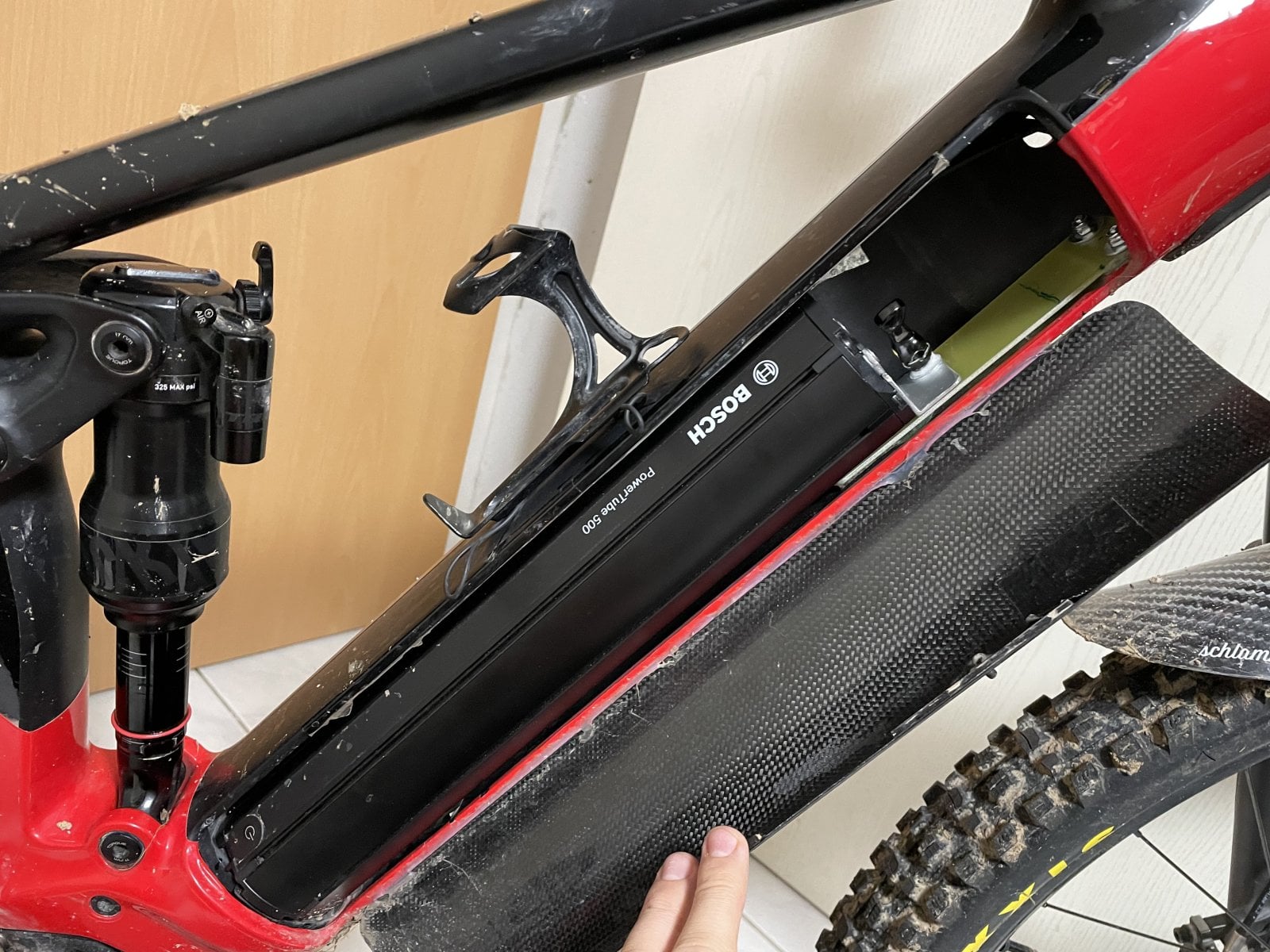

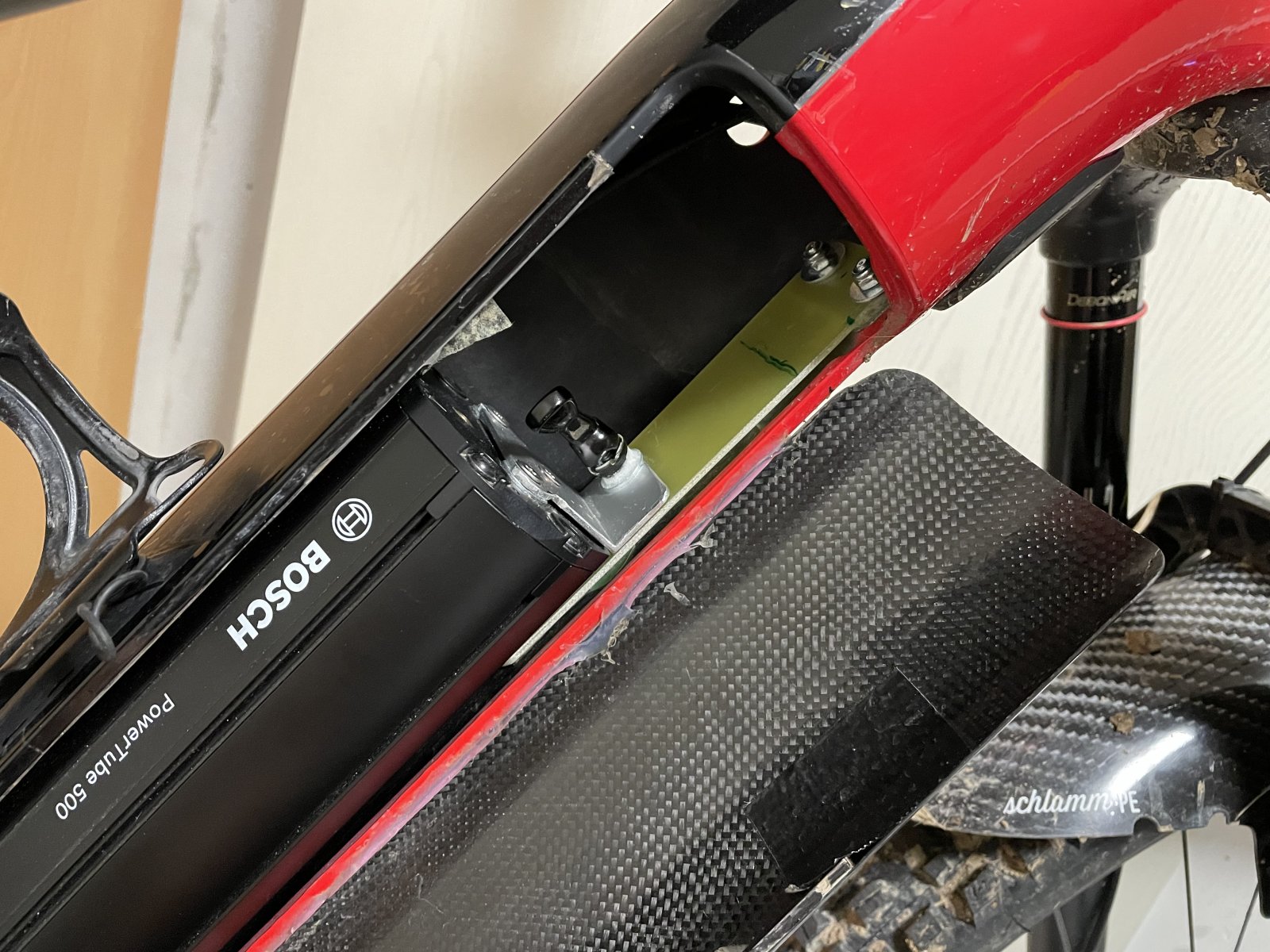

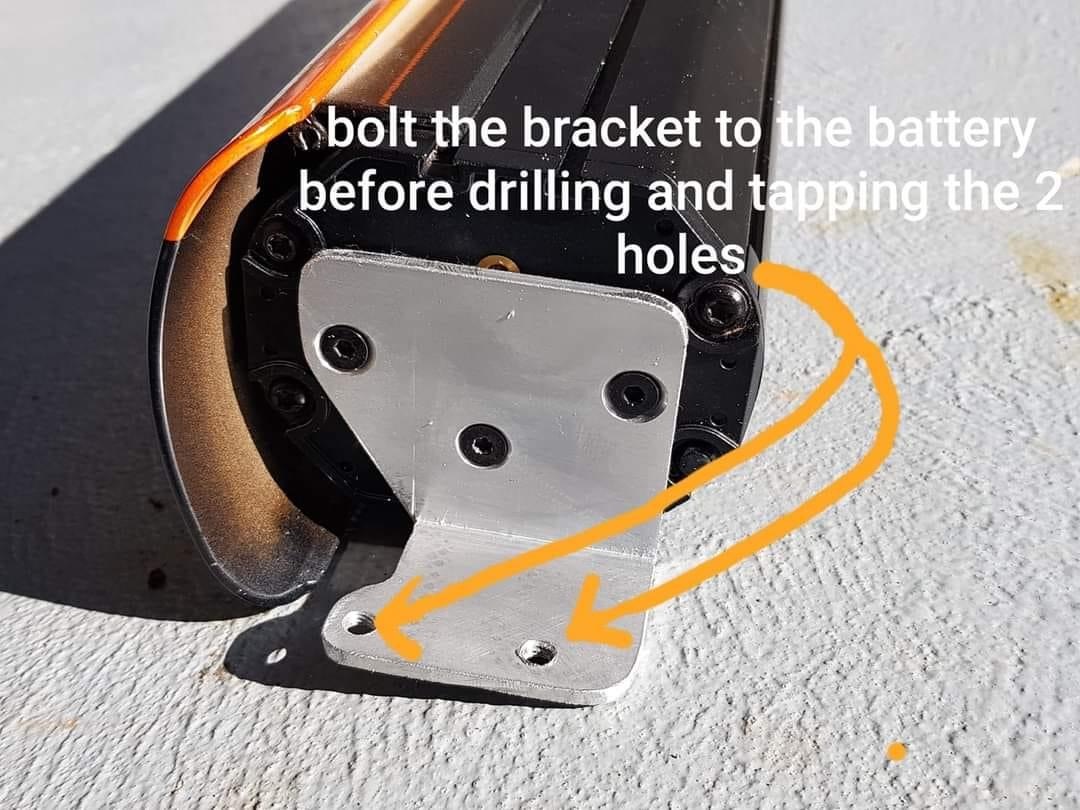

I fitted the bracket today to my 750wh Rail.

Took a while to get it lined up, had to drill one more hole into the bracket to align it to the 750 mounting holes.

There is a lot of stuff to remove. A bit of a faff getting the rail plate off, but not too difficult.

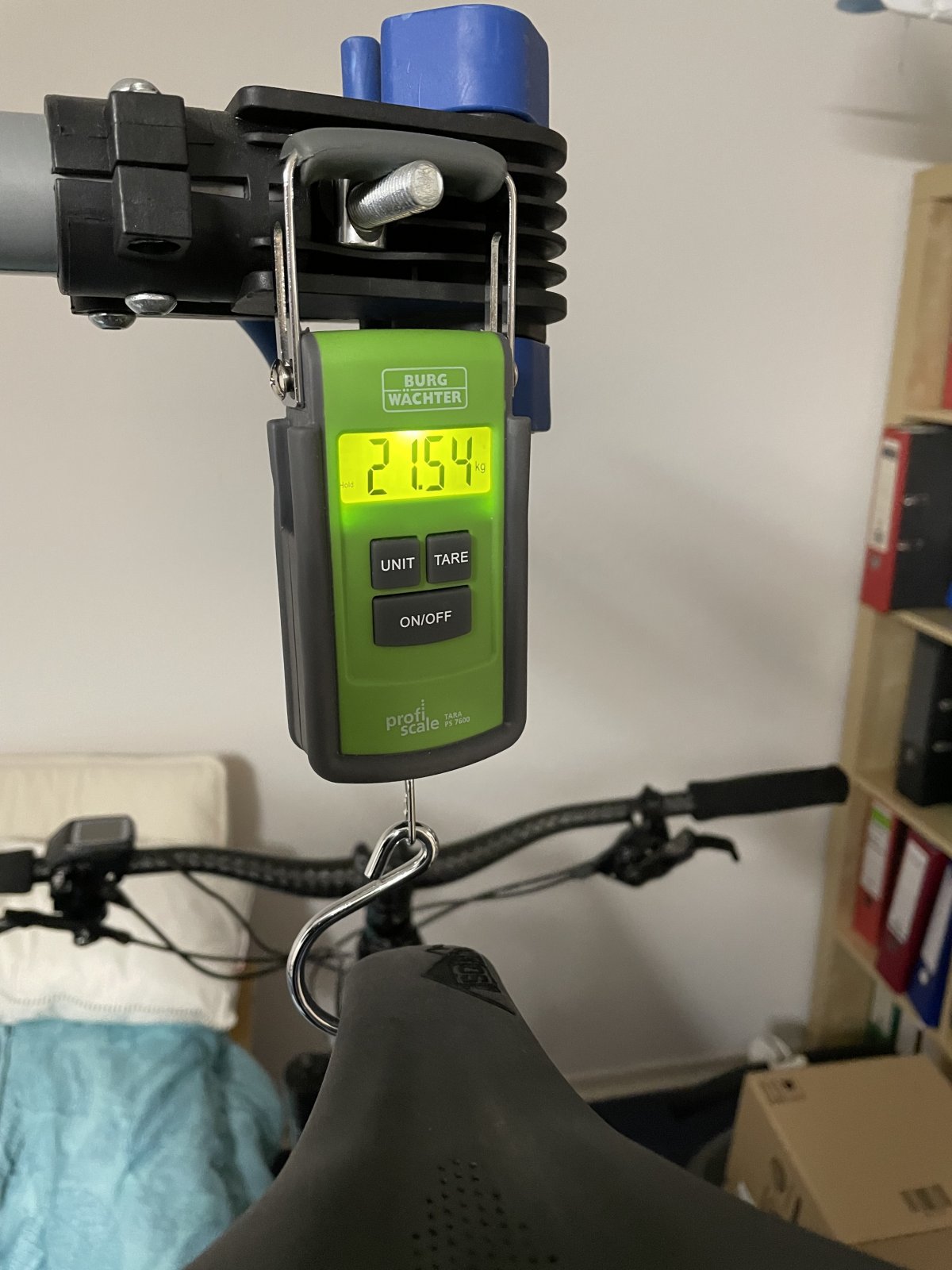

Weights and measures below.

I also used some P rubber to fill the top and bottom gap.

The bad news…. My intermittent electrical issue has returned but I’ll post separately about that.



Fat Rat

Active member
May 7, 2020
338
166
UK
Nice one
Glad it worked out for you in the end
especially with you being our UK distributor :)

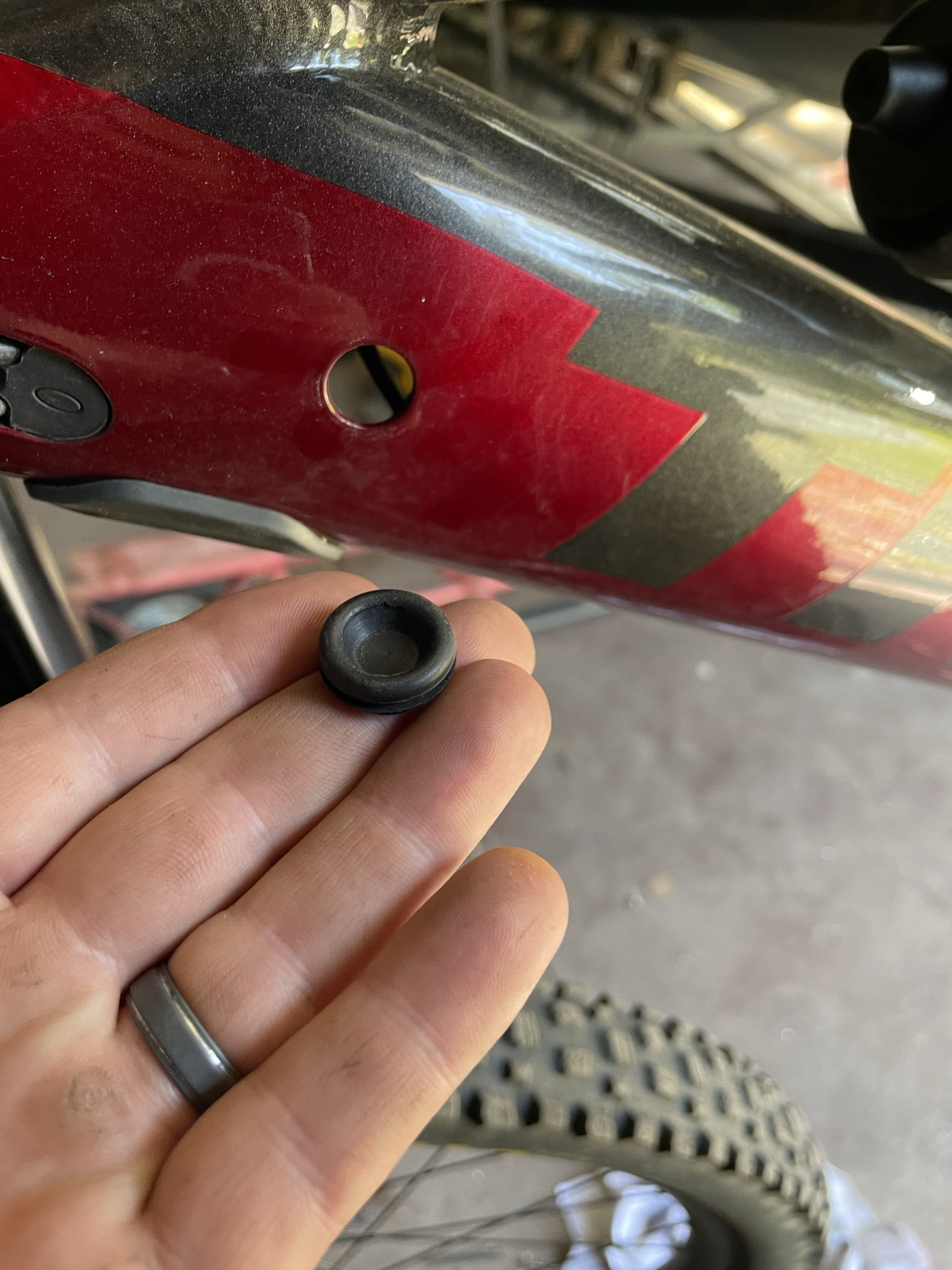

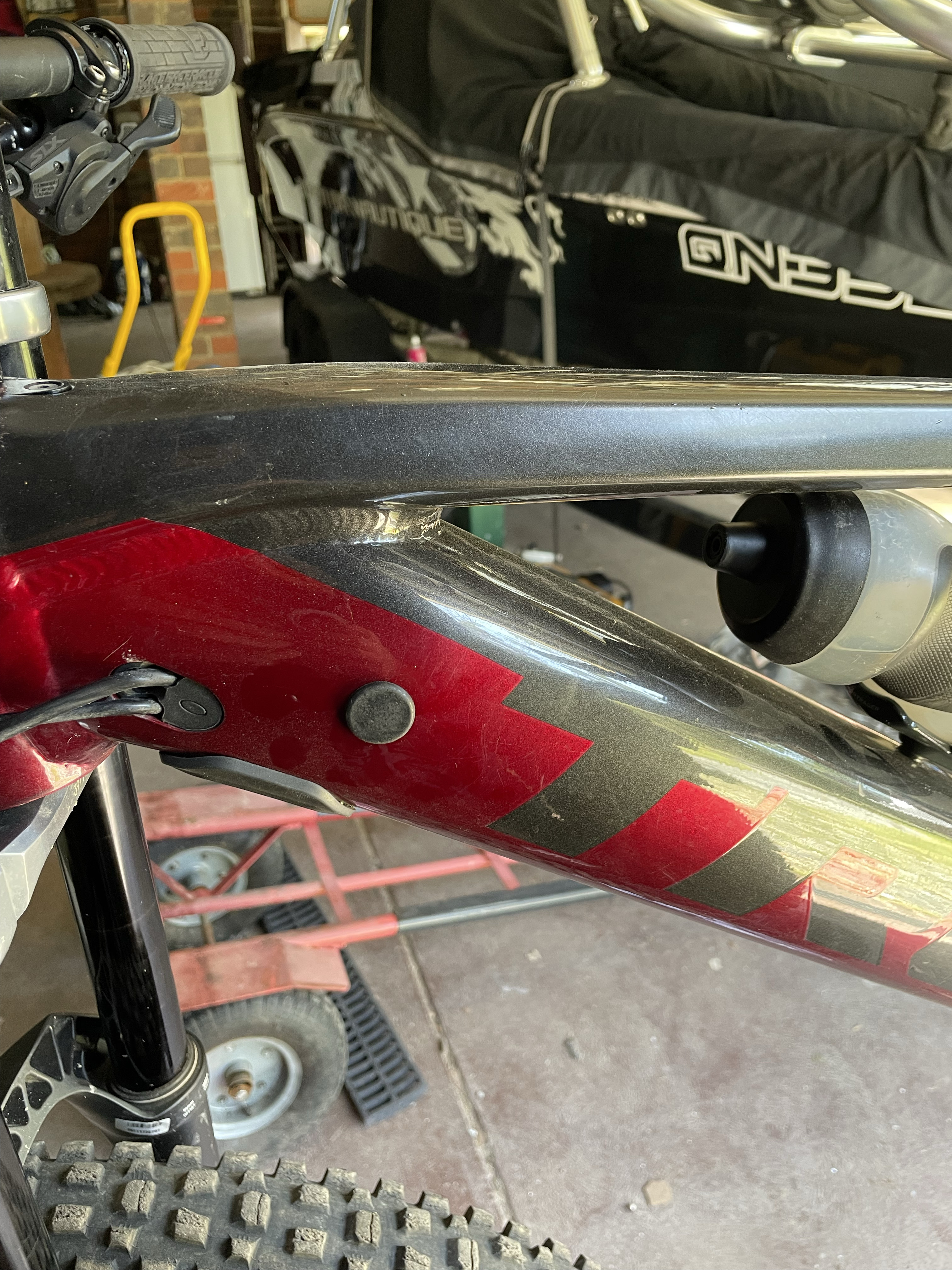

PS. You have a key grommet just like mine LOL
