Giant GLI270 6A EnergyPak 5 pin charger tear down / repair / fuse replace

offroad

offroad

Active member
Joined
Dec 29, 2021
Messages
89
Reaction score
64
Location
Wanaka, New Zealand

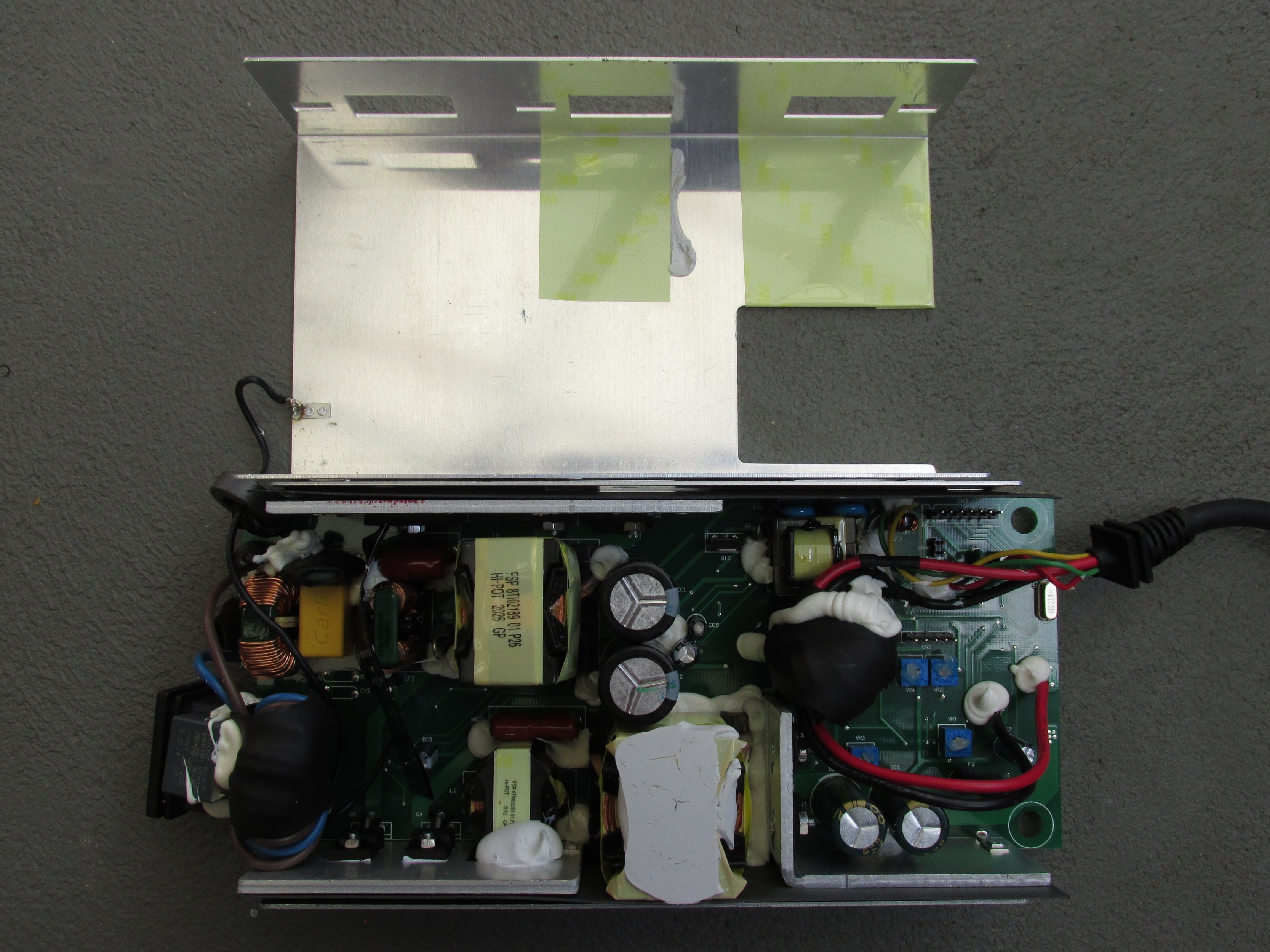

Case secured with 4 x Torx screws underside. Double tab fasteners along both sides centre need leverage to unclick.



White rubber gasket occupies surrounding groove. Unclip aluminium covers, 2 clips each side ends. Unclip LED daughterboard / switch. Bottom aluminium heat sink is stuck to case with glue or tape, prise upwards.

Top aluminium cover has soldered earth wire. (Remove temporarily for convenience).

If no LED's light, check input fuse F1 adjacent IEC AC input socket.

If LED's light, but less than 40v DC output and no flashing GREEN LED, check output stage fuse F2 adjacent red and black output wires. Both fuses wrapped in black heat shrink. Output fuse is common issue. Replace with slow blow T15A 250V ceramic fuse with leads pre-attached.



Why does this last image keep duplicating itself and won't delete ? I give up.

Last edited:
⚡ EMTB Pro Go Pro — Living Intelligence Reports, exclusive discounts & ad-free Up to 25% off Peaty's, PEMBREE, Magicshine & more · Ad-free browsing · Pro badge See the deals →
Hello.

I have the following problem with the original Giant GLI180a 4Ah charger: when you plug it in, first the red and then the green LED flash briefly, after which the charger turns off and does not charge the battery, regardless of whether it is on the bike or disconnected and charging directly.
By experimenting, I found that the charger connected to the bike is partially "activated" if I then try to turn on the bike's drive - the on/off button, which is otherwise "forbidden". In such a case, the red LED on the charger is constantly lit, which otherwise signals that there is no battery. If I then charge the battery directly, the charging LEDs flash on the battery, but it charges extremely slowly.
Does anyone know a similar case and/or solution?

The Giant seller says that the charger is defective and needs to be replaced.

PS: the battery are OK and normally charge on other charger.

Last edited:
Measure the output voltage and if not 42v it's cactus. Cut the 5 pin cable off the charger and connect the +/- red black wires to any 42v / 4A charger. You don't need the Canbus communications to charge the battery.

Thank you; Giant already change charger for new one. Unofficial is the issue with one series made in corona times with chipsets from another supplier.

Thank you, thank you, thank you for this post.

My original Giant charger failed (used it 3 times, but out of warranty due to age).

I got a standard charger from Amazon, cut the 5 pin cable and spliced. Works perfect. Some other stuff I read on the Internet talked about how important the other 3 wires were - they were obviously incorrect.

offroad said:
Measure the output voltage and if not 42v it's cactus. Cut the 5 pin cable off the charger and connect the +/- red black wires to any 42v / 4A charger. You don't need the Canbus communications to charge the battery.
Click to expand...
I have some issue with GLI 270 charger, can you help me out?

offroad said:
Measure the output voltage and if not 42v it's cactus. Cut the 5 pin cable off the charger and connect the +/- red black wires to any 42v / 4A charger. You don't need the Canbus communications to charge the battery.
Click to expand...

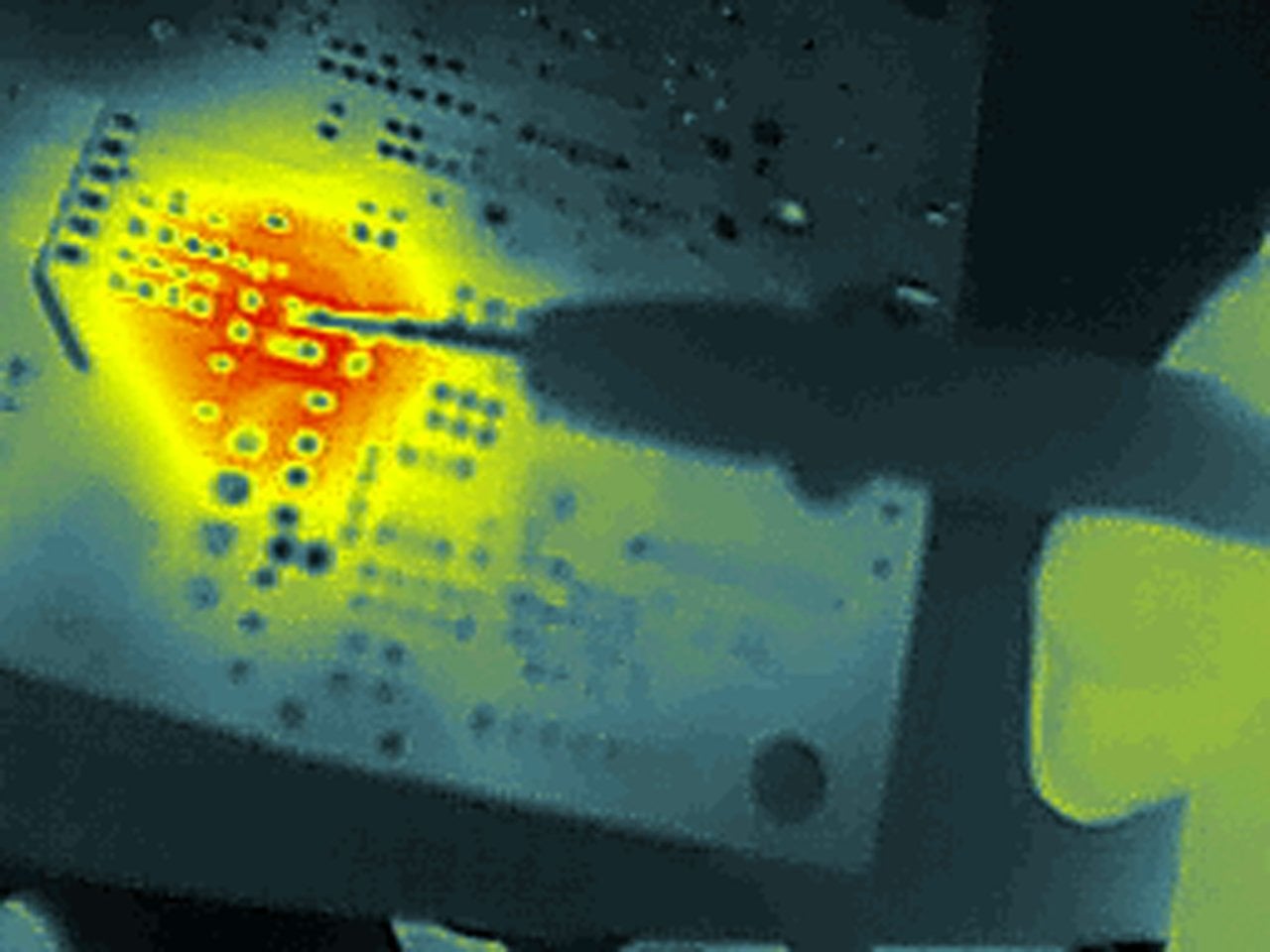

This i get if i look trought termovisor...charger gives me 33-29 volts. Res on this resistors sup to be 12 kom meanwh it gies 58 or so. Is this can be reason why charger gives 33 volt?

1765987753988.JPG IMG_20251217_172035.jpg

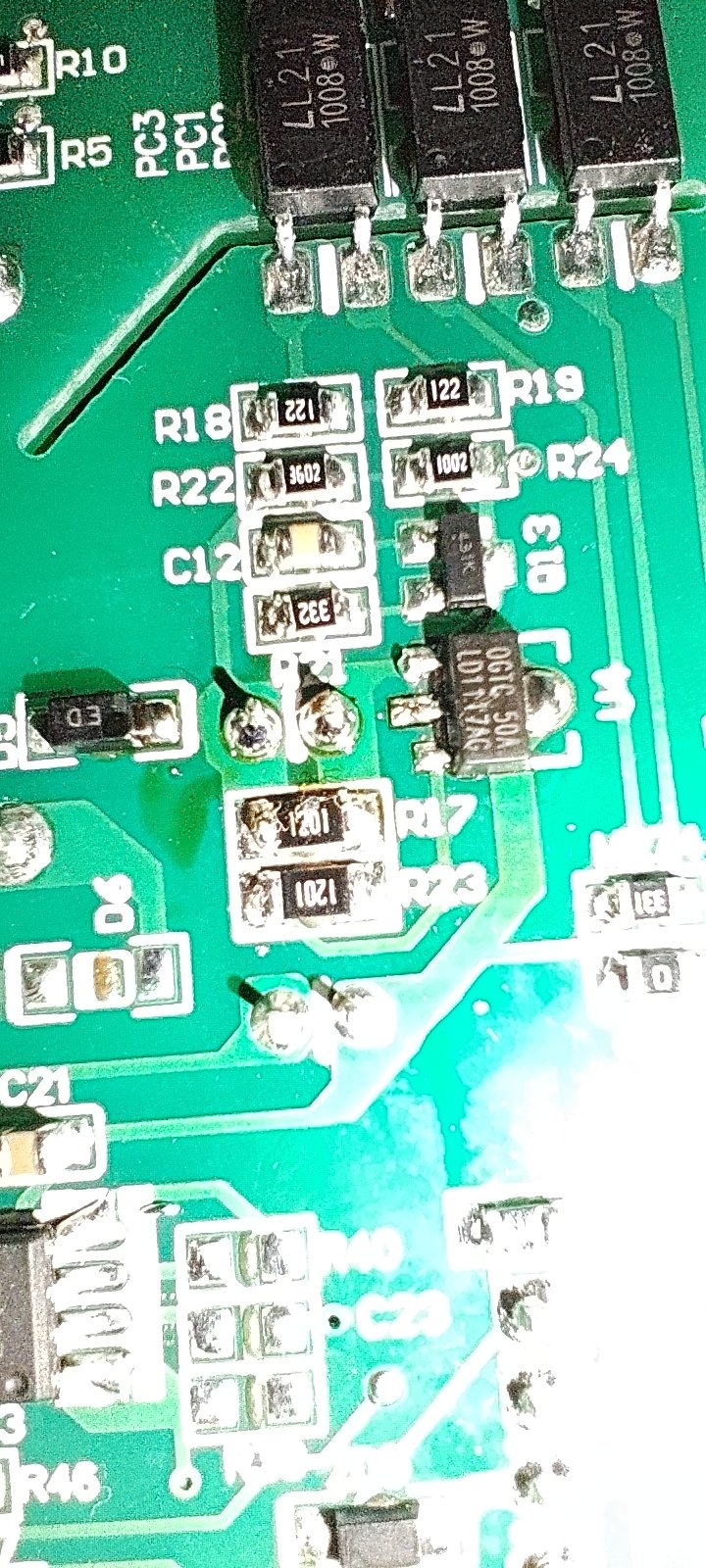

UPD...element.which is heating over 150 °C is LD1117AG on foto...i oredered this comp from Ali

Also there is some heating on CAN microchip...but do i need also to change this CAN-chip?
