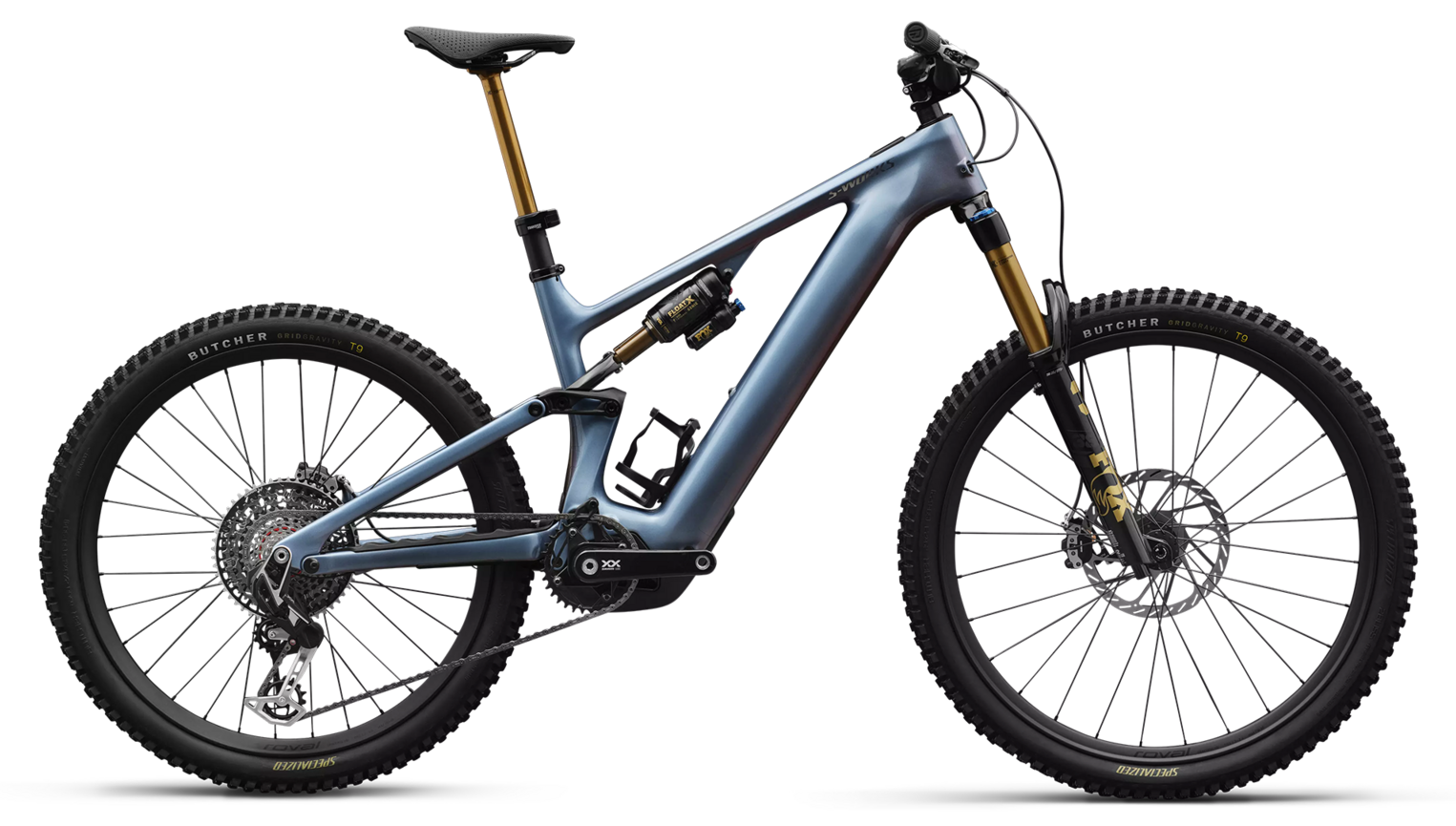

Levo 4 Carbon 2026
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Specialized 3.1 motor full-power eMTB with GENIE shock
The Specialized Levo 2026 is the Gen 4 flagship full-power eMTB, built around the new Specialized 3.1 motor (105 Nm, 250 W rated, 810 W peak, 3.15 kg) and a side-load removable 840 Wh M50 battery. Travel is 160 mm front and 150 mm rear via Specialized's Horst Link layout. Geometry is properly slack with a default 64.5° head angle and 12 combined adjustment settings (three independent — offset headset cups, shock-mount flip chip, Horst-link flip chip). Five Specialized "S2-S6" sizes provide an excellent fit range from 435 mm to 535 mm reach. Community response to the Gen 4 has been mixed but generally positive once owners actually ride the bike — @WatermanJim reports "the bike did live up to the hype. Much faster and smoother while also being more lively and manoeuvrable and thank god it's quiet."
Drive system and range. The Specialized 3.1 motor is the in-house unit Specialized has developed in partnership with Brose, delivering 105 Nm of torque and 810 W peak (S-Works variants run 111 Nm/720 W post-OTA). After-OTA tuning has continued to refine motor response. The 840 Wh M50 battery is genuinely class-leading: @Idlefrog notes it's "12% larger than Bosch 750 Wh", and @Mikerb documents a 75-year-old rider completing a 25-mile country ride with 1,800 ft of elevation and "finished with 50% battery remaining" on a 90 Nm Gen 3 with smaller pack — Gen 4 with 840 Wh exceeds this comfortably. Range extender compatibility lifts the effective ceiling further. Mission Control app provides ride data, Dynamic MicroTune electronic mode adjustment and OTA firmware updates.
Geometry and handling. The Gen 4 brings full geometry adjustability for the first time on a Levo: head angle 63.5°/64.5°/65.5° via offset headset cups, BB height ±6 mm via shock-mount flip chip, and chainstay 435 mm or 444 mm via Horst-link flip chip. @Desert_Turtle rates the impact: "This new chassis is way better than the other 3 generations. Not only is it stiffer and stronger, it's incredibly adjustable. Now you have the ability to adjust [chainstay independently of BB]." Reach progresses generously across the S2-S6 lineup with 20-25 mm jumps between sizes. Wheelbase grows from 1,200 mm to 1,323 mm.
Build and value. Specialized offers the Gen 4 Levo across multiple trims: Comp (carbon), Pro, Expert and S-Works, with prices typically spanning £6,500 to £14,000. @Zimmerframe notes a meaningful 2025 price reduction: "Specialized Levo R S-Works MSRP reduced from $15,650 to $11,500" — although that reduction applies to US and Canada markets only. Mission Control app integration, SWAT downtube storage with a magnetic pouch, and MasterMind T-series colour top-tube display all feature across the range. SRAM Eagle Transmission AXS appears on higher trims.
Community-verified strengths. @ricko compares the Gen 4 to a Trek Rail 9.9 XX1 (Bosch Gen 4) and Shimano EP8 bikes, ruling out the Amflow as "not in the same class of bike IMO" and praising the Levo's motor: "The motor outshines [previous Shimano units]." @Power1tobe wrote a detailed long-form review after multiple rides on a Gen 4 Pro, taking the time to test in different conditions. The Cascade-link aftermarket option (Evo link at $70 vs Cascade at $370) gives flexibility on progression.
Caveats and known gripes. Gen 3 owners are notably reluctant about the Gen 4: @BikeBert calls it "overhyped, overweight and late to the party". @Zimmerframe reports "Pretty Thorough Specialized Disappointment" with great riding characteristics but no genuine revolution. Weight has risen versus earlier Levos — @Jeff McD notes 54.2 lbs (24.6 kg) stock for the Gen 4 Comp S frame, requiring lightweight wheelsets to drop below 48 lbs. Specialized's web profile P&L display is famously buggy and Brose-based motor warranty replacements still happen. Pricing remains premium against Avinox-equipped rivals.
Verdict. The Levo Gen 4 is for the rider who wants Specialized's mature ecosystem, the largest battery in mainstream eMTB, properly adjustable modern geometry across five S-sizes, and the deepest dealer network globally. It is not for buyers chasing absolute lightweight, riders who already own a Gen 3 and want a revolution, or anyone outside Specialized dealer reach. Production status is current with the Levo Gen 4 lineup the headline 2026 platform.
Frame
FACT 11m carbon front + rear triangle, SWAT downtube storage, sealed cartridge-bearing Horst-link pivots, side-load battery cradle, internal cable routing
Geometry · hover a row to highlight the measurement on the bike
| S2 | S3 | S4 | S5 | S6 | |
|---|---|---|---|---|---|
| Toptube | 578 mm | 599 mm | 627 mm | 655 mm | 689 mm |
| Reach | 435 mm | 455 mm | 480 mm | 505 mm | 535 mm |
| Stack | 618 mm | 626 mm | 638 mm | 652 mm | 667 mm |
| Seattube | 390 mm | 405 mm | 425 mm | 445 mm | 465 mm |
| Chainstay | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| Seattube Angle (eff) | 77° | 77° | 77° | 77° | 77° |
| BB Drop | 29 mm | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheelbase | 1200 mm | 1223 mm | 1254 mm | 1286 mm | 1323 mm |
| Headtube | 95 mm | 103 mm | 117 mm | 132 mm | 149 mm |
| BB Height | 350 mm | 350 mm | 350 mm | 350 mm | 350 mm |
| Standover | 753 mm | 754 mm | 753 mm | 758 mm | 761 mm |
| Front Centre | 765 mm | 788 mm | 819 mm | 851 mm | 888 mm |
Trims · 5
Comp Carbon £6,799 | Expert £8,499 | Pro £10,299 | S-Works £12,499 | S-Works LTD £16,999 | |
|---|---|---|---|---|---|
| Motor | Specialized 3.1 · 105 Nm | Specialized 3.1 · 105 Nm | Specialized 3.1 · 105 Nm | Specialized 3.1 · 111 Nm | Specialized 3.1 · 111 Nm |
| Battery | Specialized M50-840 · 840 Wh · all trims | ||||
| Travel F/R | 160/150 mm · all trims | ||||
| Frame | Carbon · all trims | ||||
| Fork | FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset | Fox 38 Performance Elite, Grip X2 damper, 15x110mm, 44mm offset, 160mm | FOX FLOAT 38 Factory, GRIP X2 damper, HS/LS rebound and compression, 15x110mm, 44mm offset, 160mm | Fox Float 38 Factory GRIP X2 160mm | FOX Factory Podium, GRIP X2 damper, HS/LS rebound and compression |
| Shock | Fox FLOAT X Genie, Performance series, 210x55, Low speed rebound adjust, climb switch | FOX FLOAT X Performance Elite with Specialized GENIE, 2-position lever, LSR adjust | FOX FLOAT X Factory with Specialized GENIE, 2-position lever, LSR adjust, 210x55mm | Fox Float X Factory with GENIE | FOX FLOAT X Factory with Specialized GENIE, 2-position lever, LSR adjust, 210x55mm |
| Stem | Alloy Trail Stem, 35mm bar bore | Alloy Trail Stem, 35mm bar bore | Industry 9 Mountain stem, 35mm clamp, 40mm | Industry 9 Mountain stem, 35mm clamp, 40mm | Industry 9 Mountain stem, 35mm clamp, 40mm |
| Handlebar | Alloy, 35mm, 8deg backsweep, 6deg upsweep, 30mm rise, 800mm | Alloy, 35mm, 8deg backsweep, 6deg upsweep, 800mm | RaceFace Era Carbon, 5deg up, 8deg back, 800mm | Race Face Era Carbon, 35mm clamp, 8deg back, 5deg up, 800mm | RaceFace Era Carbon, 8deg back, 5deg up, 800mm |
| Grips | Specialized Trail Grips | Deity Lockjaw grips | Deity Lockjaw grips | Deity Lockjaw grips | Deity Lockjaw grips |
| Saddle | Bridge Comp, Hollow Cr-mo rails 155/143 | Bridge Comp, Hollow Cr-mo rails | Bridge Mimic Expert, Hollow Ti rails | Specialized Power Pro Mirror, Hollow Ti rails 143/155 | Specialized Power Pro Mirror, Hollow Ti rails |
| Seatpost | Xfusion Manic, S2:125mm S3:170mm S4-S6:190mm | PNW Loam post, S2:125mm S3:170mm S4-S6:200mm | Bike Yoke Revive Max 3.0, S2:125 S3:160 S4:185 S5/S6:213mm | FOX Transfer NEO Factory, S2:125 S3:175 S4-S6:200mm | FOX Transfer NEO Factory, S2:125 S3:175 S4-S6:200mm |
| Brakes | SRAM Maven Bronze, 4-piston caliper, hydraulic disc | SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm front / 200mm rear | SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm HS2 front / 200mm HS2 rear | SRAM Maven Ultimate, 4-piston caliper, hydraulic disc | Trickstuff Maxima, 4-piston, 223mm rotor front and rear |
| Rear derailleur | SRAM S-1000 Eagle AXS Transmission | SRAM GX Eagle Transmission | SRAM X0 Eagle Transmission | SRAM XX Eagle Transmission Derailleur | SRAM XX Eagle Transmission Derailleur |
| Crank | SRAM S1000 Alloy crank, ISIS interface, 155mm length | SRAM GX Eagle Crankset, 155mm | SRAM XO Alloy crank, 155mm, ISIS interface | SRAM XX Carbon crank, 160mm, ISIS interface | Cane Creek eeWings titanium cranks, 160mm |
| Shifters | SRAM AXS POD Controller w/discrete clamp | SRAM AXS POD Controller | SRAM AXS POD Controller | SRAM AXS Pod Ultimate w/discrete clamp | SRAM AXS POD Ultimate Controller w/discrete clamp |
| Cassette | SRAM XG-1270 Transmission Cassette, 12-speed, 10-52t | SRAM GX Eagle Transmission Cassette, 12spd, 10-52t | SRAM XO 1295, 12-speed, 10-52t | SRAM XX Transmission XS-1297, 10-52t | SRAM XX Eagle Transmission Cassette, 12spd, 10-52t |
| Chain | SRAM GX Eagle Transmission 12-Speed Flattop Chain | SRAM GX Eagle Transmission Flattop Chain | SRAM X0 | SRAM XX T-Type | SRAM XX Eagle Transmission Flattop Chain |
| Drivetrain | SRAM S-1000 Eagle AXS Transmission, 12-speed | SRAM GX Eagle Transmission, 12-speed | SRAM X0 Eagle Transmission, 12-speed | Specialized 3.1 motor (110Nm/720W), 840Wh battery | SRAM XX Eagle Transmission, 12-speed |
| Wheels | Specialized hookless alloy rims, 30mm inner width, tubeless ready; Specialized alloy hubs (15x110mm front / 12x148mm rear); DT Swiss Elemental spokes | Roval Traverse Alloy 29 front / 27.5 rear, DT Swiss 370 hubs | Roval Traverse HD carbon hookless, 30mm inner, DT Swiss 350 hubs (29 front / 27.5 rear) | Roval Traverse HD carbon hookless, 30mm inner, DT Swiss 240 hubs (29 front / 27.5 rear) | Traverse HD I9 Hydra 2 carbon, 30mm inner (29 front / 27.5 rear) |
| Tyres | Butcher GRID GRAVITY T9 29x2.4 (front) / Butcher GRID GRAVITY T9 27.5x2.4 (rear) | Butcher GRID GRAVITY T9 29x2.3 (front) / 27.5x2.3 (rear) | Butcher GRID GRAVITY T9 29x2.3 (front) / 27.5x2.3 (rear) | Butcher GRID GRAVITY T9 29x2.4 (front) / 27.5x2.4 (rear) | Butcher GRID GRAVITY T9 29x2.4 (front) / 27.5x2.4 (rear) |
| Weight | — | 24.41 kg | 23.94 kg | 23.7 kg | 24 kg |
| Price | £6,799 | £8,499 | £10,299 | £12,499 | £16,999 |
