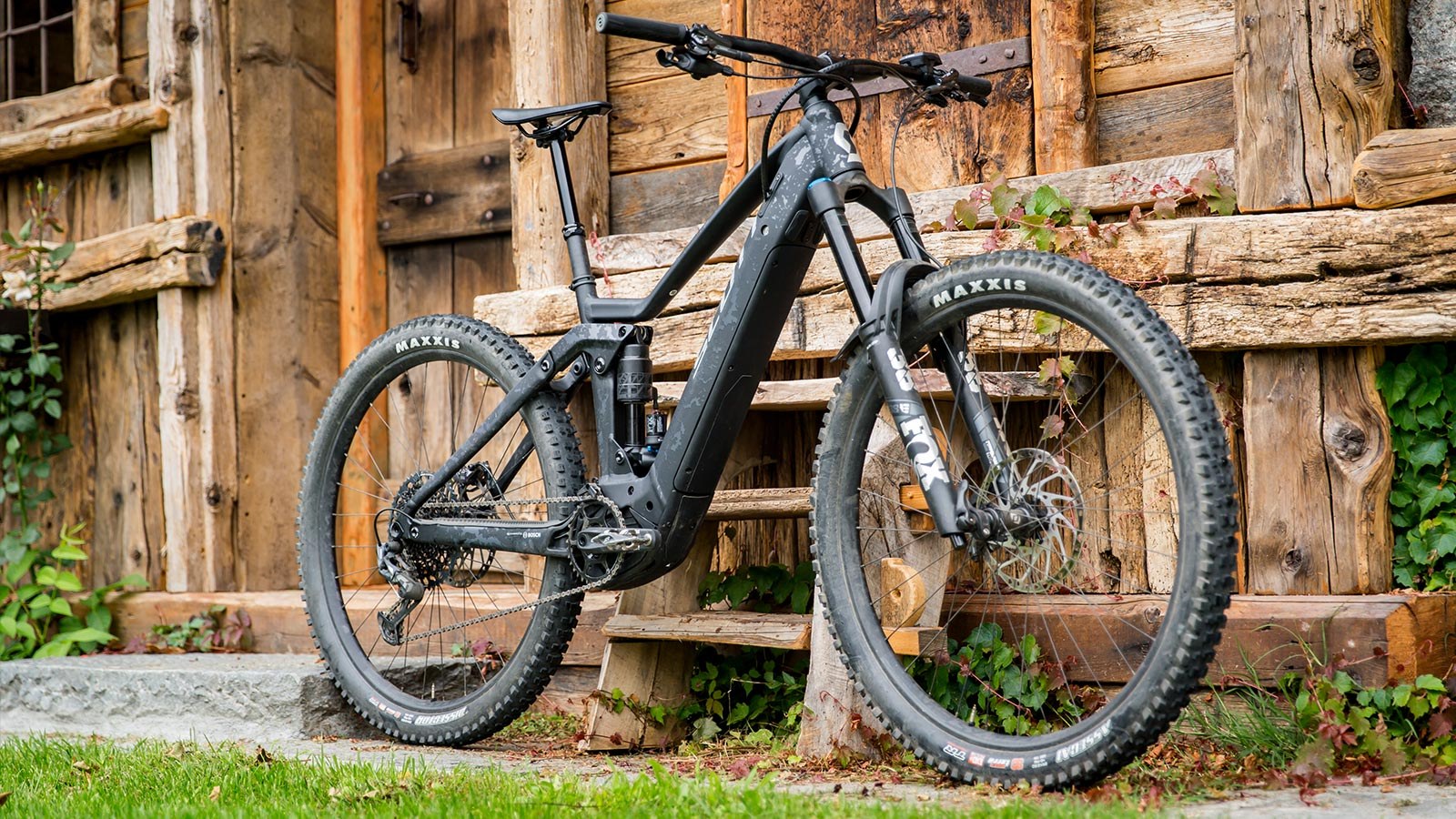

Ransom eRIDE 2024
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Long-travel 180/170mm enduro eMTB with Bosch Performance CX Gen 4, adjustable geometry and 6-Link Ransom kinematic.

The Scott Ransom eRIDE 2024 is the Swiss brand's long-travel enduro flagship: 180 mm of travel front and rear, the Bosch Performance Line CX Gen 4 motor at 85 Nm of torque and 600 W peak, and a removable 625 Wh PowerTube battery. With a 64.0 degree head angle adjustable via flip-chip, 463–465 mm chainstays and Scott's 6-Link Ransom kinematic, this is a serious all-mountain-park-shuttle bike. The Ransom Carbon HMF (910) or aluminium (920) options sit at 24.87 kg claimed weight, putting them mid-pack against carbon Avinox and Bosch CX Gen 5 rivals.
Drive system and range. The Bosch CX Gen 4 is now superseded by CX Gen 5 (120 Nm vs Gen 4's 85 Nm) — buyers should be aware this is now the previous-generation Bosch unit. Forum data confirms the Gen 4 CX Performance configuration. The 625 Wh PowerTube battery is removable and on the small side for a 2024 long-travel enduro where 750–800 Wh is increasingly standard. Real-world range on Gen 4 CX with 625 Wh typically gives 1,000–1,400 m of climbing per charge. Bosch's Smart System ecosystem (eBike Flow app, OTA updates) is supported, but the Gen 4 motor cannot be retrofitted to the newer 120 Nm Gen 5 spec.
Geometry and handling. A 64.0 degree head angle is bang in the modern enduro sweet spot — slack enough for serious descending without being extreme. Reach progresses cleanly: 415 mm (S), 440 mm (M), 470 mm (L), 500 mm (XL). Chainstays are 463 mm (S–L) and 465 mm (XL) — a modest nod to size-progressive rear-centre, though longer than current Norco or Megamo size-balanced approaches. Wheelbase grows 1,220 mm to 1,300 mm. The 6-Link Ransom kinematic with Horst Link is Scott's proven layout, paired here with a FOX Float X Nude EVOL Factory eRIDE shock featuring Ramp Control (170 mm Descend / 130 mm Ramp modes) controlled by Scott's TwinLoc remote. The flip-chip allows head-angle adjustment.
Build and value. The 910 carbon top trim pairs FOX 38 Float Performance Elite GRIP2 fork (or RockShox ZEB Ultimate Air, 180 mm), the FOX Float X Nude EVOL Factory eRIDE shock with TwinLoc, SRAM Code RSC Stealth 4-piston brakes (HS2 200 mm rotors) and SRAM GX Eagle AXS Transmission. The 920 aluminium sibling drops to a similar suspension setup with mainstream finish. Pricing data is not gold-listed but typical 2024 UK retail for the 910 runs £7,500–£9,000.
Community-verified strengths. The Ransom platform has been well-regarded for descending. @Vicki ran a 2022 Ransom eRide in mullet configuration (29/27.5 via flip-chip), confirming the flexibility of the geometry adjustment. @Rob Rides EMTB identifies the bike's strengths in steep rocky descents (Spain and southern France). The TwinLoc remote and shock-mode switching is distinctive and well-engineered.
Caveats and known gripes. Bosch CX Gen 4 motor reliability is the biggest forum concern. @RobertK. documents a serious motor issue: under load the motor would "skip a beat like a broken hub". A complete drivetrain replacement (hub, derailleur, cassette, chain) did not fix the issue, and Bosch denied the warranty claim after 3 weeks — saying motor failure "wasn't their fault". A meaningful warranty pathway concern. @Rob Rides EMTB's lighter rider profile (164 cm, 60 kg) is now actively shopping for a lighter alternative to his current Scott Ransom eRide. The 625 Wh battery is small by 2024 standards. The 463–465 mm chainstays are long and not strongly size-progressive. The Gen 4 motor is now the previous generation — buyers comparing to current Bosch CX Gen 5 builds at similar money are getting older drive technology.
Verdict. The Scott Ransom eRide is a serious long-travel 180/180 enduro from a Swiss brand with strong design heritage and a distinctive 6-Link Ransom kinematic. It will suit aggressive enduro and bike-park riders who value Scott's design heritage, the TwinLoc shock mode-switching feature and the Ransom's adjustable geometry. Buyers wanting the latest Bosch CX Gen 5 motor, a larger 750–800 Wh battery, or first-hand confidence around Bosch motor-warranty claims should look at current 2025–2026 alternatives — Cube One77 SLX, Centurion No Pogo R7000 or Trek Rail+ Gen 5 — all of which ship with the newer Gen 5 motor and full 800 Wh batteries. Production status: current.
Frame
Ransom Carbon HMF main frame (910) or Alloy 6061 (920) with Alloy 6061 swingarm; 6-Link kinematic with Horst Link; 170mm rear travel; adjustable head angle via flip-chip; Boost 148x12mm UDH; 1.8" tapered headtube with Syncros Cable Integration System; Bosch SmartSystem integrated, removable 625Wh PowerTube.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 415 mm | 440 mm | 470 mm | 500 mm |
| Stack | 644 mm | 644 mm | 649 mm | 649 mm |
| Chainstay | 463 mm | 463 mm | 463 mm | 465 mm |
| Headtube Angle | 64° | 64° | 64° | 64° |
| Seattube Angle (eff) | 76° | 76.5° | 77° | 77.5° |
| Wheelbase | 1220 mm | 1254 mm | 1270 mm | 1300 mm |
| Front Centre | 757 mm | 791 mm | 807 mm | 835 mm |
Trims · 2
920 £3,195 | 910 £5,499 | |
|---|---|---|
| Motor | Bosch Performance Line CX Gen 4 · 85 Nm · all trims | |
| Battery | Bosch PowerTube 625Wh · 625 Wh · all trims | |
| Travel F/R | 180/180 mm · all trims | |
| Frame | Aluminium · all trims | |
| Fork | RockShox ZEB Air, 15x110mm QR axle, 180mm travel | FOX 38 Float Performance Elite GRIP2 damper / RockShox ZEB Ultimate Air (910), 180mm travel, 15x110mm QR Boost, 44mm offset, 1.8" tapered steerer |
| Shock | FOX Float X2 Performance Air, LSC, LSR w/2-Pos. lever | FOX Float X Nude EVOL Factory eRIDE with Ramp Control (170mm Descend / 130mm Ramp), TwinLoc remote |
| Headset | Acros Blocklock / Tapered 1.5"-1 1/8" OD 52/62mm / ID 44/56mm | Acros AZX-1051 ZS66/OD74 1.8" integrated, Syncros Cable Integration System |
| Stem | Syncros XM1.5, Alloy 6061 | Integrated Syncros Hixon iC carbon bar/stem (910) / Syncros XM1.5 alloy 31.8mm 0 degree rise (920) |
| Handlebar | Syncros Hixon 2.0 Rise, Alloy 6061, 800mm, 20mm rise | Syncros Hixon iC Carbon integrated bar/stem, 780mm, 15mm rise (S/M) or 25mm rise (L/XL), 8 degree sweep, 40mm drop |
| Grips | Syncros Pro lock-on grips | Syncros Pro lock-on |
| Saddle | Syncros Tofino 2.0 Regular | Syncros Tofino eRIDE 1.5 |
| Seatpost | Syncros Duncan Dropper Post 2.5 (S:125mm / M:150mm / L&XL:170mm) | Syncros Duncan Dropper Post 1.5S, 31.6mm (S 140mm / M 170mm / L 210mm / XL 210mm) |
| Brakes | Shimano BR-MT520 4 Piston | SRAM Code RSC Stealth 4-piston hydraulic disc with HS2 200mm rotors front and rear |
| Rear derailleur | SRAM NX Eagle, 12 Speed | SRAM GX Eagle AXS Transmission, 12-speed wireless electronic |
| Crank | FSA CK-745 165mm, 34T | Bosch CX e-MTB crank with 34T chainring, 165mm |
| Shifters | SRAM SX Eagle Single Click | SRAM AXS Pod wireless controller |
| Cassette | SRAM PG1210, 11-50 T | SRAM XS-1275, 10-52T, 12-speed |
| Chain | SRAM SX Eagle | SRAM GX Eagle Transmission 12-speed |
| Drivetrain | SRAM Eagle 12 Speed | SRAM GX Eagle AXS Transmission 1x12 wireless electronic |
| Wheels | Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready | Syncros Revelstoke 2.0 29" wheelset, Boost 15x110/12x148, tubeless-ready, XD driver |
| Tyres | Front: Maxxis Assegai 29x2.6"; Rear: Maxxis Dissector 29x2.6" | Maxxis Assegai 29x2.5" 3C MaxxGrip EXO+ TR front / Maxxis Minion DHR II 29x2.4" 3C MaxxTerra DD TR rear |
| Weight | 24.7 kg | 24.87 kg |
| Price | £3,195 | £5,499 |
