Patron eRIDE 2024
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.
Integrated Bosch CX 800Wh super-trail/enduro eMTB

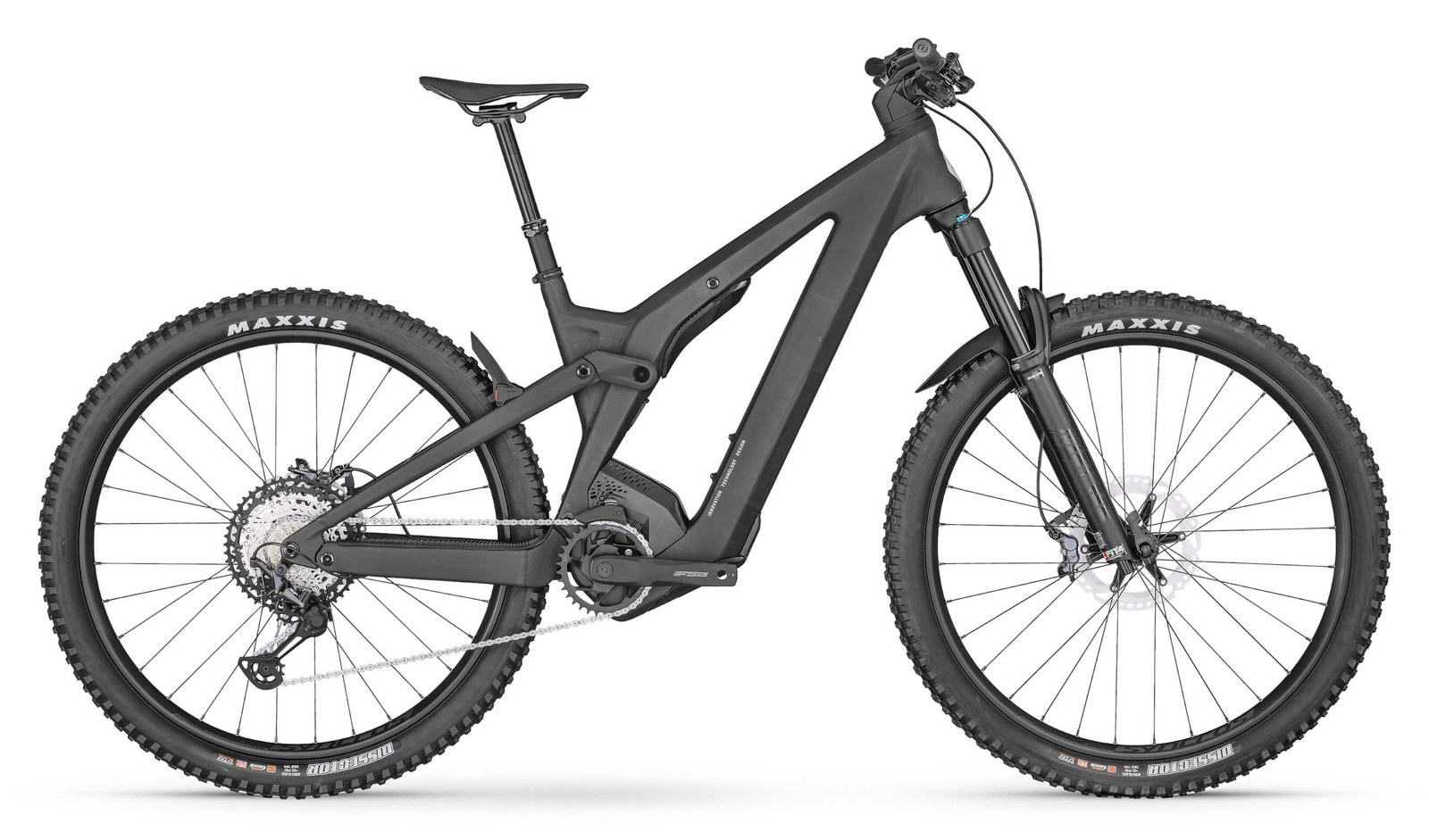

The Scott Patron eRIDE 2024 is a carbon enduro eMTB built around Bosch's Performance Line CX Gen 4 motor with Scott's signature TwinLoc shock control system and a 750 Wh removable PowerTube. Headline numbers: 170 mm of fork travel, 160 mm at the rear, 26.2 kg claimed on the 910 trim, 24.6 kg on the lighter 900 trim, 85 Nm of Bosch torque, a 65 degree head angle and reach progressing 433 mm on S, 446 mm on M, 474 mm on L and 501 mm on XL. The community framing is mature: Patron eRIDE owners are well-documented on the forum, with strong reports of chassis quality but consistent warnings about service complexity.
Drive system and range. The Bosch Performance Line CX Gen 4 brings 85 Nm of torque and uses the SmartSystem with a removable 750 Wh PowerTube. A user named pdrew reports achieving 850 km of cumulative range on a Scott Patron eRide with the 750 Wh pack: solid long-term distance data. Scott's TwinLoc handlebar remote integrates with the Fox NUDE T shock to give three on-the-fly settings (Lockout, Traction Control, Descend) on the higher 900 trim. @NeilJPatron documents the related ST Tuned variant with Bosch CX-Race motor delivering 85 Nm "instantly with a quarter turn of crank" in Race mode, useful and dangerous in equal measure for new riders.
Geometry and handling. A 65 degree head angle is moderate by 2024 standards, steeper than the typical 64.5 degree mainstream enduro norm. Reach steps 433 mm on S, 446 mm on M (note: an unusually small jump of 13 mm to M is the standout), 474 mm on L and 501 mm on XL. The 454 mm chainstay is held constant across all sizes. Wheelbase 1218 to 1306 mm. @Swissrider notes the Patron's geometry is closer to a Kenevo and away from the longer Trek Rail proportions: useful for shorter riders who don't want to be stretched. With 170 mm of fork and 160 mm of rear travel, the Patron is positioned as a long-travel enduro tool rather than a quick-handling trail bike.
Build and value. Two trims. The 910 at £6349, 26.2 kg, with Fox 38 Float Performance fork, Float EVOL eRIDE shock with TwinLoc, Shimano SLX BR-M7120 four-piston brakes and SRAM GX Eagle AXS. The 900 at £7299, 24.6 kg, steps up to Fox 38 Float Performance Elite eMTB+ with FIT4 damper, Fox NUDE T eRIDE custom-tuned with TwinLoc, Shimano XT BR-M8120 four-piston brakes with Ice-Tech pads and Ice-Tech rotors and a mixed SRAM Eagle X01/GX/NX drivetrain. The 900 is the value pick: 1.6 kg lighter, better suspension, better brakes for £950 extra. Note: @NeilJPatron records the related ST Tuned at £10500 RRP for the top-tier integrated Syncros cockpit and Kiox 300 display.
Community-verified strengths. Three things owners praise. The TwinLoc system is genuinely useful for technical climbs into long descents: the on-the-fly Lockout/Traction Control/Descend lever is an active rather than passive feature. Range is solid: pdrew's 850 km cumulative on a 750 Wh pack supports the bike's real-world long-distance brief. And the chassis quality stays well-engineered: @NeilJPatron progressed from blue to red trails as confidence built on the platform.
Caveats and known gripes. Three honest flags. Internal cable routing on the Patron has been a sore point. @MartinFa documents that gear-cable replacement requires dropping the motor out of the frame: a real workshop time-sink. @dotcodotuk notes the Patron uses thinner-than-standard Jagwire housings for shift cables. @Excalibur's SX-to-NX shifter upgrade is a common fix path: factor in that the stock SRAM SX shifter on the 910 feels vague and many owners upgrade. And the Bosch Gen 4 motor (not Gen 5) is now last-generation: buyers should weigh the bike against a Gen 5-equipped rival at a similar price.
Verdict. The Scott Patron eRIDE 2024 is for the rider who wants a properly equipped Bosch SmartSystem enduro eMTB with Scott's TwinLoc on-the-fly suspension control and a 750 Wh removable battery, and is happy with Gen 4 motor and complex internal cabling at this price point. If you want the latest Bosch CX Gen 5 or simpler workshop access, look at a Cannondale Moterra LT, Cube Stereo Hybrid 160 or Specialized Levo. Production status is current.
Frame
Patron eRIDE Carbon HMF mainframe with Alloy SST CST-Link swingarm; Virtual 4-Link kinematic (VLK); 160mm rear travel; Boost 148x12mm UDH; 1.8" tapered headtube with central kickstand mount; clearance for 29x2.6" tyres; Bosch SmartSystem integrated, removable battery.
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 433 mm | 446 mm | 474 mm | 501 mm |
| Stack | 635 mm | 642 mm | 651 mm | 660 mm |
| Chainstay | 454 mm | 454 mm | 454 mm | 454 mm |
| Headtube Angle | 65° | 65° | 65° | 65° |
| Seattube Angle (eff) | 76.9° | 76.9° | 76.9° | 76.9° |
| Wheelbase | 1218 mm | 1236 mm | 1271 mm | 1306 mm |
| Front Centre | 764 mm | 782 mm | 817 mm | 852 mm |
Trims · 3
920 £5,100 | 910 £6,349 | 900 £7,299 | |
|---|---|---|---|
| Motor | — | Bosch Performance Line CX Gen 4 | Bosch Performance Line CX Gen 4 |
| Battery | — | Bosch PowerTube 750Wh · 750 Wh | Bosch PowerTube 750 · 750 Wh |
| Travel F/R | 170/160 mm · all trims | ||
| Frame | Carbon · all trims | ||
| Fork | RockShox Domain Air, 15x110mm QR axle, 1.8" Tapered Steerer | FOX 38 Float Performance, FIT GRIP damper, 15x110mm QR, 44mm offset, 1.8" tapered steerer, 160mm travel | FOX 38 Float Performance Elite eMTB+, FIT4 damper, 3-mode with low-speed adjuster and rebound, 15x110mm QR, 44mm offset, tapered steerer, 160mm travel |
| Shock | FOX Float EVOL eRIDE Trunnion 205x60mm | FOX Float EVOL eRIDE Trunnion with TwinLoc handlebar remote, 160mm travel | FOX NUDE T eRIDE EVOL Trunnion mount, custom-tuned with TwinLoc handlebar remote (Lockout / Traction Control / Descend), 160mm travel |
| Headset | Acros, 1.8" ZS66 OD74 | Acros AZX-1051 ZS66/OD74 1.8" integrated | Acros AZX-1051 ZS66/OD74 1.8" integrated |
| Stem | Syncros AM2.0, 6061 Alloy 31.8mm, 4°, 1 1/8" | Syncros Hixon 2.0 alloy stem (integrated cable routing) | Syncros Hixon iC SL integrated carbon stem (one-piece with handlebar) |
| Handlebar | Syncros Hixon 2.0 Alloy 6061 D.B., 12mm rise, 9°, 780mm | Syncros Hixon 2.0 Rise, 6061 alloy, 780mm width, 20mm rise, 8 degree sweep | Syncros Hixon iC SL integrated carbon handlebar/stem, 780mm width |
| Grips | Syncros Endurance lock-on grips | Syncros Pro lock-on | Syncros lock-on |
| Saddle | Syncros Tofino 2.5 Regular | Syncros Tofino eRIDE 2.0 | Syncros Tofino eRIDE 1.5 |
| Seatpost | Syncros Duncan Dropper Post 2.5 | FOX Transfer Performance dropper, 31.6mm (S 125mm / M 150mm / L 175mm / XL 200mm) | FOX Transfer Factory Kashima dropper, 31.6mm (S 125mm / M 150mm / L 175mm / XL 200mm) |
| Brakes | SRAM DB8 4 Piston Disc, SRAM Centerline CL Rotors 200mm F&R | Shimano SLX BR-M7120 4-piston hydraulic disc with 203mm rotors front and rear | Shimano XT BR-M8120 4-piston hydraulic disc with Ice-Tech finned pads, 200mm Ice-Tech rotors front and rear |
| Rear derailleur | Shimano XT, 12 Speed | SRAM GX Eagle AXS, 12-speed wireless electronic | SRAM X01 Eagle, 12-speed mechanical |
| Crank | FSA CK-745, 165mm, 34T | Bosch CX e-MTB crank with 34T chainring, 165mm | Bosch CX e-MTB crank with 34T chainring, 165mm |
| Shifters | Shimano SL-M6100 | SRAM AXS Pod wireless controller | SRAM GX Eagle, 12-speed |
| Cassette | Shimano CS-M6100, 10-51T | SRAM GX Eagle XG-1275, 10-52T, 12-speed | SRAM GX Eagle XG-1275, 10-52T, 12-speed |
| Chain | Shimano CN-M6100 | SRAM GX Eagle 12-speed | SRAM NX Eagle 12-speed |
| Drivetrain | Bosch Performance Line CX (85Nm), 800Wh | SRAM GX Eagle AXS 1x12 wireless electronic | SRAM Eagle 1x12 mechanical |
| Wheels | Shimano HB-MT410-B CL front hub / Shimano FH-MT410-B CL Boost 12x148mm rear hub, Syncros MD30 rims | Syncros MD30 29" wheelset, Boost 15x110/12x148, tubeless-ready | Syncros Revelstoke E 1.5 CL 29" wheelset, Boost, tubeless-ready |
| Tyres | Maxxis Dissector 29x2.6 120TPI Foldable Bead EXO+ / TR (front + rear) | Maxxis Assegai 29x2.5" 3C MaxxGrip EXO+ TR front / Maxxis Dissector 29x2.6" 3C MaxxTerra EXO+ TR rear | Maxxis Assegai 29x2.5" 3C MaxxGrip EXO+ TR front / Maxxis Dissector 29x2.6" 3C MaxxTerra EXO+ TR rear |
| Weight | 25.8 kg | 26.2 kg | 24.6 kg |
| Price | £5,100 | £6,349 | £7,299 |
