A solid all-round descender (65° head angle, 160mm) — capable in the rough and steep without being an all-out bruiser.
R.E750 2023
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

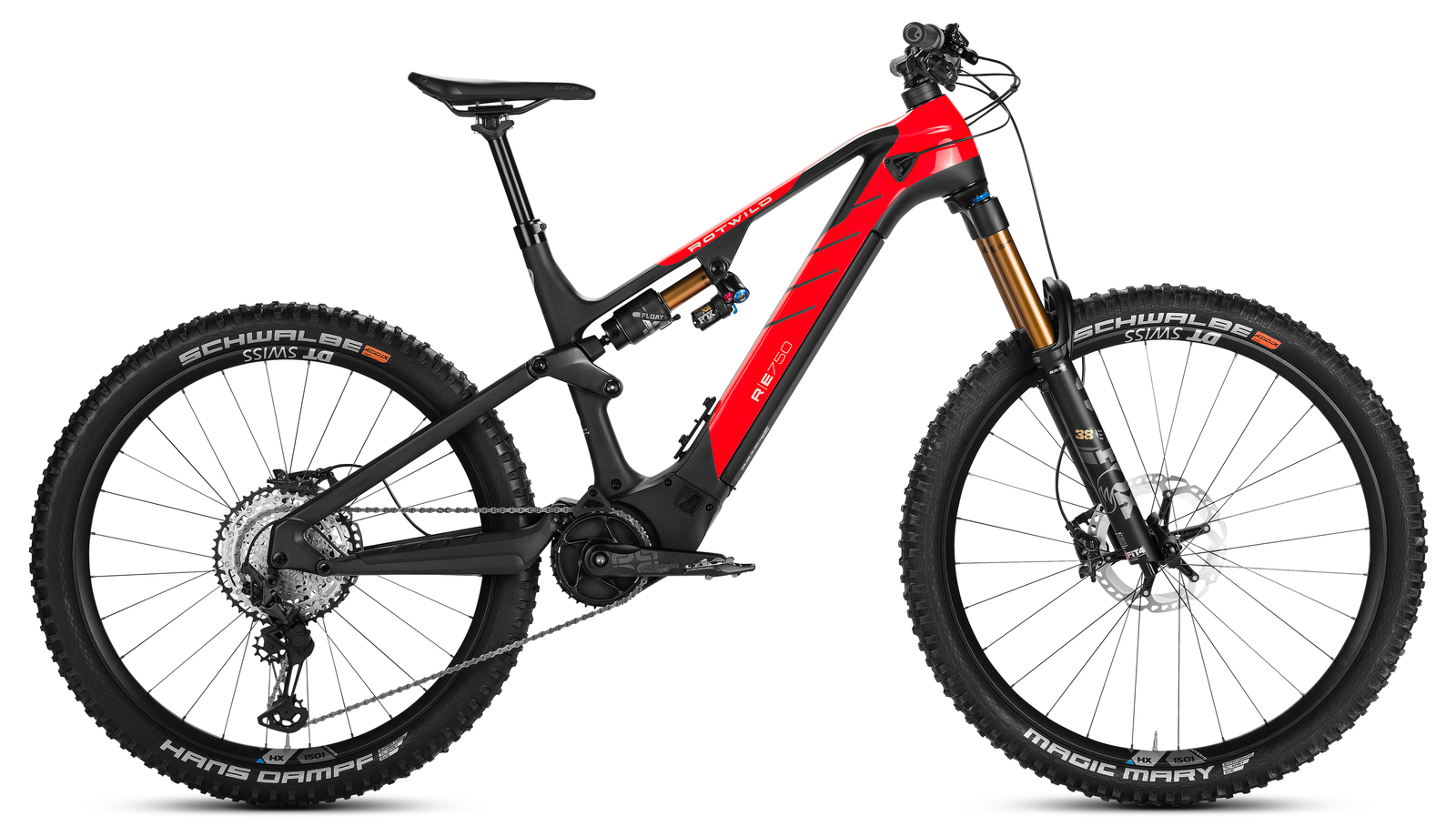

Mixed-wheel carbon enduro with quiet, torquey Brose power

The Rotwild R.E750 was the German marque's full carbon enduro flagship, sitting at the heavy-hitting end of its Extensive Series. It ran 170 mm of Fox 38 travel up front and 160 mm at the rear on an MX (29F / 27.5R) wheel package, with a slack 65 degree head angle, 445 mm chainstays across every size and a 130 kg system weight rating, marking it out as a stability-first descender rather than an all-rounder.
Power came from the quiet, compact Brose Drive S Mag delivering up to 90 Nm, paired with Rotwild's removable IPU750 pack rated at 720 Wh despite the 750 badge. The PRO upgraded to a weight-optimised carbon battery housing (3.5 kg versus the CORE's 3.8 kg aluminium unit). Two builds were offered: the CORE at 7,999 EUR on Fox Performance suspension, Magura MT5 brakes and DT Swiss H1900 wheels, and the PRO at 9,499 EUR stepping up to Fox Factory Kashima suspension, Shimano XT brakes and DT Swiss HX1501 wheels. Both shared the same Shimano XT 12-speed transmission, e*thirteen finishing kit and Schwalbe Magic Mary / Hans Dampf rubber, so the premium buys lighter, more tunable suspension and a lighter battery rather than a different bike.
Geometry is on the long and roomy side for the era, running from a 395 mm reach in S to 490 mm in XL with a consistent 73.5 degree effective seat angle, while the short bridgeless rear end keeps the handling lively for a 170/160 mm machine. It is a focused, fast colourway in Burning Red over raw carbon.
The R.E750 is now discontinued, superseded in Rotwild's enduro line by the lighter, Shimano powered R.E735 generation. As a used buy it remains a capable carbon enduro eMTB, though the Brose motor and 720 Wh capacity now trail the latest full-power platforms.
What the numbers mean on the trail
Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.
A fair bit of pop, but happiest on flowing trail rather than trials moves.
Rear-long with a planted front in L (FC:RC 1.80) — easy to weight the front and quick to turn, though it can feel light at the back at real speed.
Climbs well — a 73.5° seat keeps the front planted. 560W of peak power and 90Nm of torque — a strong full-power motor.
No single standout trait — a balanced, versatile bike.
The numbers are well balanced for its category.
How it stacks up vs other Full Power · Enduro bikes (from 160 bikes in the database)
Geometry · hover a row to highlight the measurement on the bike
| S | M | L | XL | |
|---|---|---|---|---|
| Reach | 395 mm | 428 mm | 459 mm | 490 mm |
| Stack | 616 mm | 624 mm | 644 mm | 655 mm |
| Seattube | 413 mm | 444 mm | 473 mm | 509 mm |
| Chainstay | 445 mm | 445 mm | 445 mm | 445 mm |
| Headtube Angle | 65° | 65° | 65° | 65° |
| Seattube Angle (eff) | 73.5° | 73.5° | 73.5° | 73.5° |
| Wheelbase | 1180 mm | 1206 mm | 1244 mm | 1278 mm |
| Headtube | 110 mm | 110 mm | 130 mm | 140 mm |
| BB Height | 355 mm | 355 mm | 355 mm | 355 mm |
| Standover | 765 mm | 765 mm | 765 mm | 765 mm |
| Front Centre | 735 mm* | 761 mm* | 799 mm* | 833 mm* |
| FC:RC | 1.65 | 1.71 | 1.80 | 1.87 |
Trims · 2
Core €7,999 | Pro €9,499 | |
|---|---|---|
| Motor | Brose Drive S Mag · 90 Nm · all trims | |
| Battery | Rotwild IPU 720Wh · 720 Wh · all trims | |
| Travel F/R | 170/160 mm · all trims | |
| Frame | Carbon · all trims | |
| Fork | Fox 38 Float Performance, 170 mm / Fit Grip / 3-POS Micro Adjust / E-Bike+ / OD-Crown / Kabolt | Fox 38 Float Factory Kashima, 170 mm / Fit Grip2 / HSC/LSC HSR/LSR / E-Bike+ / OD-Crown / Kabolt |
| Shock | Fox Float X2 Performance, 230 x 65 mm / LSC/LSR 2-POS Lever | Fox Float X2 Factory Kashima, 205 x 65 mm / HSC/LSC HSR/LSR 2-POS Lever |
| Headset | ACROS RW750 1.5 Headset, w/ Blocklock · all trims | |
| Stem | e*thirteen Plus, O35 mm / 50 mm / AL7050 I.C.R. · all trims | |
| Handlebar | e*thirteen Plus, O35 mm / 20 mm Rise / 780 mm Width / AL7050 I.C.R · all trims | |
| Grips | ERGON GD10, Slim Factory Frozen · all trims | |
| Saddle | ERGON SM · all trims | |
| Seatpost | e*thirteen Vario Covert Infinite, individual up to 260 mm (XL) · all trims | |
| Brakes | MAGURA MT5 HC-W | SHIMANO XT 8120, Fin Pad |
| Rear derailleur | Shimano XT 8100, 12-Speed / SGS / Hyperglide+ · all trims | |
| Crank | e*thirteen Plus, 165 mm (S, M) / 170 mm (L, XL) | e*thirteen Plus, 160 mm (S, M) / 165 mm (L, XL) |
| Shifters | SHIMANO XT, I-Spec EV · all trims | |
| Cassette | SHIMANO CS 6100, 10-51 t. / 12-Speed | SHIMANO CS 7100, 10-51 T. / 12-Speed |
| Chain | SHIMANO HG 7100, 12-Speed · all trims | |
| Drivetrain | Shimano XT 8100, 12-Speed / SGS / Hyperglide+; e*thirteen Plus, 165 mm (S, M) / 170 mm (L, XL); SHIMANO XT, I-Spec EV; SHIMANO CS 6100, 10-51 t. / 12-Speed; SHIMANO HG 7100, 12-Speed | Shimano XT 8100, 12-Speed / SGS / Hyperglide+; e*thirteen Plus, 160 mm (S, M) / 165 mm (L, XL); SHIMANO XT, I-Spec EV; SHIMANO CS 7100, 10-51 T. / 12-Speed; SHIMANO HG 7100, 12-Speed |
| Wheels | DT SWISS H1900 Spline (30), Ratchet LN 18 / 110-15/148-12 TAS / 6-Bolt | DT SWISS HX1501 SPLINE1 (30), Ratchet EXP OS 30 / 110-15/148-12 TAS / CL |
| Tyres | SCHWALBE Magic Mary / Hans Dampf, EVO Super Ground / Trail TLE Soft / 29 x 2.40 / 27.5 x 2.60 · all trims | |
| Price | €7,999 | €9,499 |
