Fantic

XTF 1.5 2023

Discontinued✎Full Power · TrailLegacy · 0.2/10iFreshness 0.2/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Brose Drive S Mag · 90Nm · 560W↗

Battery

Fantic Integra 630Wh

Travel F/R

150/150mm

Wheels

29F / 29R✎

Frame

Aluminium✎

Weight

—✎

Price

£4,399✎

View the Fantic XTF 1.5 on Fantic’s site

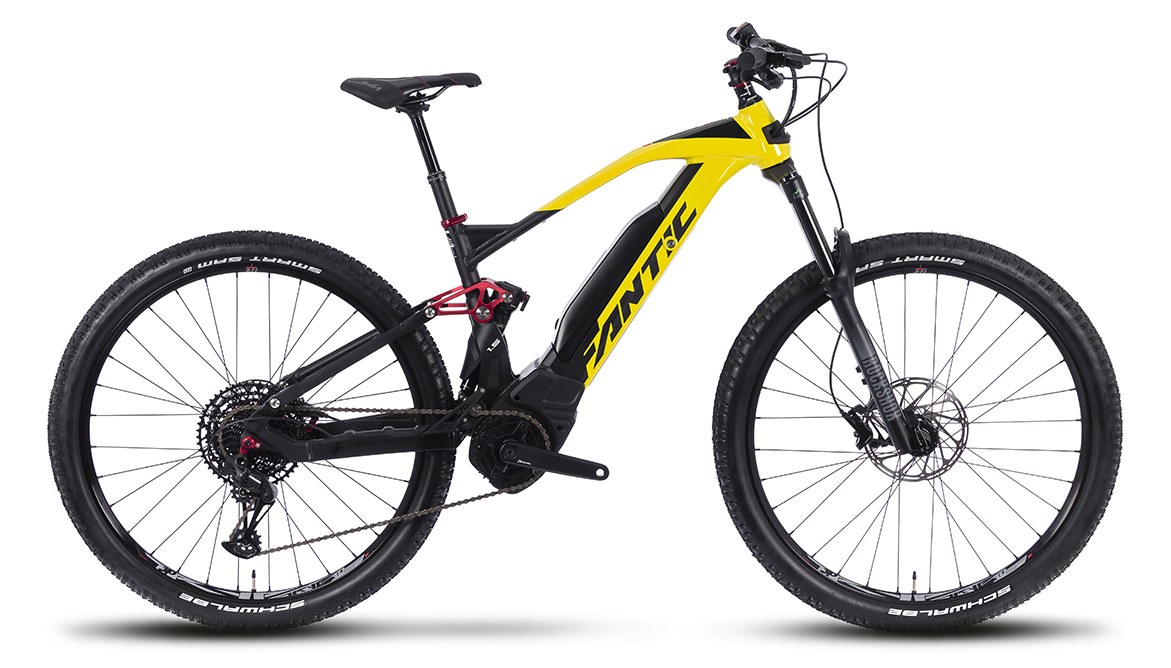

Fantic XTF 1.5 2023

From £4,399

The 2023 Fantic XTF 1.5 was the entry point into the Italian brand's full-suspension trail line, built around a hydroformed aluminium frame with 150mm of travel front and rear via Fantic's full-float linkage-driven single-pivot rear end. Power came from a Fantic-branded Brose mid-drive rated at 90Nm, fed by an integrated 630Wh Fantic Integra battery and controlled through the Brose All Round 4 display.The build is sensibly utilitarian rather than flashy: a RockShox Recon Silver RL fork and Deluxe Select air shock, SRAM SX Eagle 12-speed shifting, SRAM Level 2-piston brakes on 200/180mm rotors, and Schwalbe Smart Sam 2.4in tyres on Rodi BlackJack rims. It was offered in three sizes (S, M, L) with a relaxed 66 to 66.5 degree head angle and a 73 degree seat angle.UK pricing was set at GBP 4,399, sitting it below the higher-specced XTF 1.5 Race and the Brose-powered XTF 1.5 Carbon, as well as the Yamaha-powered All Track and Sport-Y variants in the same family. As an alloy, mid-power trail platform it prioritised value and approachability over light weight or premium kit.This model year is discontinued; Fantic has since moved the range onto the Shopify-based current catalogue and revised the XTF 1.5 in later years. Specifications here are taken from the archived 2023 manufacturer page and a UK Fantic dealer listing.

EMTB Forums verdict

The 2023 Fantic XTF 1.5 was the entry point into the Italian brand's full-suspension trail line, built around a hydroformed aluminium frame with 150mm of travel front and rear via Fantic's full-float linkage-driven single-pivot rear end. Power came from a Fantic-branded Brose mid-drive rated at 90Nm, fed by an integrated 630Wh Fantic Integra battery and controlled through the Brose All Round 4 display.

The build is sensibly utilitarian rather than flashy: a RockShox Recon Silver RL fork and Deluxe Select air shock, SRAM SX Eagle 12-speed shifting, SRAM Level 2-piston brakes on 200/180mm rotors, and Schwalbe Smart Sam 2.4in tyres on Rodi BlackJack rims. It was offered in three sizes (S, M, L) with a relaxed 66 to 66.5 degree head angle and a 73 degree seat angle.

UK pricing was set at GBP 4,399, sitting it below the higher-specced XTF 1.5 Race and the Brose-powered XTF 1.5 Carbon, as well as the Yamaha-powered All Track and Sport-Y variants in the same family. As an alloy, mid-power trail platform it prioritised value and approachability over light weight or premium kit.

This model year is discontinued; Fantic has since moved the range onto the Shopify-based current catalogue and revised the XTF 1.5 in later years. Specifications here are taken from the archived 2023 manufacturer page and a UK Fantic dealer listing.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (66.5° head angle, 150mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

A fair bit of pop, but happiest on flowing trail rather than trials moves.

Size balance

Not enough geometry on record to judge size balance.

Technical climbing

A workmanlike climber — expect to put in more rider effort on the steep stuff. 560W of peak power and 90Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forClimbing leans on the rider more than the motor.

Lower torque or a slacker seat angle — fine, just don't expect a winch.

How it stacks up vs other Full Power · Trail bikes (from 245 bikes in the database)

Battery630 Wh74 Wh below average

Motor torque90 Nm8 Nm below average

Value for money64/100from £4,399 · comparable bikes ~£4,860

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L
Reach	407 mm	433 mm	453 mm
Stack	573 mm	602 mm	627 mm
Seattube	390 mm	430 mm	490 mm
Headtube Angle	66°	66°	66.5°
Seattube Angle (eff)	73°	73°	73°
Wheelbase	1193 mm	1224 mm	1244 mm
Standover	—	—	642 mm

Trims · 1

	Base £4,399
Motor	Brose Drive S Mag · 90 Nm
Battery	Fantic Integra 630Wh · 630 Wh
Travel F/R	150/150 mm
Frame	Aluminium
Fork	RockShox RECON Silver RL e-bike 29" 150mm
Shock	RockShox Deluxe Select T205x57,5 Air
Stem	GBC alloy stem, 60mm, +/-8 degrees, Oe31.8
Handlebar	GBC alloy handlebar, 760mm, rise 20mm
Saddle	Selle Italia Model-X Comfort Superflow 145
Seatpost	Promax telescopic dropper SP-2038 Oe30.9, 80mm (size S) / 100mm (sizes M-L)
Brakes	SRAM LEVEL 2-piston hydraulic disc, front and rear, with SRAM CenterLine rotors (200mm front / 180mm rear, 6-hole)
Rear derailleur	SRAM SX Eagle 12V
Crank	Miranda Delta Isis Q 165mm, with SRAM 34t Steel Eagle chainring
Shifters	SRAM SX E-click
Cassette	SRAM SX Eagle 12V, 11-50
Chain	SRAM SX Eagle 12V
Drivetrain	SRAM SX Eagle 12V; Miranda Delta Isis Q 165mm, with SRAM 34t Steel Eagle chainring; SRAM SX E-click; SRAM SX Eagle 12V, 11-50; SRAM SX Eagle 12V
Wheels	Rodi BlackJack TRIP30 wheels
Tyres	Schwalbe Smart Sam 29" x 2.4 (front and rear)
Price	£4,399
