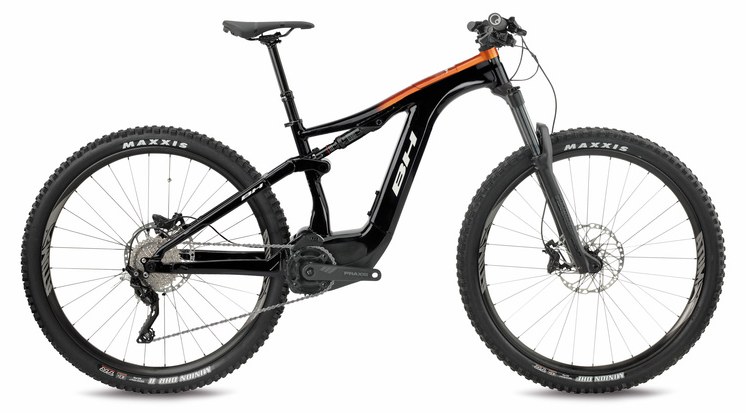

AtomX Lynx Pro 2023

Discontinued✎Full Power · TrailLegacy · 0.2/10iFreshness 0.2/10
How current the bike is — newer chassis, motor and battery score higher. 10 = brand-new, 0 = legacy.

Motor

Brose Drive S Mag · 90Nm · 560W↗

Battery

BH ATOMX integrated 720Wh

Travel F/R

140/140mm

Wheels

29F / 29R✎

Frame

Carbon front, aluminium rear✎

Weight

—

Price

From £5,700

View the BH AtomX Lynx Pro on BH’s site

BH AtomX Lynx Pro 2023

From £5,699

The BH AtomX Lynx Pro is the trail-oriented build of BH's AtomX Lynx platform for 2023, running 140mm of travel front and rear on 29in wheels. The frame is the AtomX Lynx carbon chassis with an alloy rear triangle (BH lists it verbatim as '140mm Full Susp. Carbon 29in Internal Cable Routing, Acros ICR / Alloy Rear Triangle'), which sits a step below the full-carbon AtomX Lynx Carbon Pro models that share the same 140mm travel but use a full-carbon back end. Power comes from the Brose S Mag motor, badged by BH under its 'X System', a magnesium-bodied unit rated at 90 Nm fed by a 720Wh integrated battery with a claimed range of up to 155 km.Geometry is sensible rather than extreme for the era: a 66 degree head angle, 77 degree seat angle, 455mm chainstays across the range and reach from 428mm (S) to 490mm (XL), with stack climbing from 603mm to 630mm. Two trims were offered. The 8.2 (£5,699.90) pairs a RockShox Recon RL fork and Deluxe shock with an 11-speed Shimano Deore drivetrain and MT420 four-piston brakes on 203mm rotors. The 8.4 (£6,299.90) steps up to a FOX 34 Float Rhythm fork, FOX Float DPS Performance shock and a 12-speed cassette, sharing the same four-piston brakes and BH finishing kit.This bike is discontinued. BH rebranded the AtomX Lynx line to the iLynx range from 2024 onwards, so the 2023 AtomX Lynx Pro is the last of the AtomX-badged trail bikes. Anyone cross-shopping it today should note it is a carbon-front bike with an alloy back end, not a full-alloy frame, and that the later iLynx supersedes it.

EMTB Forums verdict

The BH AtomX Lynx Pro is the trail-oriented build of BH's AtomX Lynx platform for 2023, running 140mm of travel front and rear on 29in wheels. The frame is the AtomX Lynx carbon chassis with an alloy rear triangle (BH lists it verbatim as '140mm Full Susp. Carbon 29in Internal Cable Routing, Acros ICR / Alloy Rear Triangle'), which sits a step below the full-carbon AtomX Lynx Carbon Pro models that share the same 140mm travel but use a full-carbon back end. Power comes from the Brose S Mag motor, badged by BH under its 'X System', a magnesium-bodied unit rated at 90 Nm fed by a 720Wh integrated battery with a claimed range of up to 155 km.

Geometry is sensible rather than extreme for the era: a 66 degree head angle, 77 degree seat angle, 455mm chainstays across the range and reach from 428mm (S) to 490mm (XL), with stack climbing from 603mm to 630mm. Two trims were offered. The 8.2 (£5,699.90) pairs a RockShox Recon RL fork and Deluxe shock with an 11-speed Shimano Deore drivetrain and MT420 four-piston brakes on 203mm rotors. The 8.4 (£6,299.90) steps up to a FOX 34 Float Rhythm fork, FOX Float DPS Performance shock and a 12-speed cassette, sharing the same four-piston brakes and BH finishing kit.

This bike is discontinued. BH rebranded the AtomX Lynx line to the iLynx range from 2024 onwards, so the 2023 AtomX Lynx Pro is the last of the AtomX-badged trail bikes. Anyone cross-shopping it today should note it is a carbon-front bike with an alloy back end, not a full-alloy frame, and that the later iLynx supersedes it.

Geometry read

What the numbers mean on the trail

Computed from this bike's geometry, spec and build kit — reach, wheelbase, chainstay, head and seat angles, travel, motor, weight and the fork/tyre/brake spec — and worked out per size, because a fixed chainstay can make an S and an XL feel very different.

Size

Descending

A solid all-round descender (66° head angle, 140mm) — capable in the rough and steep without being an all-out bruiser.

Playfulness

More planted than poppy — better on steep terrain than tight, fiddly singletrack.

Size balance

Not enough geometry on record to judge size balance.

Technical climbing

Climbs well — a 77° seat keeps the front planted. 560W of peak power and 90Nm of torque — a strong full-power motor.

Best suited toAll-round trail riding across mixed terrain.

No single standout trait — a balanced, versatile bike.

Watch out forNot a flickable, playful bike — built to plough, not pop.

Brilliant on fast, rough, steep terrain; less fun on tight, mellow trails.

How it stacks up vs other Full Power · Trail bikes (from 246 bikes in the database)

Battery720 Whabout average capacity

Motor torque90 Nm8 Nm below average

Value for money68/100from £5,700 · most Brose Drive S Mag bikes ~£6,499

Computed from geometry + spec, not a paid review. Scores are guidance, not gospel.

Paste into any thread to embed this live, interactive panel.

Geometry · hover a row to highlight the measurement on the bike

	S	M	L	XL
Reach	428 mm	455 mm	475 mm	490 mm
Stack	603 mm	607 mm	616 mm	630 mm
Seattube	410 mm	420 mm	440 mm	480 mm
Chainstay	455 mm	455 mm	455 mm	455 mm
Headtube Angle	66°	66°	66°	66°
Seattube Angle (eff)	77°	77°	77°	77°
Headtube	100 mm	100 mm	110 mm	125 mm
BB Height	340 mm	340 mm	340 mm	340 mm

Trims · 2

	Pro 8.2 £5,700	Pro 8.4 £6,300
Motor	Brose Drive S Mag · 90 Nm · all trims
Battery	BH ATOMX integrated 720Wh · 720 Wh · all trims
Travel F/R	140/140 mm · all trims
Frame	Carbon (alloy rear triangle) · all trims
Fork	Rock Shox Recon RL 140mm 15QR	FOX 34 FLOAT Rhythm 140mm 15QR
Shock	Rock Shox Deluxe Debonair	FOX FLOAT DPS Performance
Headset	Acros AZX-581 BL. · all trims
Stem	BH Evo 35 Fit · all trims
Handlebar	BH Lite 35 780mm · all trims
Grips	Ergon GE10 · all trims
Saddle	Prologo Proxim W350 Stn · all trims
Seatpost	Race Face DP Aeffect 31,6 · all trims
Brakes	Shimano MT420 4 Piston (front and rear), 203mm rotors	Shimano MT420 4 Piston (front and rear)
Rear derailleur	Shimano Deore 11sp · all trims
Crank	Praxis 34T-165mm · all trims
Shifters	Shimano Deore · all trims
Cassette	Shimano CSM5100 11sp (11-51T)	Shimano CSM6100 12sp (10-51T)
Chain	Shimano HG60	Shimano CNM6100
Drivetrain	Shimano Deore 11sp; Praxis 34T-165mm; Shimano Deore; Shimano CSM5100 11sp (11-51T); Shimano HG60	Shimano Deore 11sp; Praxis 34T-165mm; Shimano Deore; Shimano CSM6100 12sp (10-51T); Shimano CNM6100
Wheels	Race Face Ar 30 TR · all trims
Tyres	Maxxis Minion TPI120 Terra EXO TR 29"X2,5/2,4 · all trims
Price	£5,700	£6,300
